ACD2234KRS 01 – CABINET BACK

ACD2234KRS 01 – CABINET BACK

Written by

in

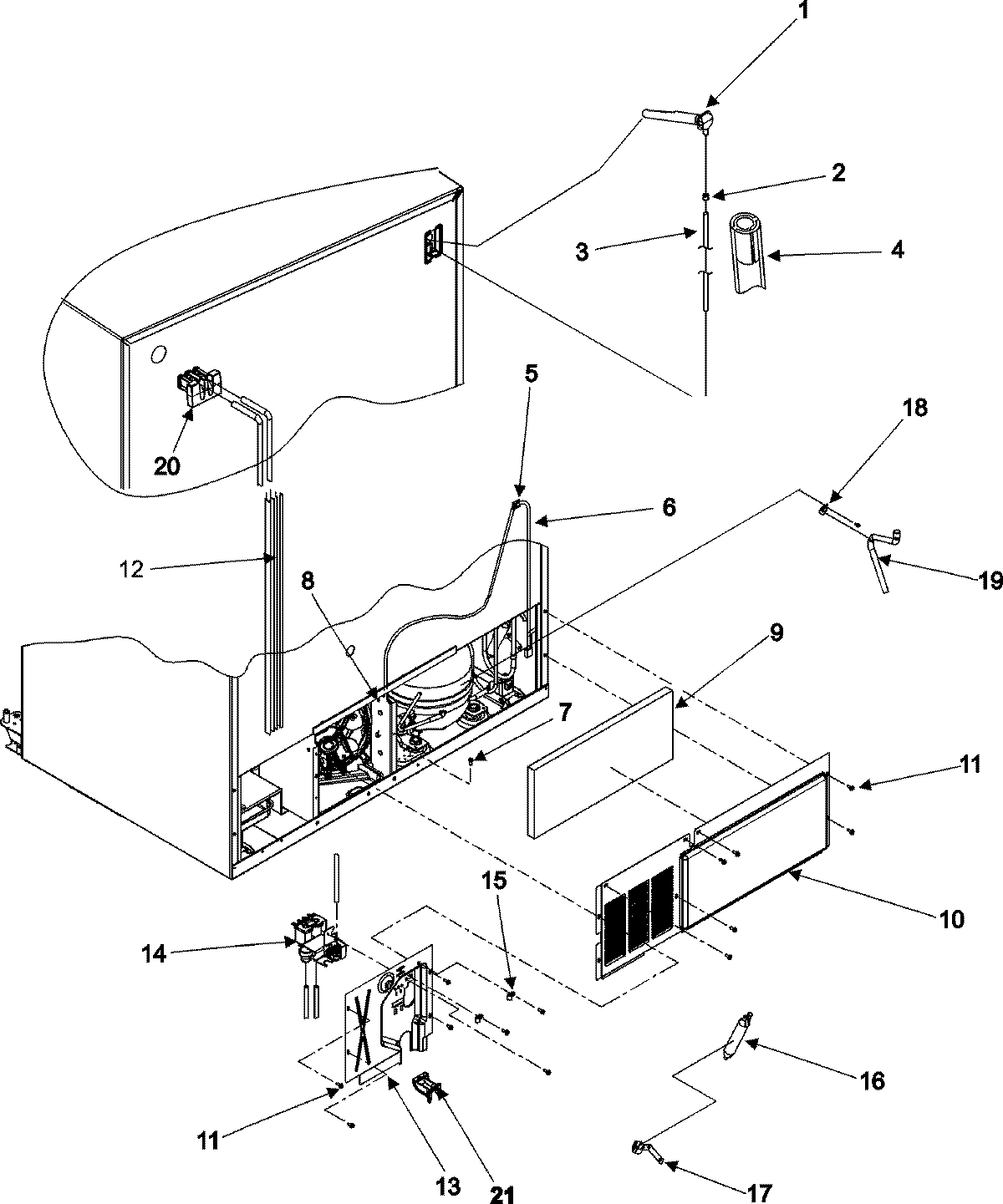

ACD2234KRS 01 – CABINET BACK

Products

PositionProduct
1MAY 67003579
2Clip
3WPB5705307 Whirlpool Refrigerator Tube
4MAY A3223101
5MAY M0104102
6WP67006506 Whirlpool Refrigerator Power Cord
7MAY 67006433
8Gasket
967003796 Whirlpool Refrigerator Fiber Acoustic
10MAY 67006101
12TRACK, WATERLINE
13Screw (10)
13MAY 67004098
14MAY 67006662
14WP67006531 Whirlpool Water Inlet Valve
15W10833902 Whirlpool Refrigerator Clamp
16DRIER
17MAY 10547003
17SCREW
18MAY 67006700
18MAY 67006615
19MAY 12580401
20WP12777701 Whirlpool Refrigerator Filler Block
2112831101 Whirlpool Refrigerator Tube Clamp
