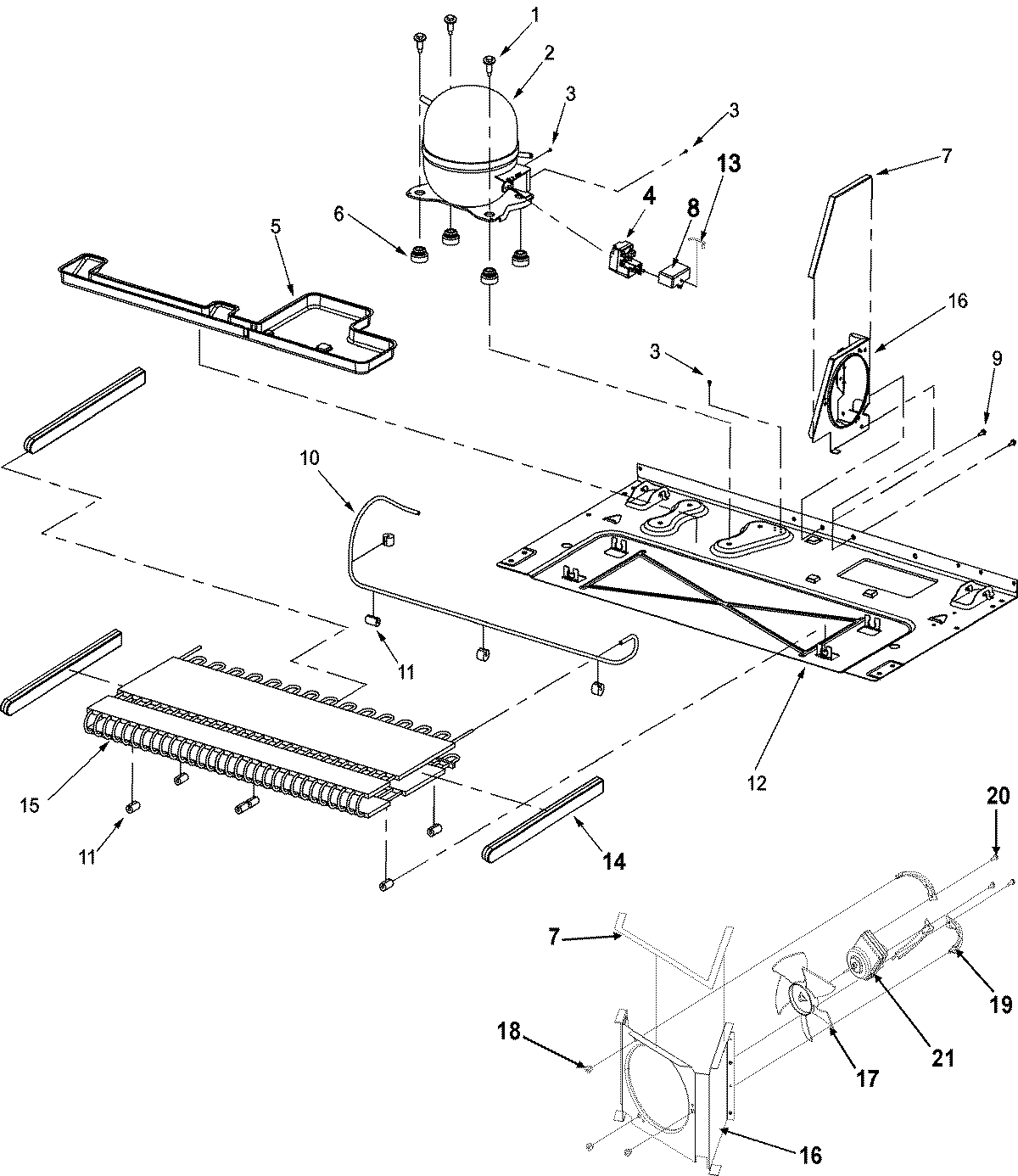

ACD2234KRS 02 – COMPRESSOR

Products

Position	Product
NI	MAY 67004324
1	MAY 67006432
2	W10309990 Whirlpool Refrigerator Compressor
3	MAY 67006433
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	WP12579803 Whirlpool Refrigerator Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	Capacitor
9	Screw (10)
10	MAY 67004700
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005889
13	MAY 67007052
14	MAY 67005491
15	WP67006131 Whirlpool Refrigerator Condenser
16	SHROUD, COND FAN
17	W10156818 Whirlpool Refrigerator Fan Blade
18	GROMMET, BRACKET
19	MAY 67004953
20	WP67004954 Whirlpool Refrigerator Screw
21	MAY 67004432
