ACD2234KRS 06 – EVAP FAN ASSY AND LIGHTS

ACD2234KRS 06 – EVAP FAN ASSY AND LIGHTS

Written by

in

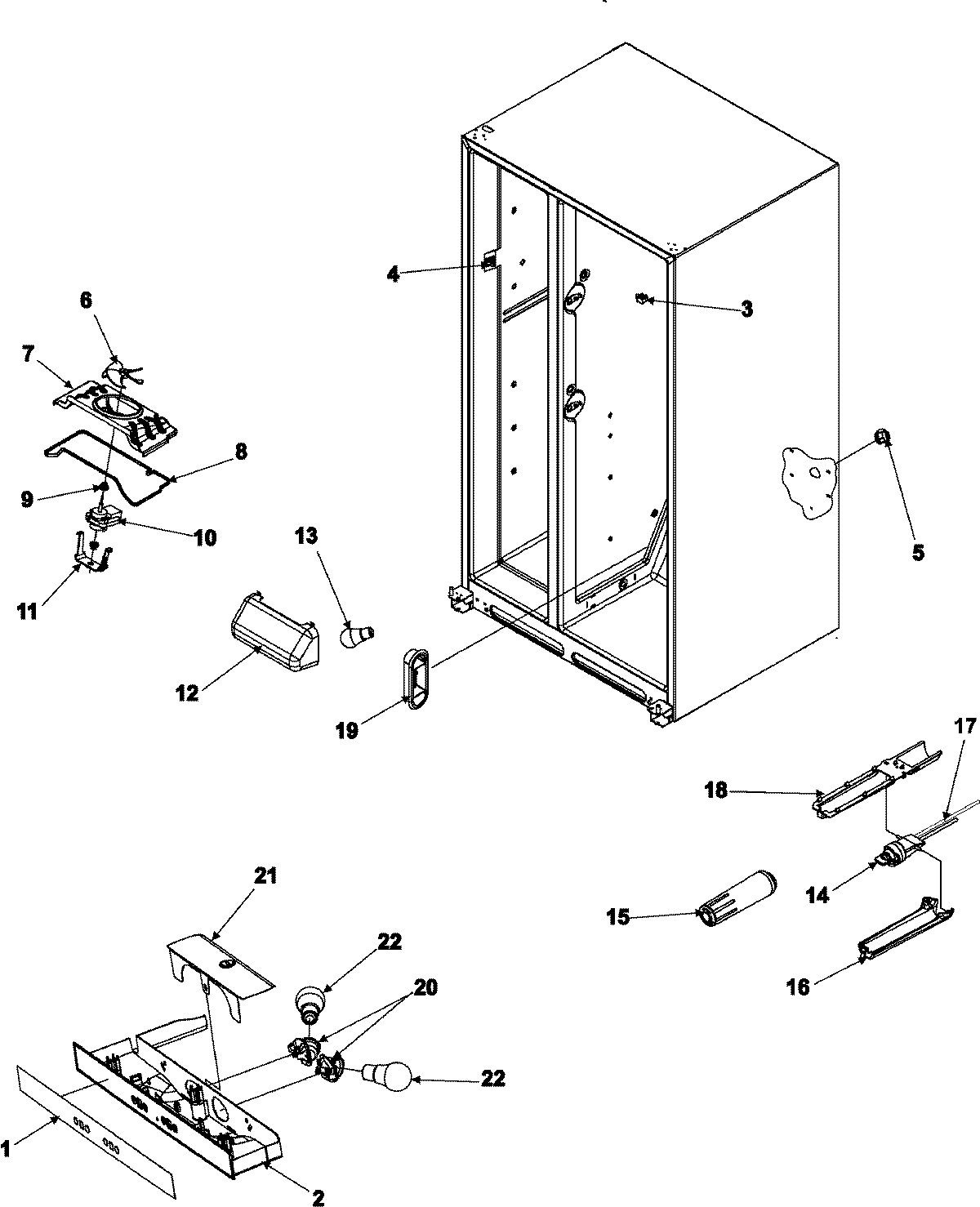

ACD2234KRS 06 – EVAP FAN ASSY AND LIGHTS

Products

PositionProduct
1MAY 67004327
2MAY 12889101
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10WPW10128551 Whirlpool Evaporator Fan Motor
12MAY 67001507
14MAY 67003146
16WP12568001 Whirlpool Filter Cover
18MAY 12688503
19MAY 12634801
20Socket, Light (2)
21MAY 67004157
22Bulb, Light (2)
