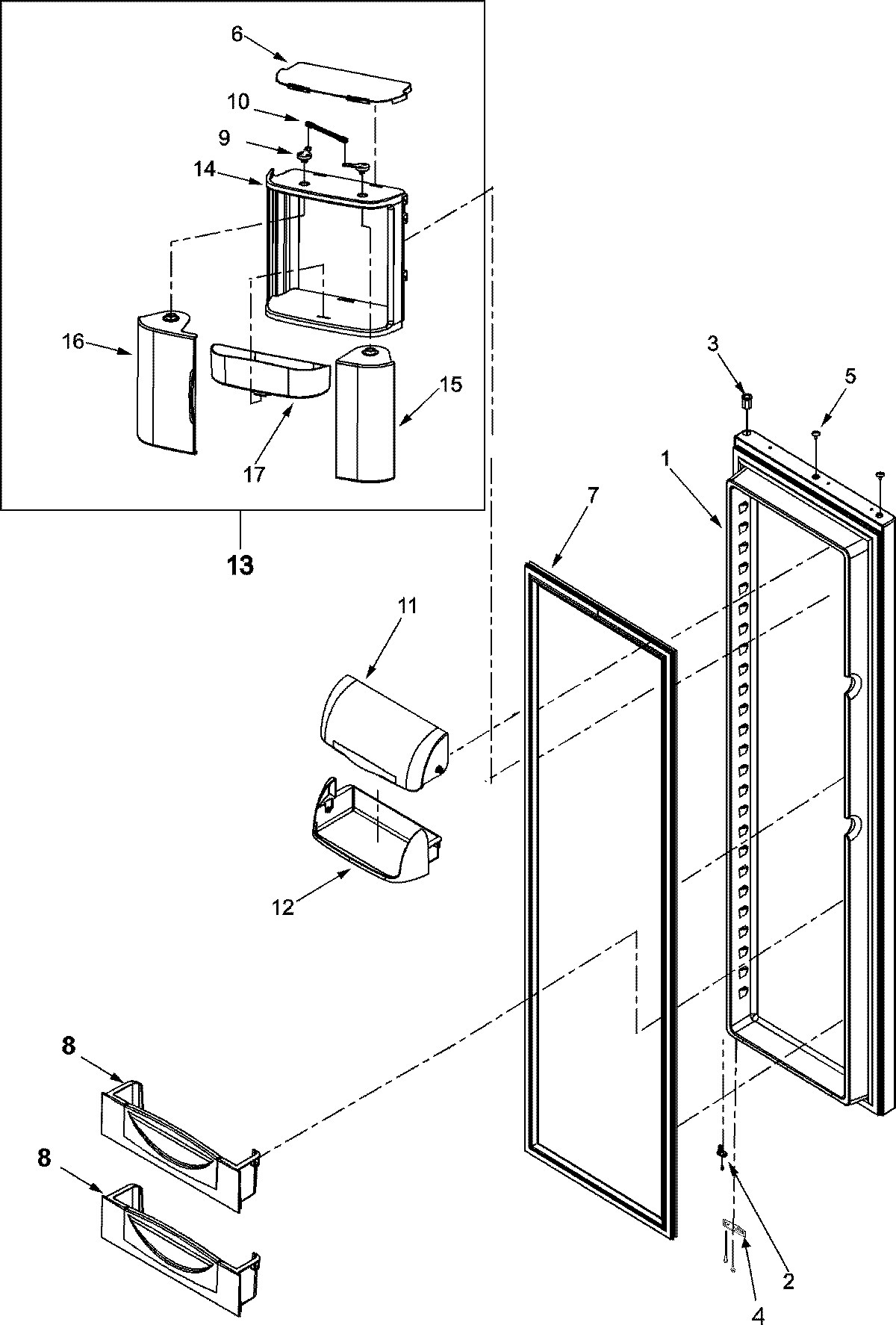

ACD2234KRS 17 – REFRIGERATOR DOOR

Products

PositionProduct
1MAY 67006822
2MAY 67006493
2SCREW
3MAY 67004976
4WP98165 Whirlpool Screw
4MAY 67007017
5MAY M0311607
6Cover, Chiller (2)
7MAY W10133482
8Bucket, Door (3)
9Linkage, Chiller (4)
10Linkage, Center Chiller (2)
11MAY 67002957
12MAY 67002304
13MAY 67004286
13MAY 67004287
14Frame, Chiller (Mini)
14Frame, Chiller (Large)
15Door Chiller (RT) (Mini)
15Door Chiller (RT) (Large)
16MAY 67004269
17MAY 67004268
