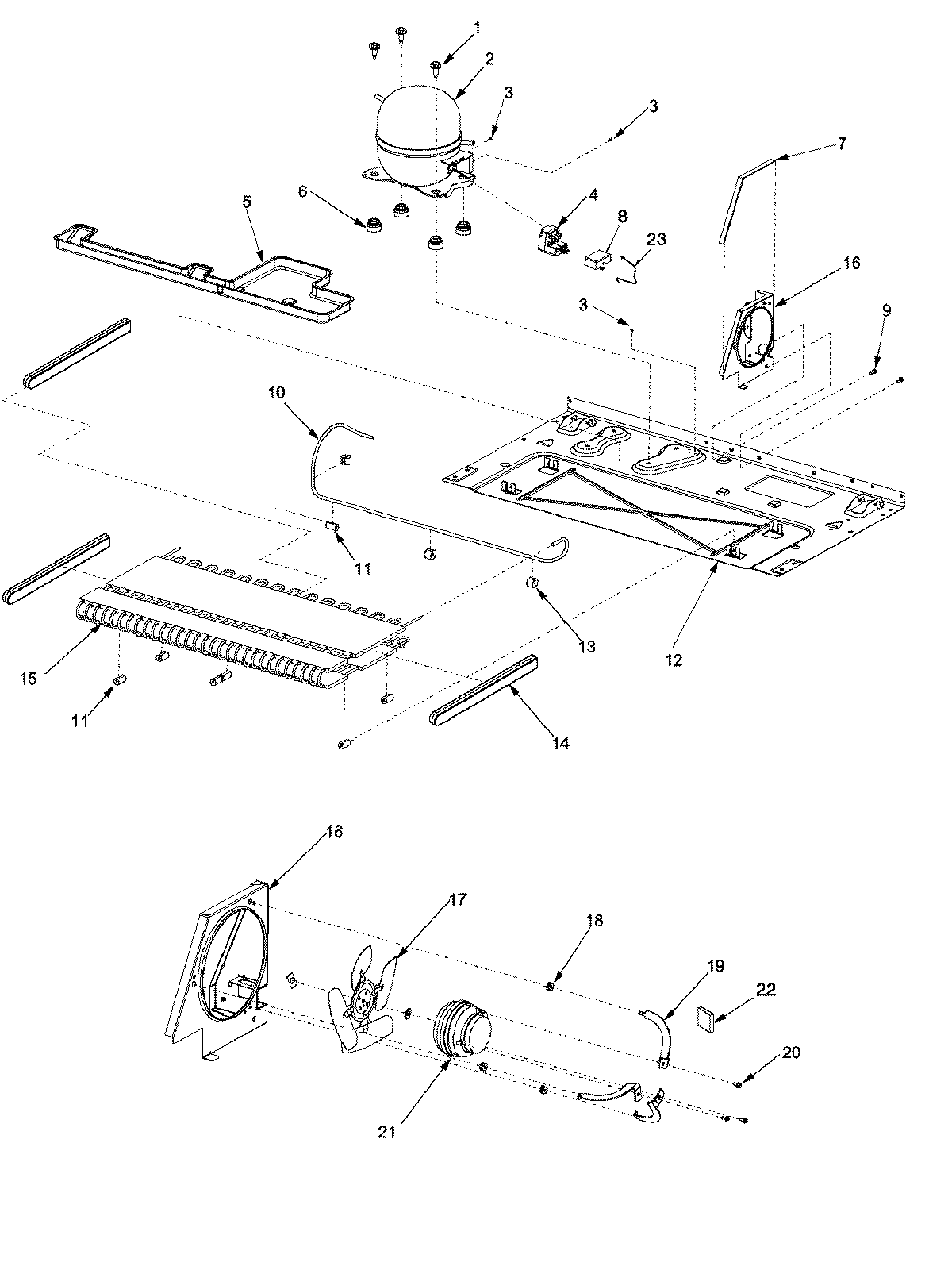

ACD2238HTS 02 – COMPRESSOR

Products

Position	Product
NI	67004955 Whirlpool Refrigerator MC Harness
NI	MAY 67004324
1	MAY 67003790
1	MAY M0221523
2	W10160407 Whirlpool Refrigerator Compressor
2	MAY 67003084
3	MAY M0231604
4	W10613606 Whirlpool Refrigerator Start Device Relay Overload
5	WP12579803 Whirlpool Refrigerator Drain Pan
6	67003493 Whirlpool Refrigerator Compressor Grommet
7	WP854334 Whirlpool Air Conditioner Sealing Strip
8	CAPACITOR
9	MAY M0238616
10	MAY 67004700
10	MAY 67002236
11	67005680 Whirlpool Refrigerator Condenser Grommet
12	MAY 67005889
12	MAY 67001512
13	MAY 10699601
14	MAY 67002235
15	MAY 67003195
15	WP67006131 Whirlpool Refrigerator Condenser
16	SHROUD, CONDENSER FAN
17	WP12587601 Whirlpool Refrigerator Condenser Blade
17	W10156818 Whirlpool Refrigerator Fan Blade
18	GROMMET, BRACKET
19	Bracket, Motor (3)
19	MAY 67004953
20	Screw (3)
21	MAY 67004432
21	833697 Whirlpool Condenser Fan Motor
22	MAY 67001096
23	MAY 12576801
