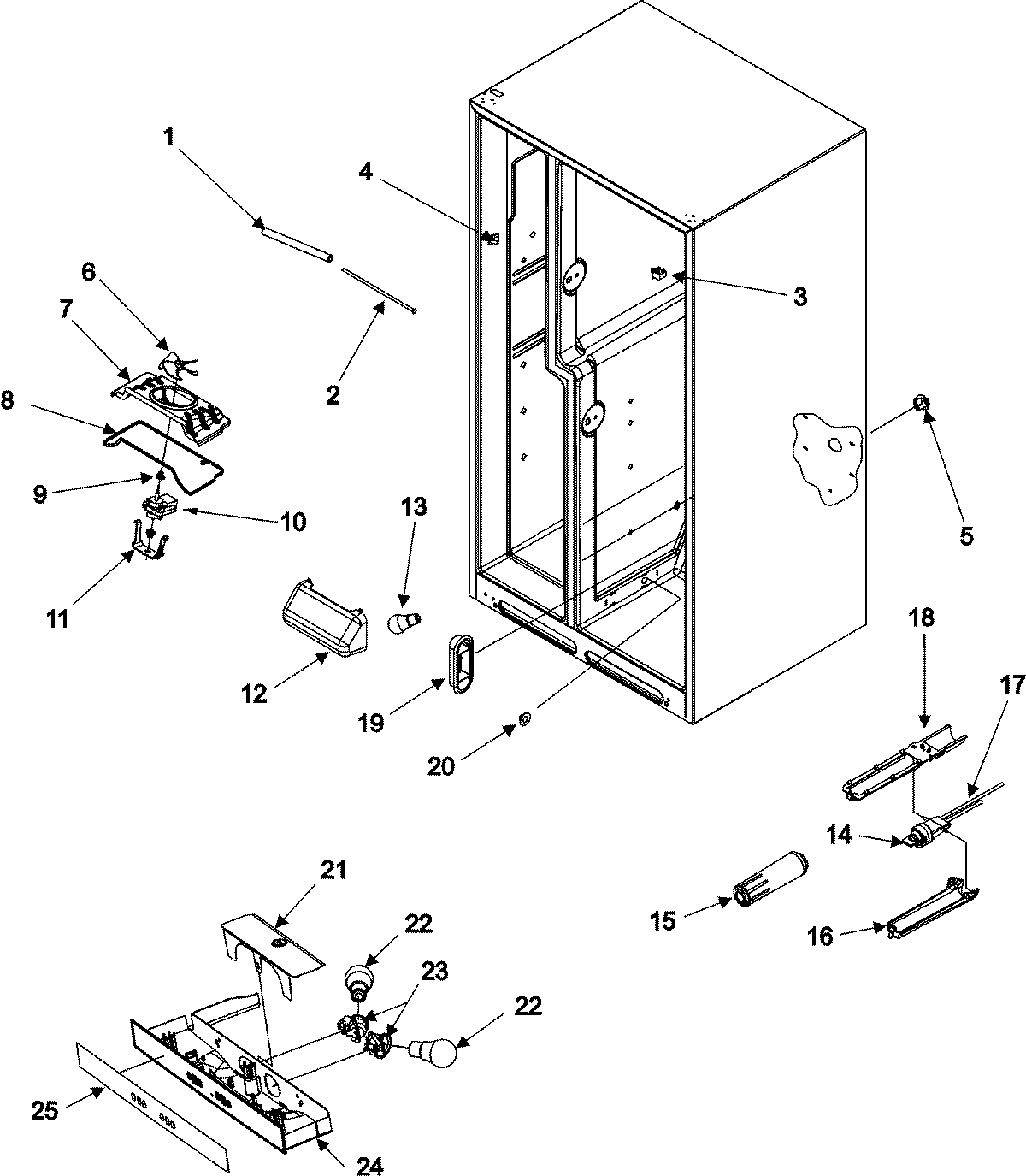

ACD2238HTS 06 – EVAP FAN ASSY AND LIGHTS

ACD2238HTS 06 – EVAP FAN ASSY AND LIGHTS

Written by

in

ACD2238HTS 06 – EVAP FAN ASSY AND LIGHTS

Products

PositionProduct
1MAY 67002219
2MAY M0322202
3W11291138 Whirlpool Refrigerator Door Switch
4SWITCH, LIGHT
6MAY 12217201
7Shroud, Evap Fan
8MAY 67001508
9WP67002780 Whirlpool Refrigerator Grommet
10WPW10128551 Whirlpool Evaporator Fan Motor
11WP67005633 Whirlpool Refrigerator Bracket
12MAY 67001507
14WP67004106 Whirlpool Water Filter Housing
14WP67006524 Whirlpool Refrigerator Housing
15FILTER, WATER SINGLE
16WP12568001 Whirlpool Filter Cover
17MAY 67002378
18MAY 12688503
19MAY 12634801
20MAY 67003018
21MAY 67004157
22Bulb, Light (2)
23Socket, Light (2)
24MAY 67004240
25MAY 67004327
