ACE082XM0 02 – SECTION

ACE082XM0 02 – SECTION

Written by

in

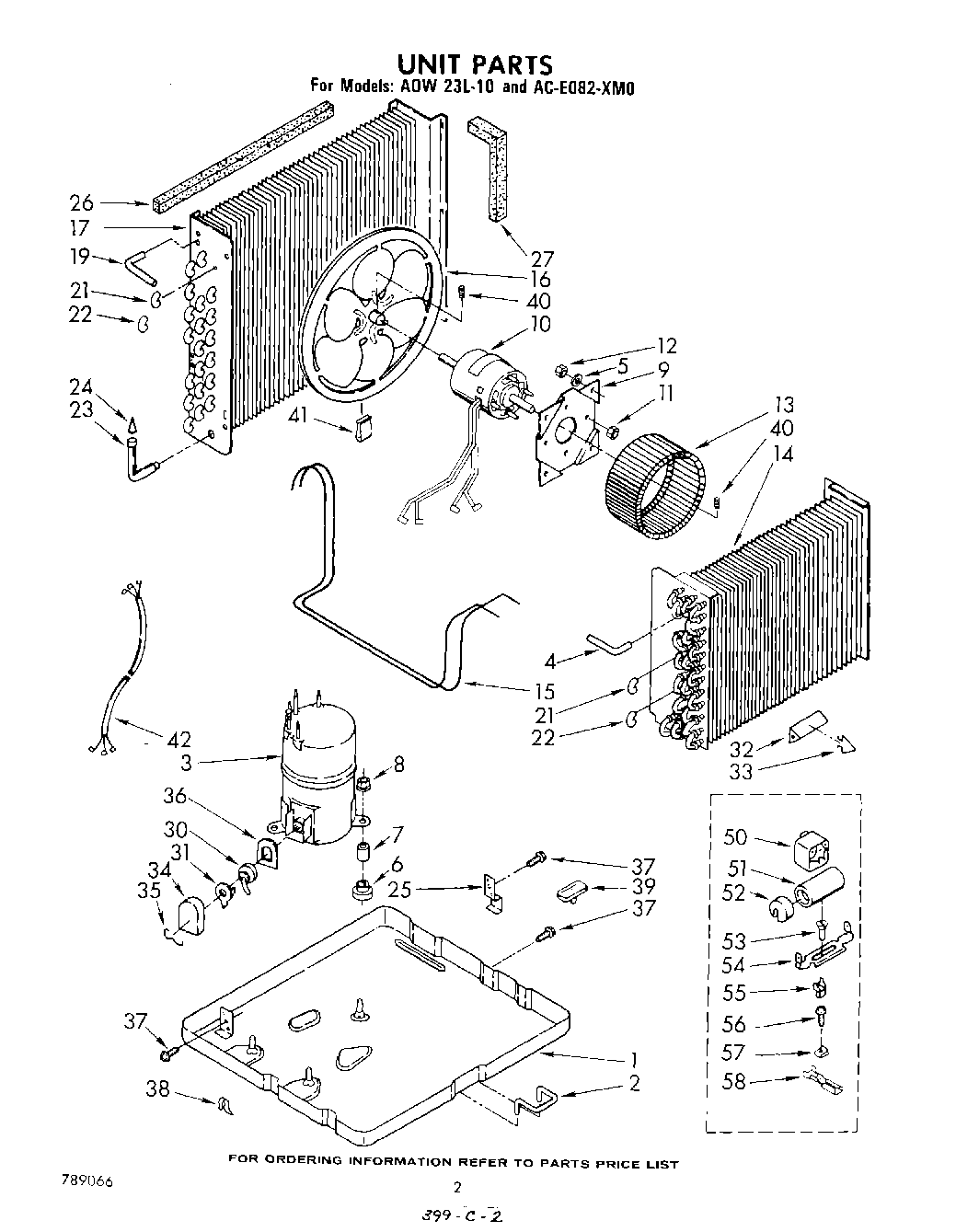

ACE082XM0 02 – SECTION

Products

PositionProduct
1Base
2WPL 647971
3Compressor
4Bend, 90~
5Washer, Repair (4)
6Grommet, Compressor (3)
7Sleeve, Compressor (3)
8Locknut (3)
9WPL 998024
10Motor, Fan
11WP488130 Whirlpool Air Conditioner Nut
12Nut, Hex (4)
13Wheel, Blower
14Evaporator Assembly
15Tube, Restrictor
16Blade, Fan
17Condenser Assembly
19Tube Inlet
21Bend, Return Evaporator (11)
22Bend, Return Evaporator (4)
23Tube & Strainer (Includes Item 23)
24Strainer
25WPL 647824
26WPL 649609
27WPL 649610
30Overload
31Spring, Overload
32Anticipator
33Clip, Anticipator
34Cover, Terminal
35Strap, Terminal Cover
36Gasket, Terminal Cover
37WP489069 Whirlpool Compactor Screw
38Clamp, Restrictor Tube
39WPL 647850
40Setscrew, 5/16 x 1/4
41Clip, Balancing
42Harness, Wiring
50Relay (Component Of Start Kit)
51capacitor (component of start kit)
52cap, capacitor (component of start kit)
53Screw, 10 x 5/8 (Component Of Start Kit)
54Bracket, Capacitor (Component Of Start Kit)
55Multiplier, Terminal (Component Of Start Kit)
56WP965173 Whirlpool Dishwasher Screw
57488660 Whirlpool Refrigerator Nut
58VALVE, ACCESS (1/2“)
58VALVE, ACCESS (5/8“)
58WPL 485608
58Oil, Turbine 1 Fl. Oz.
58978026 Whirlpool Refrigerator Primary Valve
58WPL 484220
58No Drip Tape (For Sweating Tubes)
58Clip, Terminal (Component Of Start Kit)
58978027 Whirlpool Refrigerator Primary Valve
58978030 Whirlpool Refrigerator Valve
58Kit, Evaporator Repair (Aluminum Epoxy)
58WP978025 Whirlpool Refrigerator Valve
