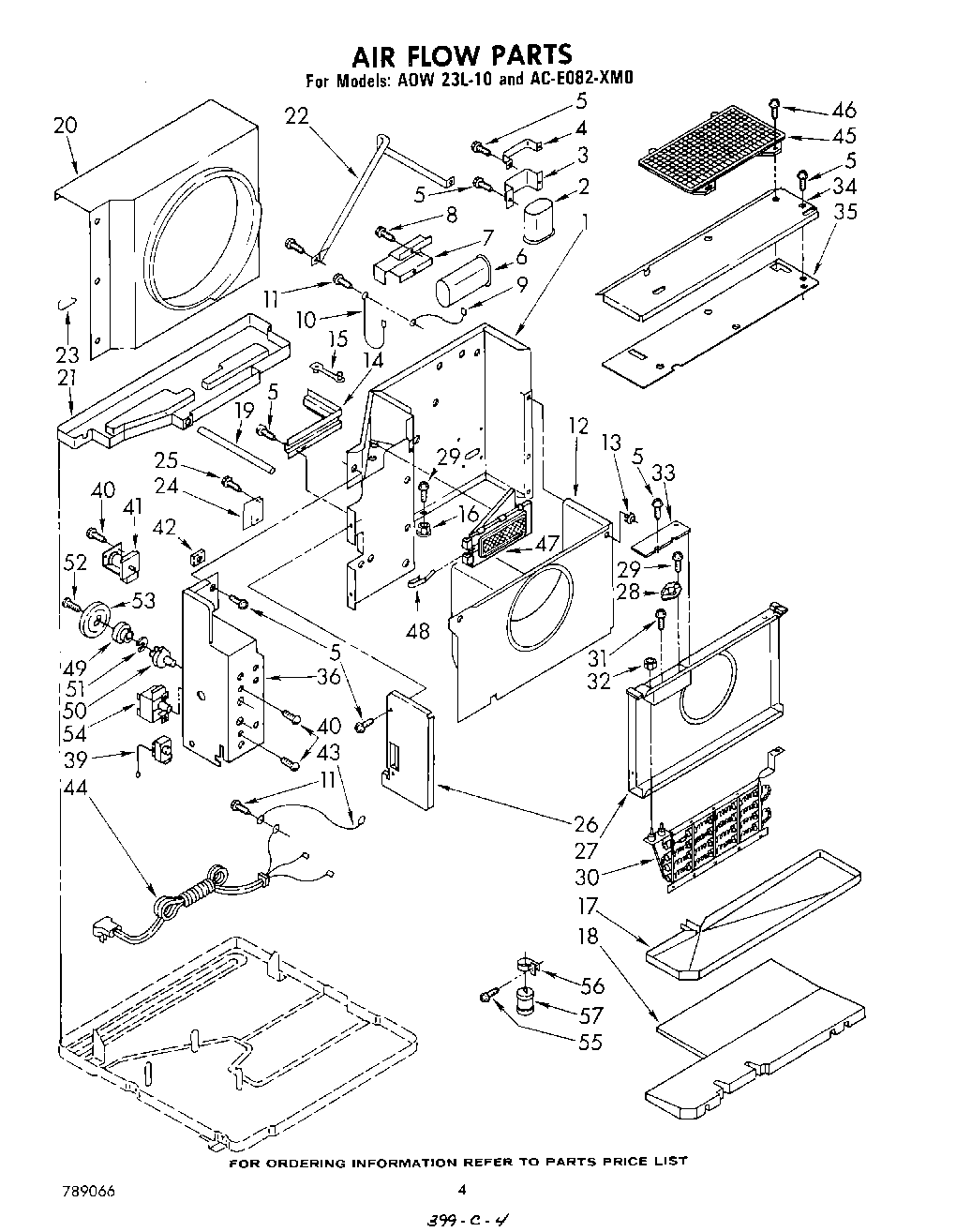

ACE082XM0 03 – SECTION

Products

Position	Product
1	Wall, Dividing
2	Capacitor, Compressor
3	Bracket, Running Capacitor
5	Bracket (Upper)
6	Capacitor, Fan Motor
7	Bracket, Fan Motor Capacitor
9	Ground Wire
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Housing, Blower Wheel
13	Fastener, snap (2)
14	Channel, Wiring
15	Clamp, Cable
16	Clip, Speed
18	Pan, Evaporator Condensate
19	Tube, Condensate
20	Shroud, Condenser
21	Pan, Condenser Condensate
22	Support, Unit
23	Clip, Shroud (3)
24	Cover, Wall
26	Dividing Wall Assembly, L.S.
27	Deflector, Heat Assembly
28	Switch, Limit
29	Screw, 8 x 3/8
30	Heater, Air (Replacement Fuse Part Number 977557)
31	WP488234 Whirlpool Air Conditioner Screw
32	WP488826 Whirlpool Nut
33	Cover, Wire Enclosure
34	Cover, Evaporator
35	Insulation, Evaporator Cover
36	Box, Control Assembly
39	Control, Temperature
40	Screw, 6-32 x .175
41	Contactor
42	Grommet
43	Wire, Ground
44	Cable, Appliance
45	Guard, Evaporator Impeller
46	WP488729 Whirlpool Refrigerator Door Screw
47	Door, Exhaust
48	Spring, Door
49	Bushing, Shaft
50	Shaft, Control
51	Washer
52	Screw, 7-18 x 5/8
53	Cam, Exhaust
54	Switch, Rotary
55	WPL 949177
56	Clamp, Mounting
57	WPL 951103
57	WPL 951106
57	WP965173 Whirlpool Dishwasher Screw
57	WPL 789066
57	Lacquer, Starlight Gray (1/2 Pt. Uncut)
57	WPL 950805
57	WPL 950357
57	212643 Whirlpool Refrigerator Permagum Sealer
57	Wire, Red, (25 Ft.)
57	WPL 799351
57	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
57	Wire, 25“ Roll (Black 12 GA.)
57	Insulation, Base
57	Wire, 25“ Roll (White 12 GA.)
