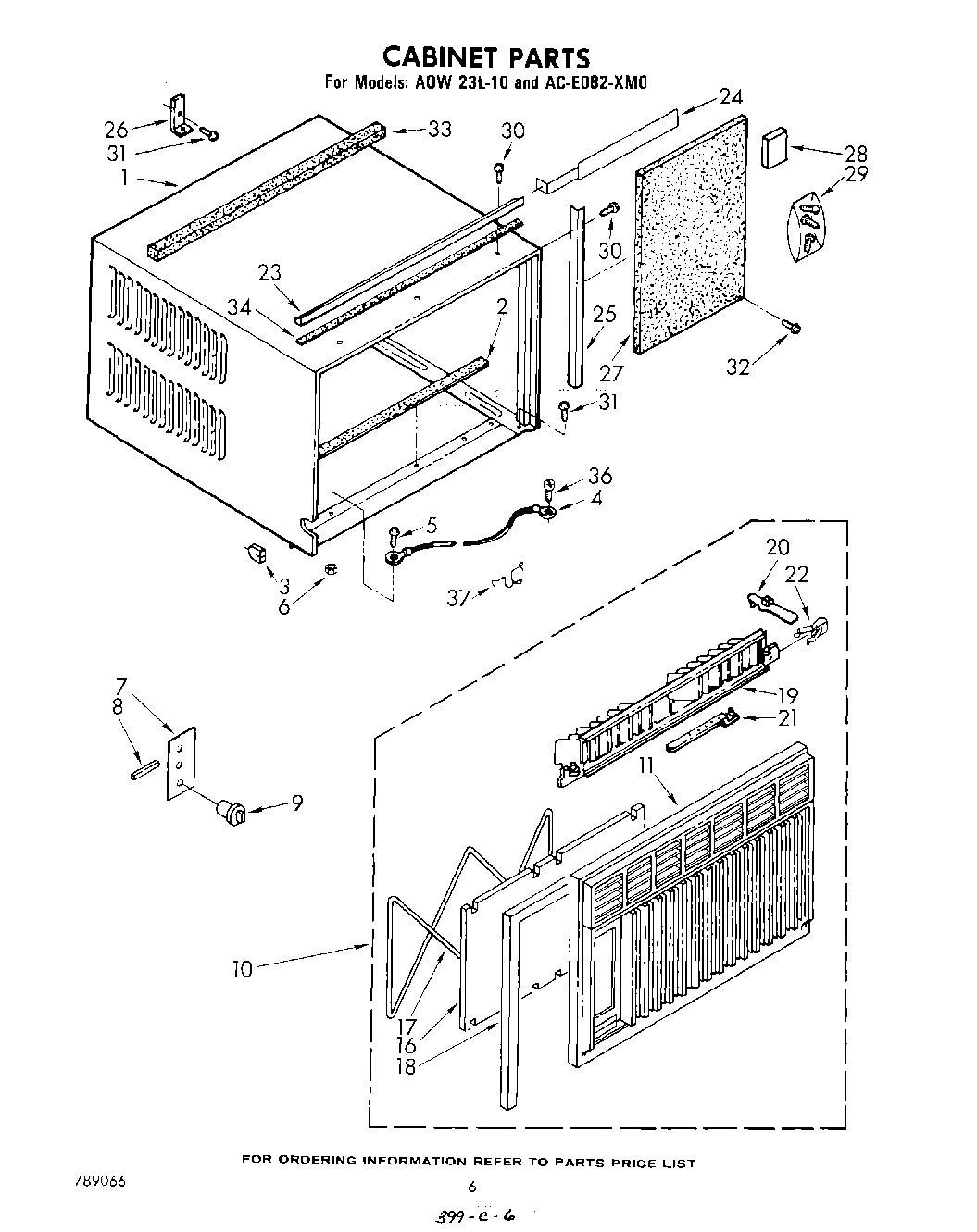

ACE082XM0 04 – SECTION

Written by

Products

Position	Product
1	Cabinet
2	Seal
3	Grommet, Appliance Cable
4	Wire, Ground
5	Screw, 8 x 3/8
6	WP486255 Whirlpool Air Conditioner Nut
7	Plate, Escutcheon
8	Spacer, Escutcheon Plate (3)
9	Knob, Control
10	Front Assembly, Cabinet (Complete)
11	Front, Cabinet
16	Filter
17	Retainer, Filter
18	WP854334 Whirlpool Air Conditioner Sealing Strip
19	Louver, Vertical
20	Handle, Vertical Louver (2)
21	Link, Vertical Louver (2)
22	Detent Spring (2)
23	Angle, Top
24	Bracket, R.S.
25	Angle (2)
26	Bracket
27	Bracket, R.S.
28	Spacer, Block (4)
29	Bag, Accessory
30	WP308685 Whirlpool Microwave Screw
31	Screw, Wood 8-15 x .750
32	WP965173 Whirlpool Dishwasher Screw
33	Gasket, Meeting Rail
34	Strip, Seal
36	Screw, 8 x 3/8
37	Clip, Mtg. (2) (Base to Front)
