ACE082XP0 03 – SECTION

ACE082XP0 03 – SECTION

Written by

in

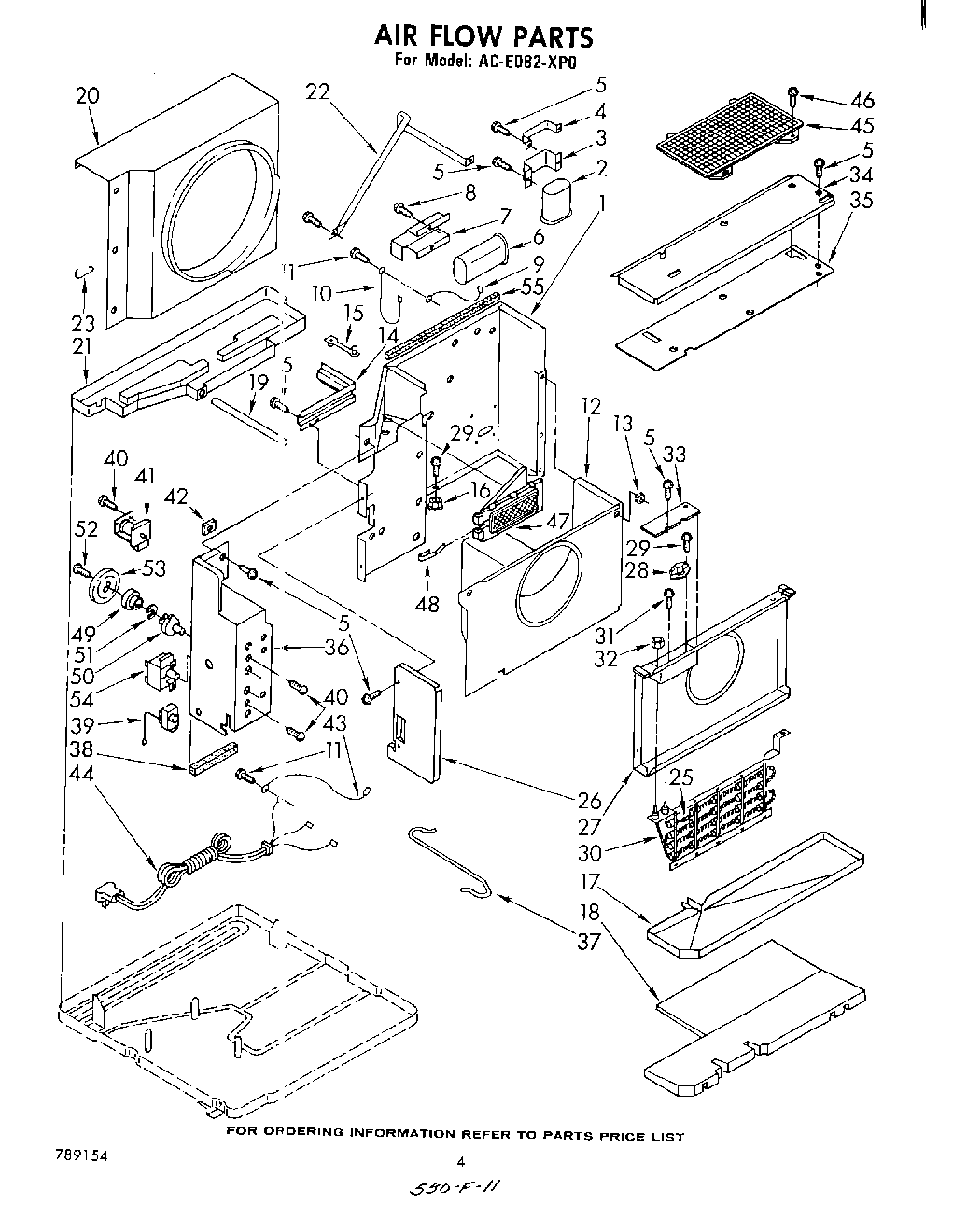

ACE082XP0 03 – SECTION

Products

Position	Product
	WPL 677813
	WPL 677821
	WPL 677818
	WPL LIT951513
	WPL LIT951509
	Guide, Use And Care
	WPL LIT789154
	WPL 677967
1	Wall, Dividing
2	Capacitor, Running
3	Bracket, Running Capacitor
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	capacitor, fan
7	Bracket, Fan Motor Capacitor
9	Ground Wire
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Housing, Blower Wheel
13	Fastener, snap (2)
14	Channel, Wiring
15	Clamp, Cable
16	Clip, Speed
17	Pan, Evaporator Condensate
18	Insulation, Condensate Pan
19	Tube, Condensate
20	Shroud, Condenser
21	Pan, Condenser Condensate
22	Support, Unit
23	Clip, Shroud (3)
25	Fuse, Heater
26	Dividing Wall Assembly, L.S.
27	Deflector, Heat Assembly
28	Switch, Limit
29	Screw, 8 x 3/8
30	Heater, Air
31	WP488234 Whirlpool Air Conditioner Screw
32	WP488826 Whirlpool Nut
33	Cover, Wire Enclosure
34	Cover, Evaporator
35	Insulation, Evaporator Cover
36	Box, Control Assembly
37	Wire, C
38	WP854334 Whirlpool Air Conditioner Sealing Strip
39	Control, Temperature
40	Screw, 6-32 x .175
41	Contactor
42	Grommet
43	Wire, Ground
44	Cable, Appliance
45	Guard, Evaporator Impeller
46	WP488729 Whirlpool Refrigerator Door Screw
47	Door, Exhaust
48	Spring, Door
49	Bushing, Shaft
50	Shaft, Control
51	Washer
52	WP98165 Whirlpool Screw
53	Cam, Exhaust
54	Switch, Rotary
55	212643 Whirlpool Refrigerator Permagum Sealer
55	Wire, Red, (25 Ft.)
55	WPL 799351
55	Lacquer, Starlight Gray (1/2 Pt. Uncut)
55	Wire, 25“ Roll (White 12 GA.)
55	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
55	Cover, Winter (27 x 19 x 6 to 27“)
55	Wire, 25“ Roll (Black 12 GA.)
55	WPL 647847
55	WPL 647848
55	Insulation, Base
55	Insulation, Cabinet (Top)
