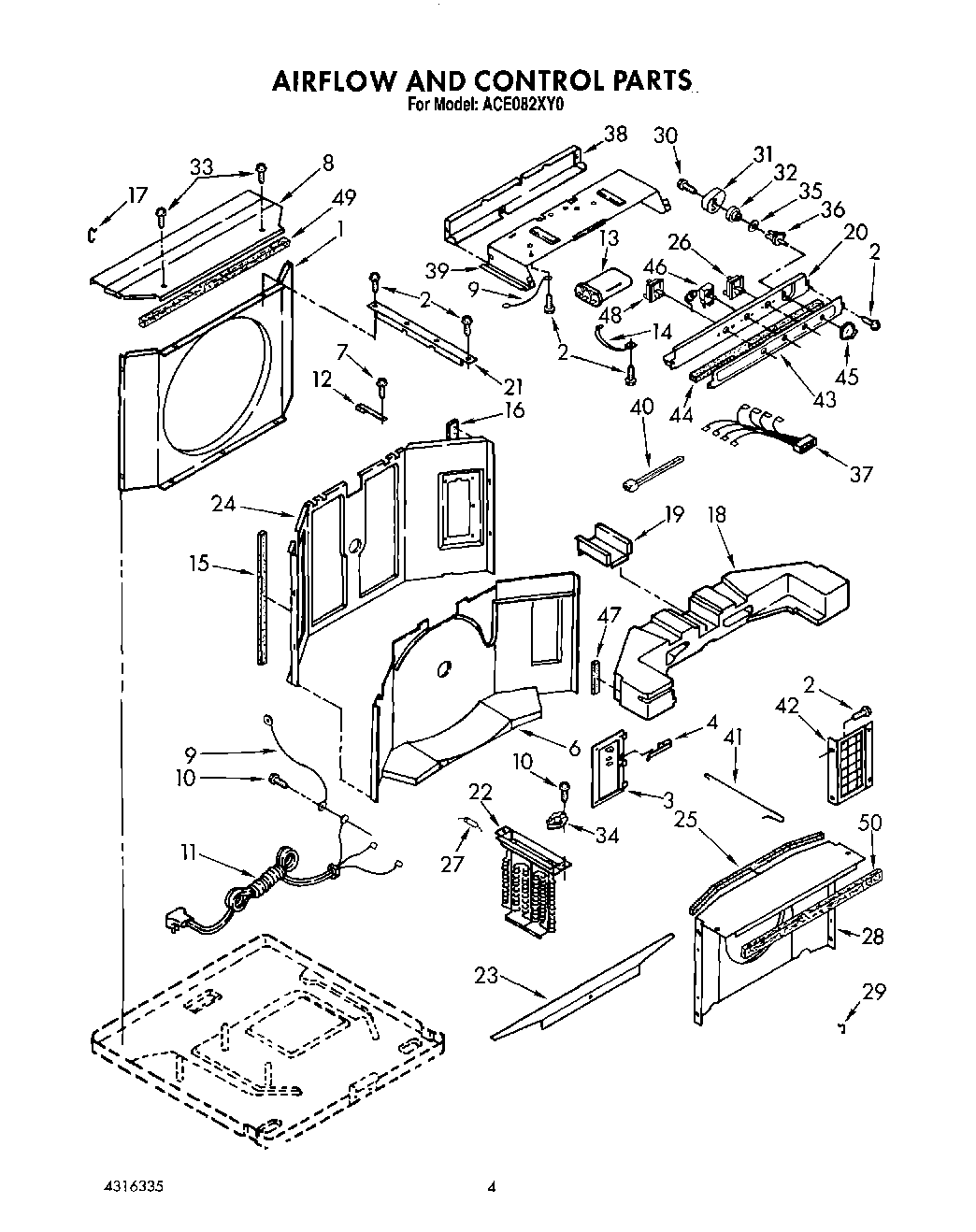

ACE082XY0 03 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
3	Door, Exhaust
4	Spring, Door
5	Grommet, Divider Wall
6	Scroll (Lower)
7	Screw, 8-18 x 3/8
8	Top, Condenser
9	Wire, Ground
10	WP489069 Whirlpool Compactor Screw
11	Cord, Appliance
12	Strap, Dividing Wall
13	Capacitor, Running
14	Bracket, Capacitor
15	Seal, Left Side
16	Seal, Right Side
17	Clip, Shroud (2)
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Element, Heater
23	Cover, Pan
24	Wall, Dividing
25	Insulation, Shroud
26	Switch, Rotary
27	Fuse Link Asy
28	Shroud Assembly, Evaporator
29	Clip, Shroud
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Limit Switch
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring Control Box
38	Control Box
39	Back Panel, Control Box
40	WPW10339879 Whirlpool Wire Tie
41	Wire, Exhaust Door
42	Impeller Guard (2)
43	Escutcheon
45	Knob, Controls (4)
46	Control, Temperature
47	Seal, Housing
48	Switch, Fan
49	WP854334 Whirlpool Air Conditioner Sealing Strip
50	Seal
