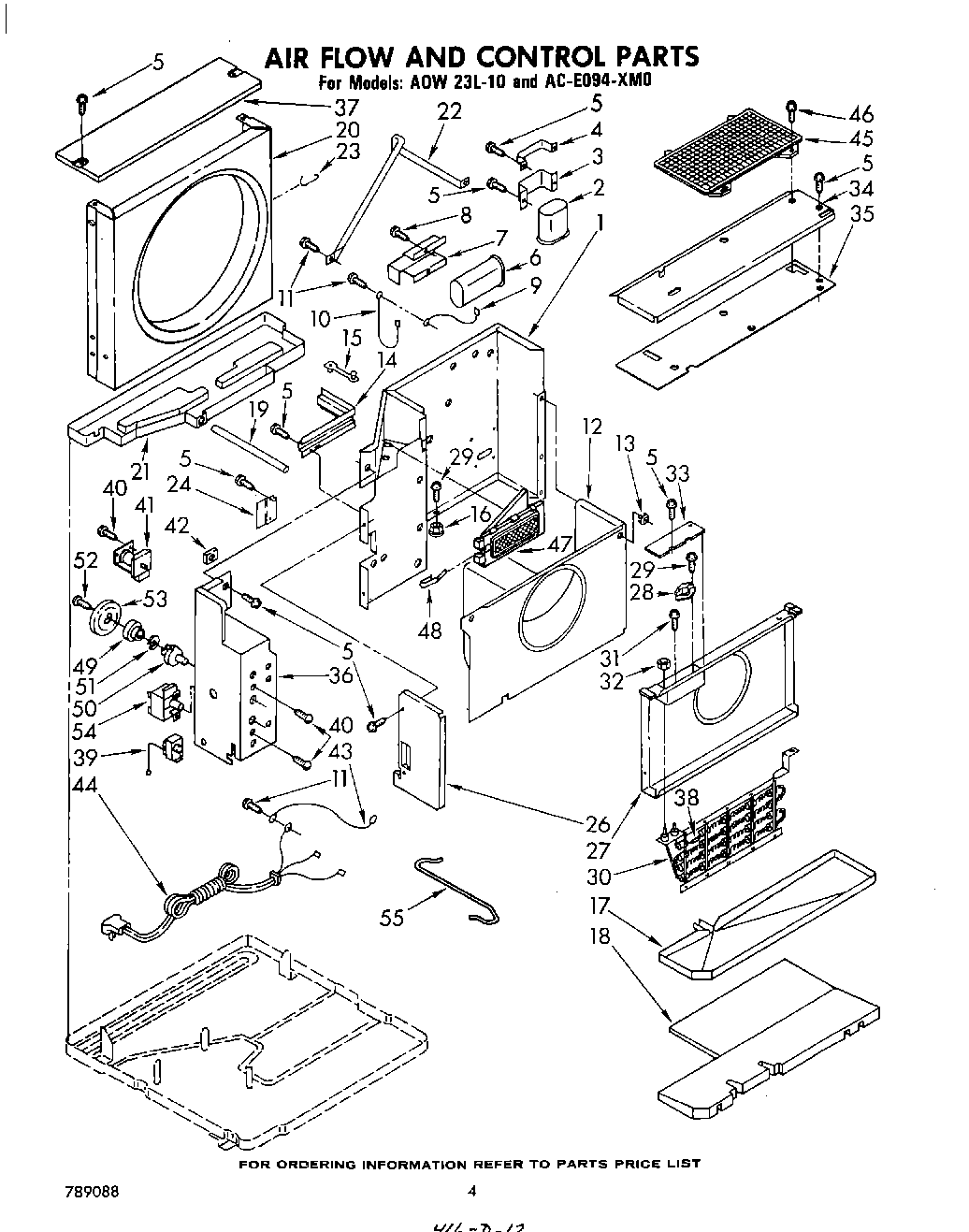

ACE094XM0 03 – SECTION

Products

Position	Product
1	Wall, Dividing
2	WPL 951516
3	Bracket, Running Capacitor
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Capacitor, Fan
7	Bracket, Fan Motor Capacitor
9	Ground Wire
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Housing, Blower Wheel
13	Fastener, snap (2)
14	Channel, Wiring
15	Clamp, Cable
16	Clip, Speed
17	Pan, Evaporator Condensate
18	Insulation, Condensate Pan
19	Tube, Condensate
20	Shroud
21	Pan, Condensate
22	Support, Unit
23	Clip, Shroud (3)
24	Baffle
26	Dividing Wall Assembly, L.S.
27	Deflector, Heat Assembly
28	Switch, Limit
29	Screw, 8 x 3/8
30	Heater, Air
31	WP488234 Whirlpool Air Conditioner Screw
32	WP488826 Whirlpool Nut
33	Cover, Wire Enclosure
34	Cover, Evaporator
35	Insulation, Evaporator Cover
36	Box, Control Assembly
37	Cover, Shroud (Condenser)
38	Fuse, Heater
39	Control, Temperature
40	Screw, 6-32 x .175
41	Contactor
42	Grommet
43	Wire, Ground
44	Cable, Appliance
45	Guard, Evaporator Impeller
46	WP488729 Whirlpool Refrigerator Door Screw
47	Door, Exhaust
48	Spring, Door
49	Bushing, Shaft
50	Shaft, Control
51	Washer
52	Screw, 7-18 x 5/8
53	Cam, Exhaust
54	Switch, Rotary
55	Wire, 25“ Roll (Black 12 GA.)
55	WPL 799351
55	WPL 951215
55	WPL 951213
55	WPL 950356
55	WPL 789088
55	Lacquer, Starlight Gray (1/2 Pt. Uncut)
55	212643 Whirlpool Refrigerator Permagum Sealer
55	Wire, Red, (25 Ft.)
55	Wire, C
55	Insulation, Base
55	Wire, 25“ Roll (White 12 GA.)
55	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
