ACE114PK0 01 – UNIT PARTS

ACE114PK0 01 – UNIT PARTS

Written by

in

ACE114PK0 01 – UNIT PARTS

Products

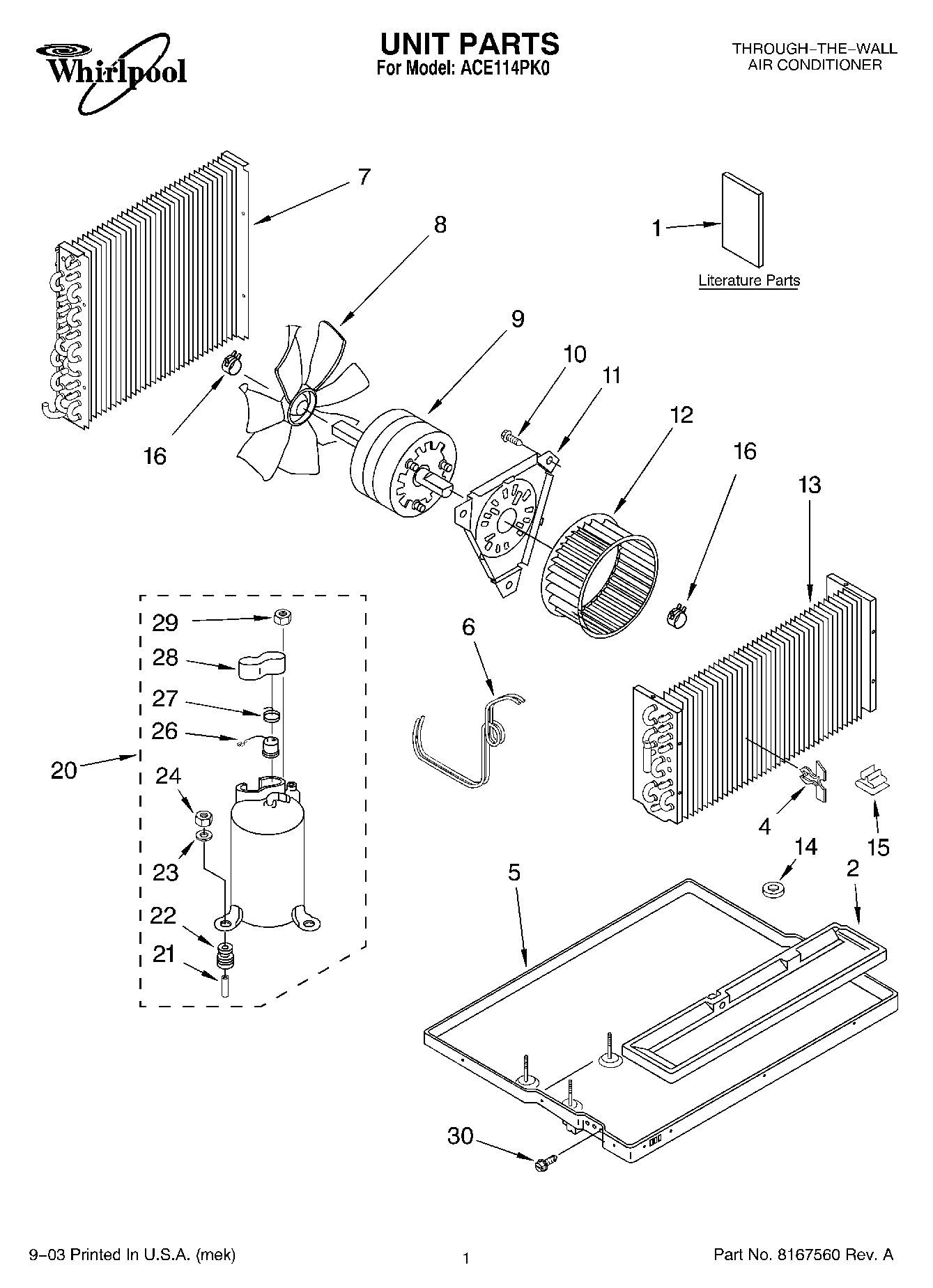

PositionProduct
1Literature Parts (Use And Care Guide)
2Pan, Drain (Evaporator)
4Clip, Thermostat Bulb
5Base
6Tube, Restrictor .049 I.D. x 41“ (2)
7Condenser
8Blade, Fan (Condenser)
9Motor, Fan
10WP8204624 Whirlpool Bolt
11Plate, Motor Mounting
12Wheel, Blower
13Evaporator
14Grommet, Tube
15Clip (2)
16Clamp
20Compressor
21Sleeve
22Grommet
23W11236646 Whirlpool Washer Assembly
24Nut
26Overload
27Spring, Overload
28Cover, Terminal
29Nut, Terminal Cover
30REFRIGERANT CHARGE 22.50 oz.
30FOLLOWING PARTS NOT ILLUSTRATED
30Strainer
30Screw
30Filler, Panel
30Snubber, Two 1/4 Tubes
