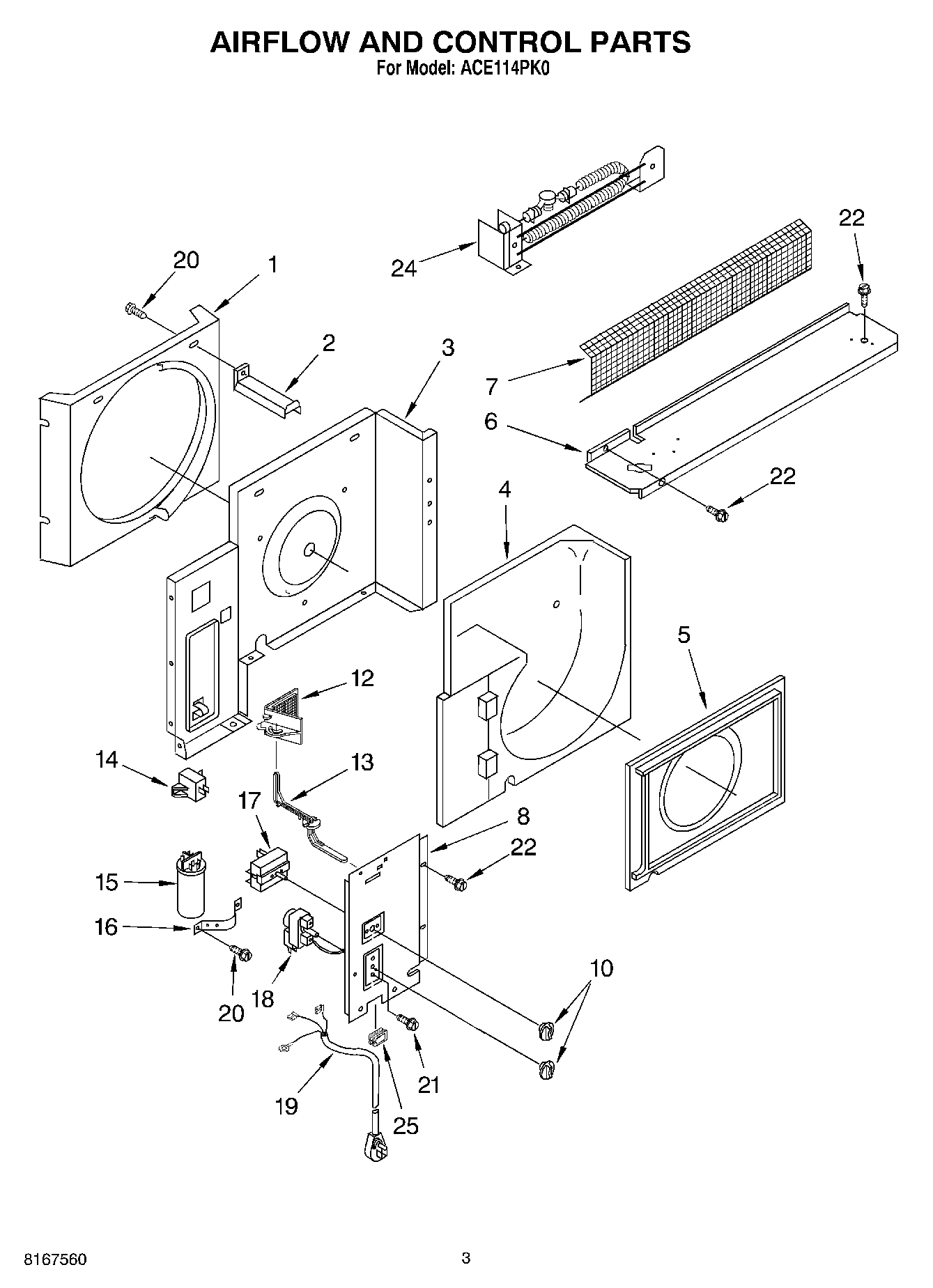

ACE114PK0 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Support, Unit
3	Wall, Dividing
4	Scroll, Blower
5	Shroud, Evaporator
6	Cover, Evaporator
7	Screen, Air Discharge
8	Panel, Control
10	Knob, Control
12	Door, Exhaust
13	Actuator, Door
14	Assist, Start
15	Capacitor
16	Strap, Capacitor
17	Switch, Rotary
18	Thermostat
19	Cable, Appliance
20	Screw No.8 x 1/2
21	WP488234 Whirlpool Air Conditioner Screw
22	Screw
24	Heater Assembly
25	Relief, Strain
