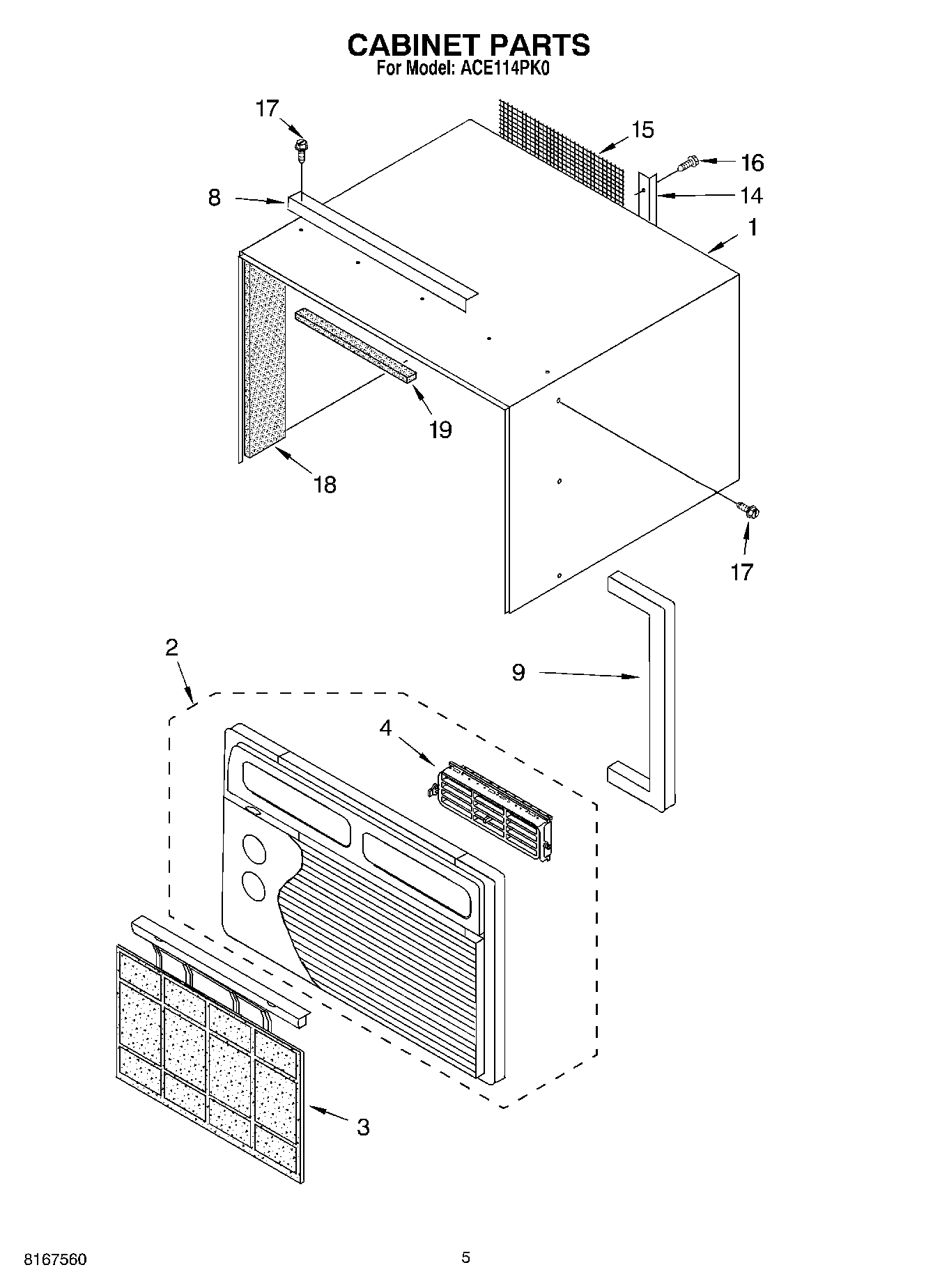

ACE114PK0 03 – CABINET PARTS

Products

PositionProduct
1Cabinet Assembly (Includes Insulation and Item No. 15)
2Front Assembly
3Filter, Air
4Louver Assembly (Not Serviced Separately)
8Trim, Frame (Top And Bottom)
9Trim, Frame (Side)
14Capacitor
15Guard, Wire
16Screw
17Screw
18Insulation, Cabinet (Side) ((Left Side))
18Insulation, Cabinet (Side) ((Right Side))
19Seal, Strip (Top Rear)
19Sleeve, Cabinet
