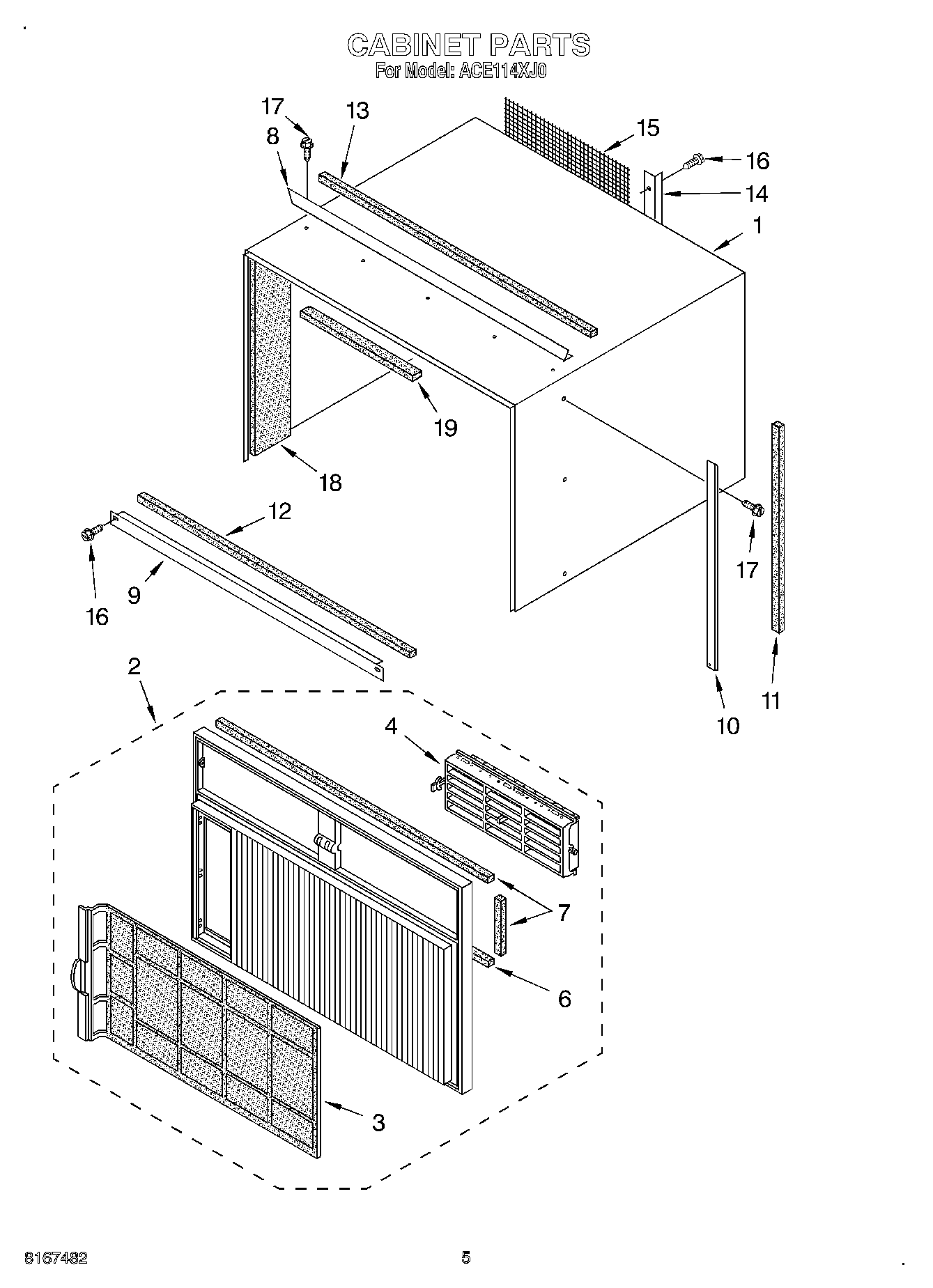

ACE114XJ0 03 – CABINET PARTS

Products

PositionProduct
1Cabinet Assembly (Includes Insulation and Item No. 15)
2Front Assembly
3Filter, Air
4Louver Assembly (Not Serviced Separately)
6Seal, Front
7Seal, Front
8Frame and Foam Assembly (Top)
9Frame and Foam Assembly (Bottom)
10Frame and Foam Assembly (Side) ((Right Side))
10Frame and Foam Assembly (Side) ((Left Side))
12WP854334 Whirlpool Air Conditioner Sealing Strip
14Capacitor
15Guard, Wire
16Screw
17Screw
18Insulation, Cabinet (Side) ((Right Side))
18Insulation, Cabinet (Side) ((Left Side))
19Seal, Strip (Top Rear)
19Sleeve, Cabinet
