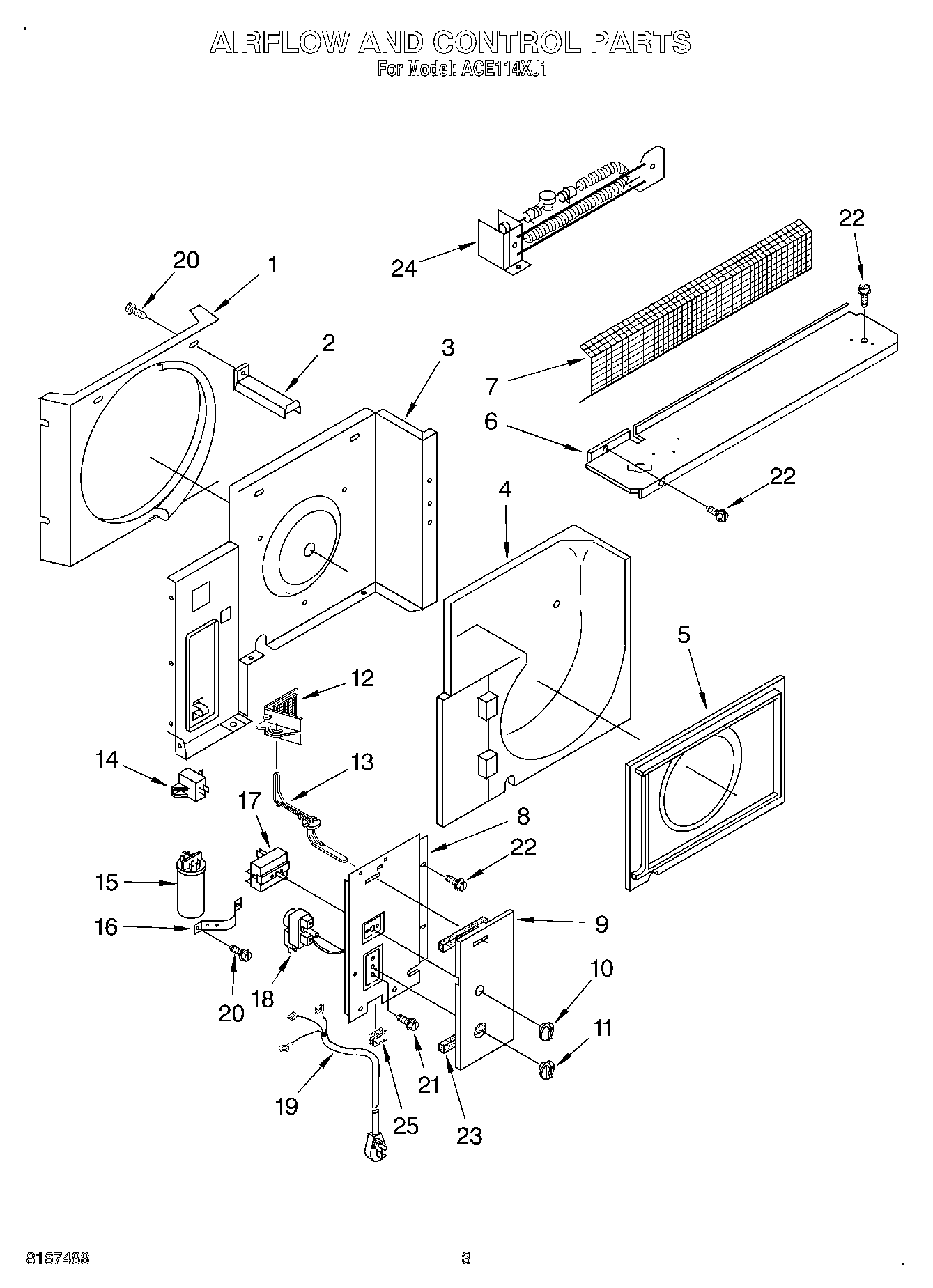

ACE114XJ1 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Support, Unit
3	Wall, Dividing
4	Scroll, Blower
5	Shroud, Evaporator
6	Cover, Evaporator
7	Screen, Air Discharge
8	Panel, Control
9	Escutcheon (Also Order No. 23)
10	Knob, Fan Switch
11	Knob, Thermostat
12	Door, Exhaust
13	Actuator, Door
14	Assist, Start
15	Capacitor
16	Strap, Capacitor
17	Switch, Rotary
18	Thermostat
19	Cable, Appliance
20	Screw No.8 x 1/2
21	WP488234 Whirlpool Air Conditioner Screw
22	Screw
23	WP854334 Whirlpool Air Conditioner Sealing Strip
24	Heater Assembly
25	Relief, Strain
