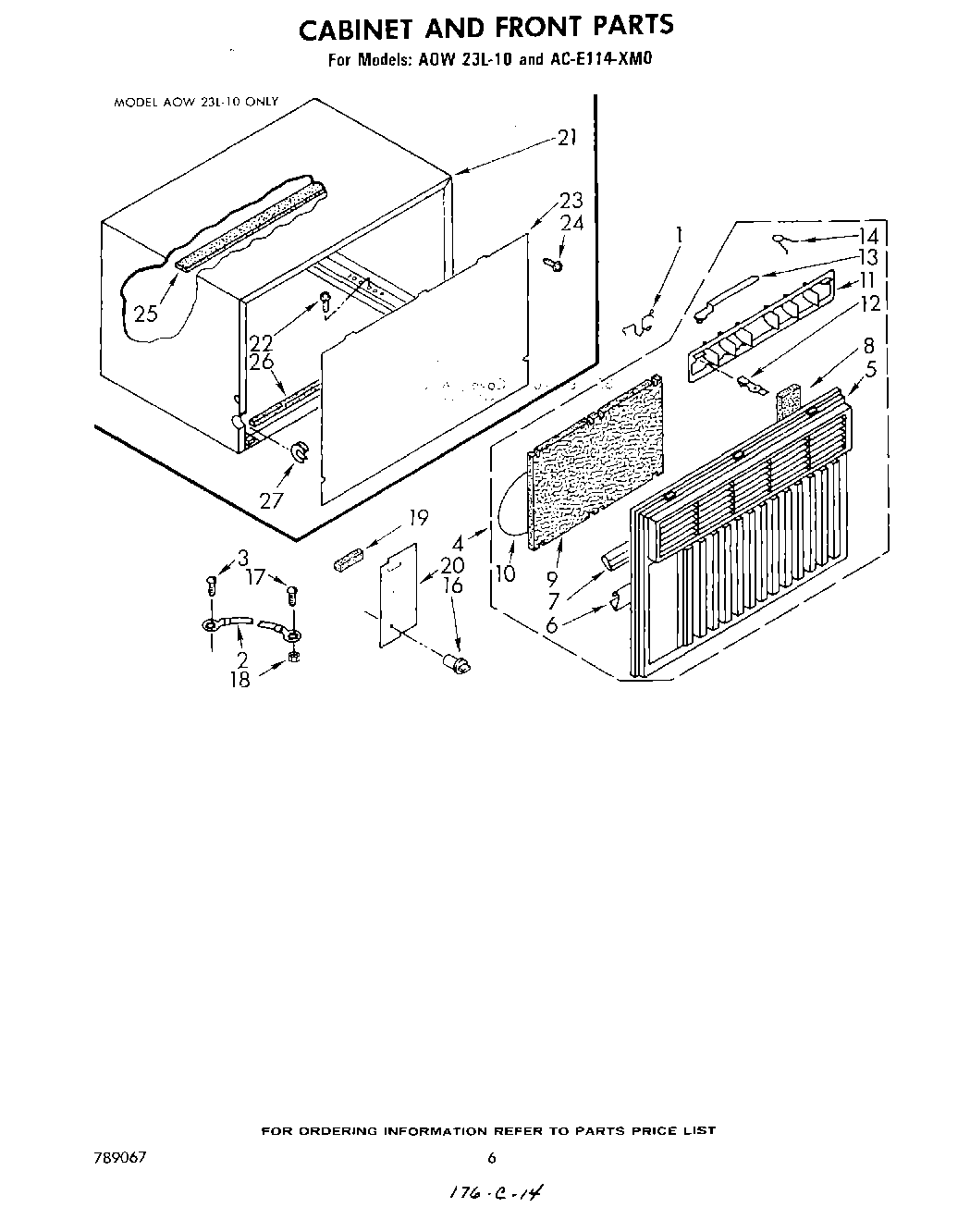

ACE114XM0 04 – CABINET AND FRONT PARTS

Products

Position	Product
1	Clip (2)
2	Wire, Ground
3	Screw, 8 x 3/8
4	cabinet, front assembl
5	Front, Cabinet
6	WP854334 Whirlpool Air Conditioner Sealing Strip
7	Seal
8	Seal
9	Filter
10	Retainer, Filter
11	Louver, Vertical
12	Handle, Vertical Louver (2)
13	Link, Vertical Louver (2)
14	Detent Spring (2)
16	Knob, Control
17	Screw, 8 x 3/8
18	WP486255 Whirlpool Air Conditioner Nut
19	Spacer, Escutcheon Plate (3)
20	Plate, Escutcheon
21	xCabinet (Requires Insulation 649939)
22	Screw (Window Lock Bracket)
23	Panel, Front
24	WP487353 Whirlpool Refrigerator Screw
25	xInsulation, Cabinet (Top)
25	Insulation, Cabinet (L.S.)
25	seal, weather
25	WPL 647847
26	Seal, Cabinet (Bottom)
27	Grommet, Appliance Cable
