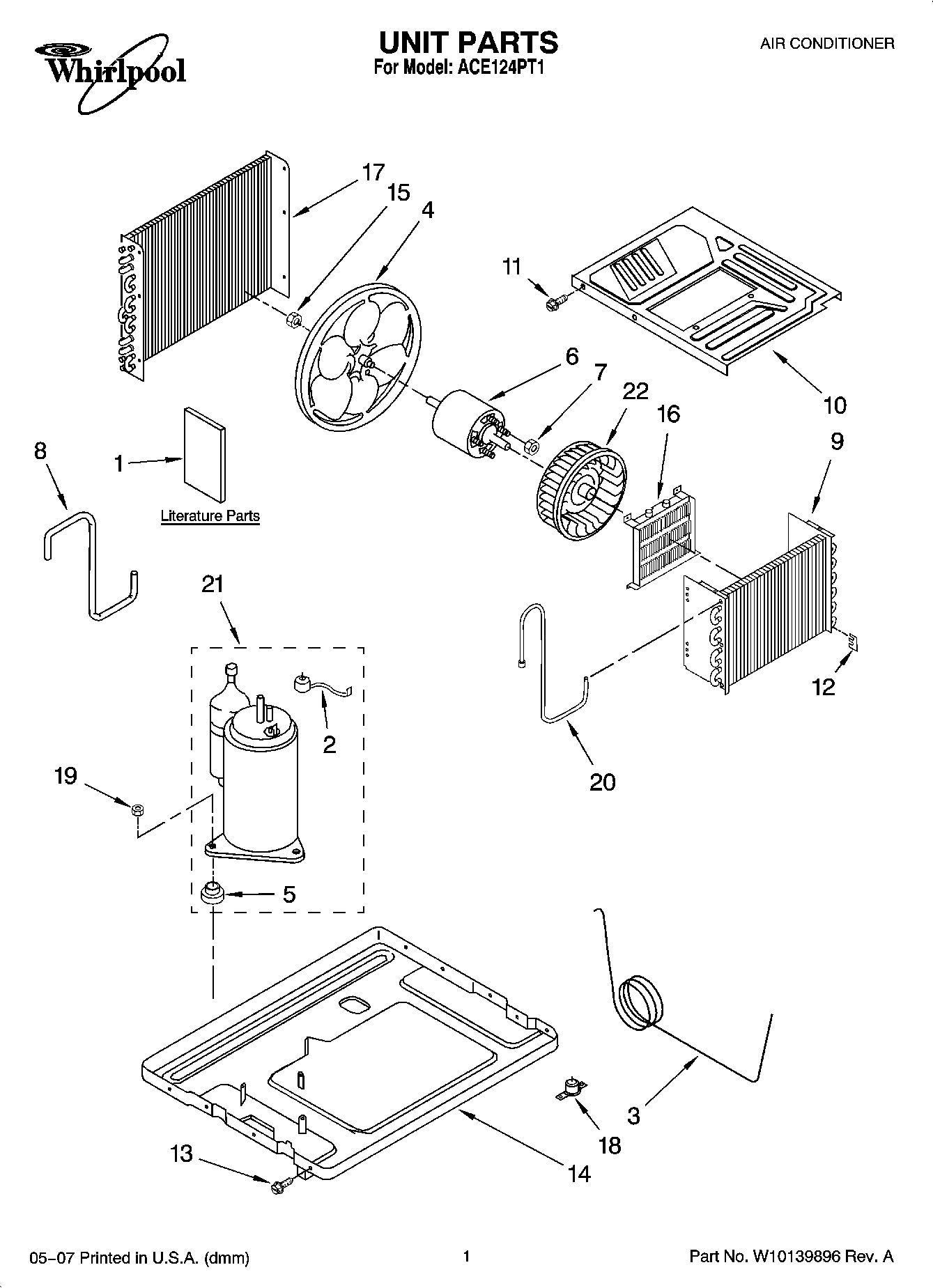

ACE124PT1 01 – UNIT PARTS

Products

Position	Product
1	Energy Guide
1	Wiring Diagram
1	Use & care Guide
2	OVERLOAD
3	Tube, Restrictor
4	Blade, Fan
5	Grommet (3)
6	Motor, Fan
7	Nut, Hex
8	Tube, Discharge
9	EVAPORATOR
10	Cover, Evaporator
11	Screw
12	Support, Tube Sensor
13	W11245710 Whirlpool Refrigerator Screw
14	BASE
15	Nut W/Washer
16	HEATER
17	CONDENSER
18	Drain Plug
19	Nut, W/Washer
20	Tube, Suction
21	Compressor Assembly
22	REFRIGERANT CHARGE 21.51 oz.
22	Wheel, Blower
