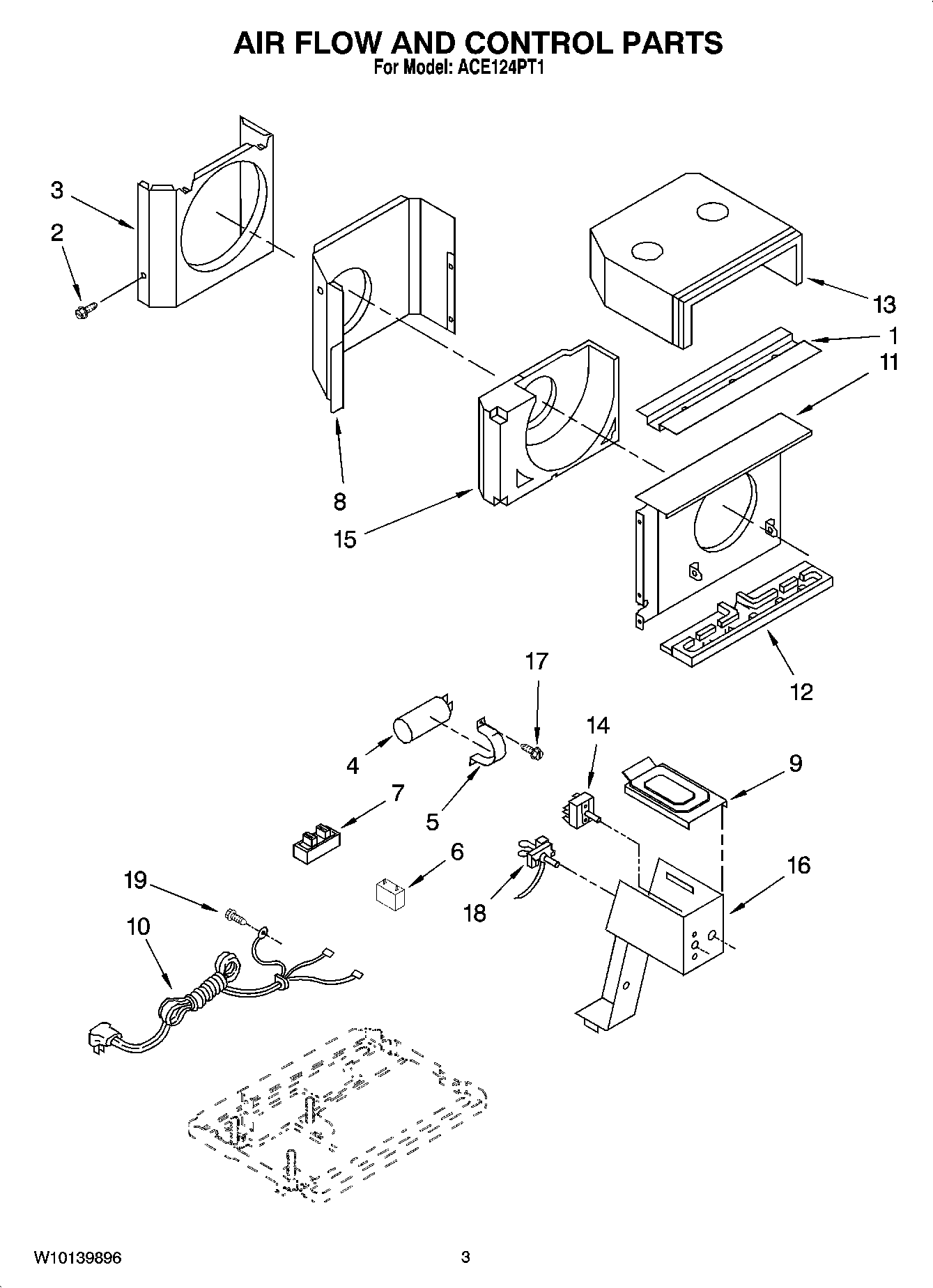

ACE124PT1 02 – AIR FLOW AND CONTROL PARTS

Written by

Products

Position	Product
1	Shield
2	Screw
3	Shroud, Condenser
4	Capacitor, Running
5	Bracket, Capacitor
6	Capacitor, Motor
7	Terminal Board
8	Wall, Dividing
9	Cover, Control Box
10	Cord, Appliance
11	Shroud, Evaporator
12	Pan, Evaporator
13	Hood, Air Housing
14	Switch
16	Box, Control
17	W11245710 Whirlpool Refrigerator Screw
18	THERMOSTAT
19	Front, Cabinet Assembly
