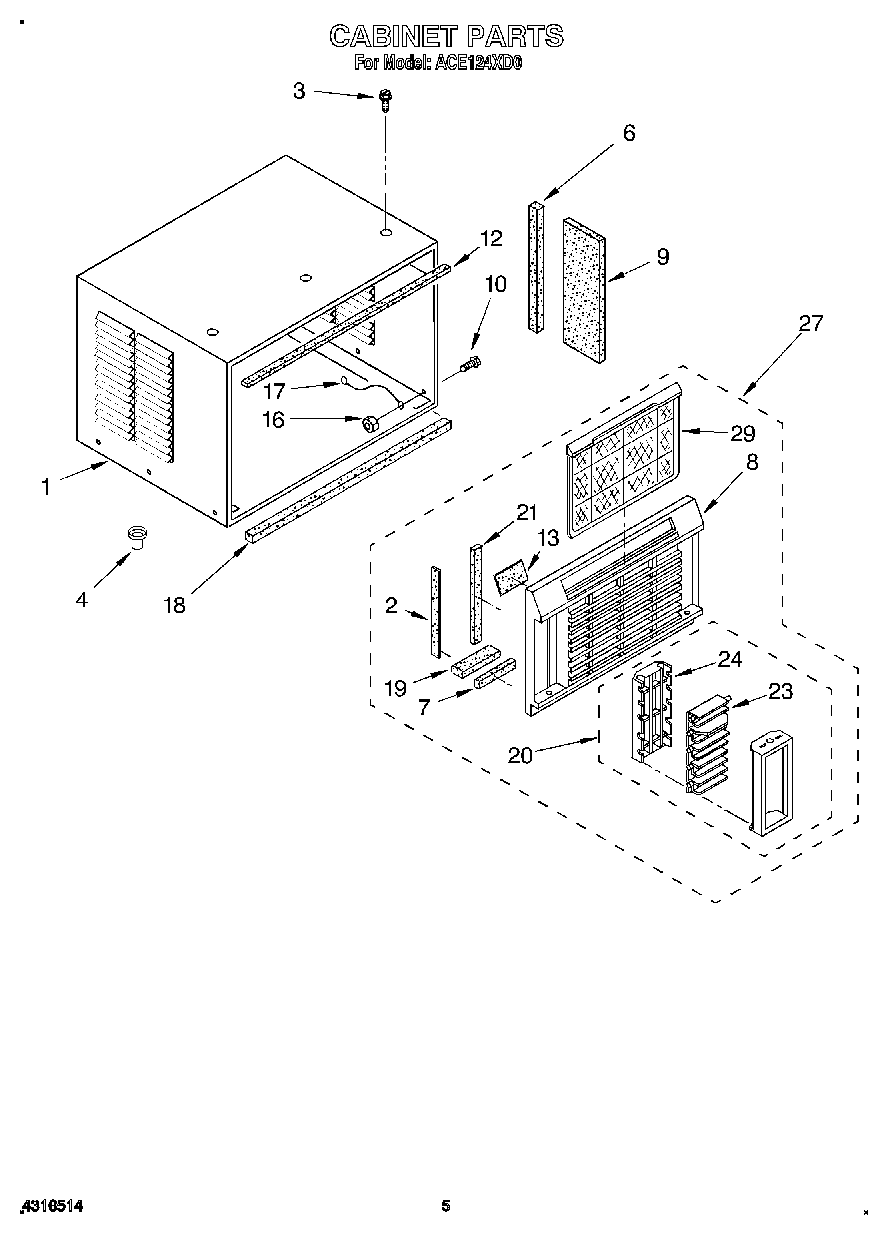

ACE124XD0 03 – CABINET

Products

Position	Product
1	Cabinet
2	Seal, Front – Sides (2)
3	WP489069 Whirlpool Compactor Screw
4	Cup, Condensate Drain
6	Seal, Strip (2)
7	Seal, (2)
8	Cabinet Front
9	Insulation (2)
10	Screw, 8 x 3/8
12	Seal, Cabinet Top
13	Seal, Front
16	WP486255 Whirlpool Air Conditioner Nut
17	Wire, Ground
18	Seal
19	Seal, Front
20	Cartridge, Complete
21	Seal, Side (2)
23	Horzontal Louver
24	Ribs, Vertical
27	Front, Asy
29	Filter
