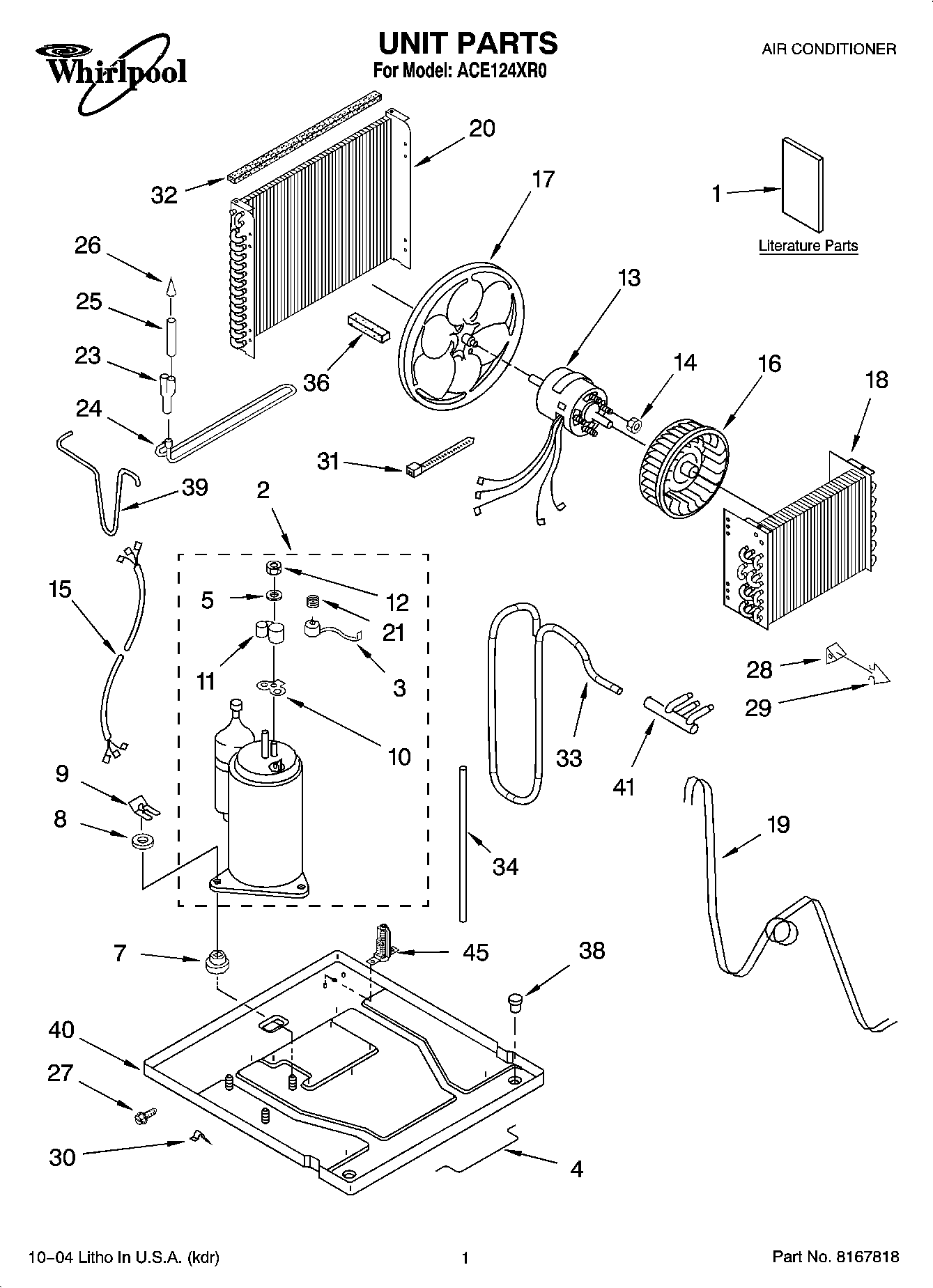

ACE124XR0 01 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide
1	Energy Guide
2	Compressor
3	Overload
4	Handle, Base
5	Washer
7	Grommet
8	Washer, Nylon
9	Clip, Compressor
10	Gasket, Terminal Cover
11	Cover, Terminal
12	W10833054 Whirlpool Air Conditioner Mounting Nut
13	Motor, Fan
14	WP488130 Whirlpool Air Conditioner Nut
15	Wiring Harness, Compressor
16	Wheel, Blower (Evaporator)
17	Blade, Fan (Condenser)
18	Evaporator
19	Tube, Restrictor
20	Condenser
21	Spring, Overload
23	Tube, Flow Divider
24	Tube, Wet Loop
25	Tube, Outlet
26	Strainer
27	Screw, 8 x 3/8
28	Anticipator
29	Clip, Anticipator
30	Clamp (2)
31	WPW10339879 Whirlpool Wire Tie
32	Seal
33	Tube, Suction
34	Seal, Suction Tube Suction Tube
36	WP854334 Whirlpool Air Conditioner Sealing Strip
38	Cup, Condensate
39	Tube, Discharge
40	Base
41	Tube, Flow Divider
45	REFRIGERANT CHARGE 28.00 oz.
45	Valve, Drain Pan
