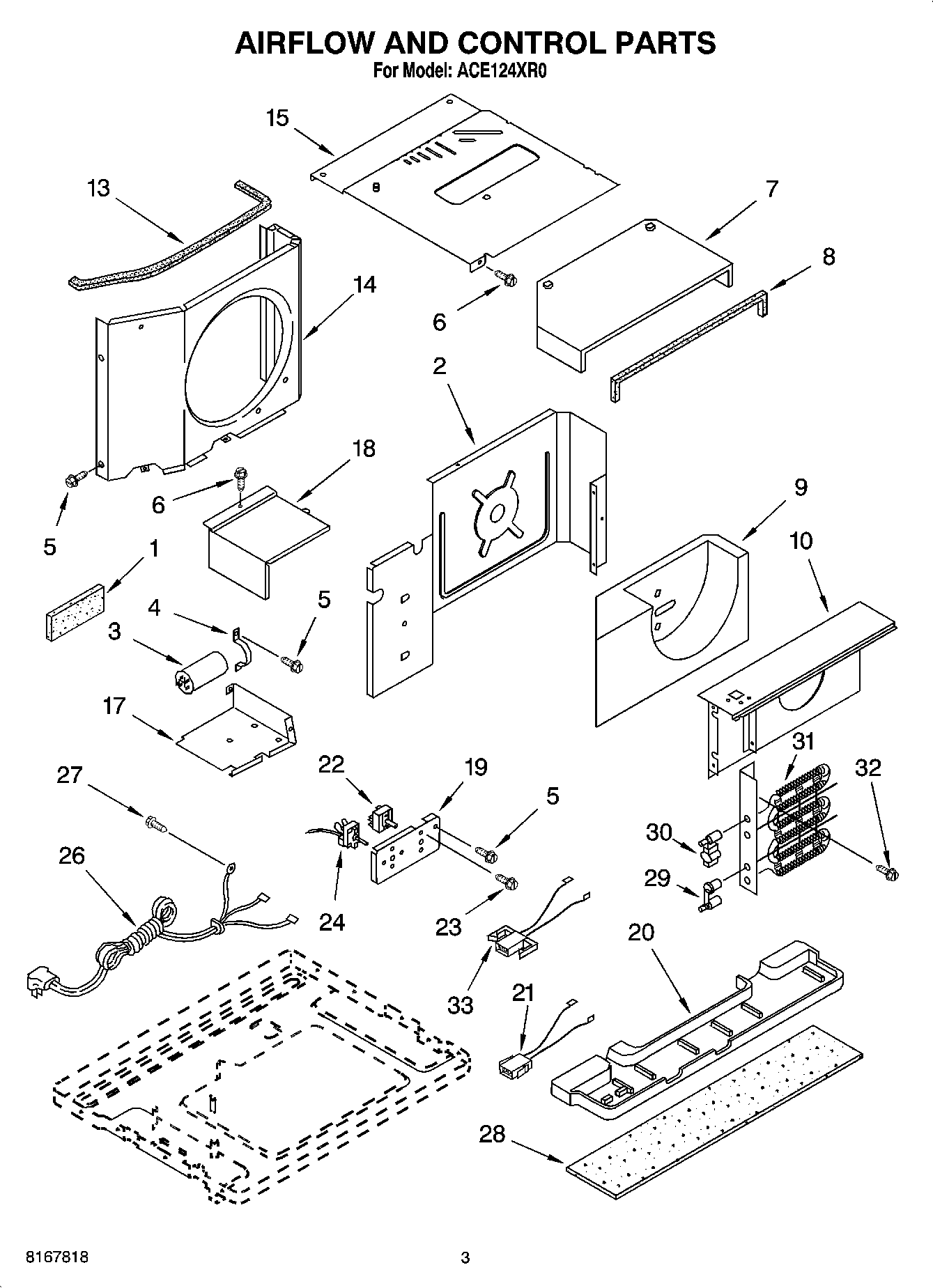

ACE124XR0 02 – AIR FLOW AND CONTROL PARTS

Written by

Products

Position	Product
1	Seal
2	Wall, Dividing
3	Capacitor, Running
4	Bracket, Capacitor
5	Screw, 8 x 3/8
6	WP489069 Whirlpool Compactor Screw
7	Hood, Air Housing
8	WP854334 Whirlpool Air Conditioner Sealing Strip
9	Housing, Air
10	Shroud, Evaporator
13	Seal, Condenser Shroud
14	Shroud, Condenser
15	Cover, Unit
17	Box, Control
18	Cover, Control Box
19	Panel, Control
20	Pan, Drain
21	Harness, Heater Plug
22	Switch, Rotary
23	Screw, 6-32 x .175
24	Thermostat
26	Cable, Appliance
28	Insulation, Drain Pan
29	Fuse, Link
30	Limit, Switch
31	Element, Heating
32	Screw 8-18 x .295
33	Heater, Harness Receptacle
