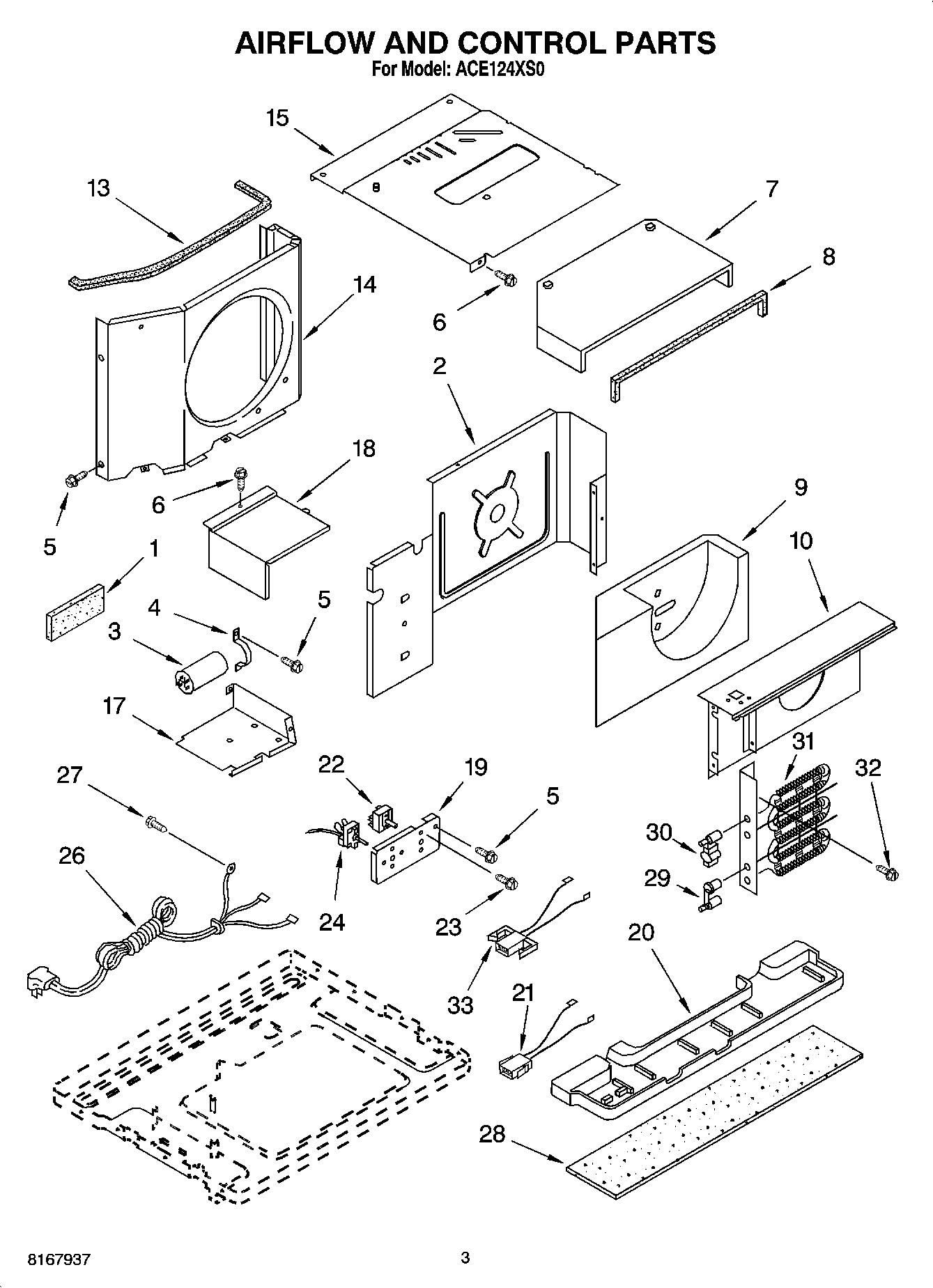

ACE124XS0 02 – AIR FLOW AND CONTROL PARTSadmin2025-04-26T10:52:04+00:00ACE124XS0 02 – AIR FLOW AND CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | Seal |
| 2 | Wall, Dividing |
| 3 | Capacitor, Running |
| 4 | Bracket, Capacitor |
| 5 | Screw, 8 x 3/8 |
| 6 | WP3196557 Whirlpool Screw |
| 7 | Hood, Air Housing |
| 8 | WP854334 Whirlpool Air Conditioner Sealing Strip |
| 9 | Housing, Air |
| 10 | Shroud, Evaporator |
| 13 | Seal, Condenser Shroud |
| 14 | Shroud, Condenser |
| 15 | Cover, Unit |
| 17 | Box, Control |
| 18 | Cover, Control Box |
| 19 | Panel, Control |
| 20 | Pan, Drain |
| 21 | Harness, Heater Plug |
| 22 | Switch, Rotary |
| 23 | Screw, 6-32 x .175 |
| 24 | Thermostat |
| 26 | Cable, Appliance |
| 28 | Insulation, Drain Pan |
| 29 | Fuse, Link |
| 30 | Limit, Switch |
| 31 | Element, Heating |
| 32 | Screw 8-18 x .295 |
| 33 | Heater, Harness Receptacle |
