ACE124XX0 02 – UNIT, LITERATUREadmin2025-04-26T10:50:07+00:00ACE124XX0 02 – UNIT, LITERATURE
Products
| Position | Product |
|---|
| Sheet, Tech |
| List, Repair Parts |
| Guide, Use And Care |
| Wiring Diagram |

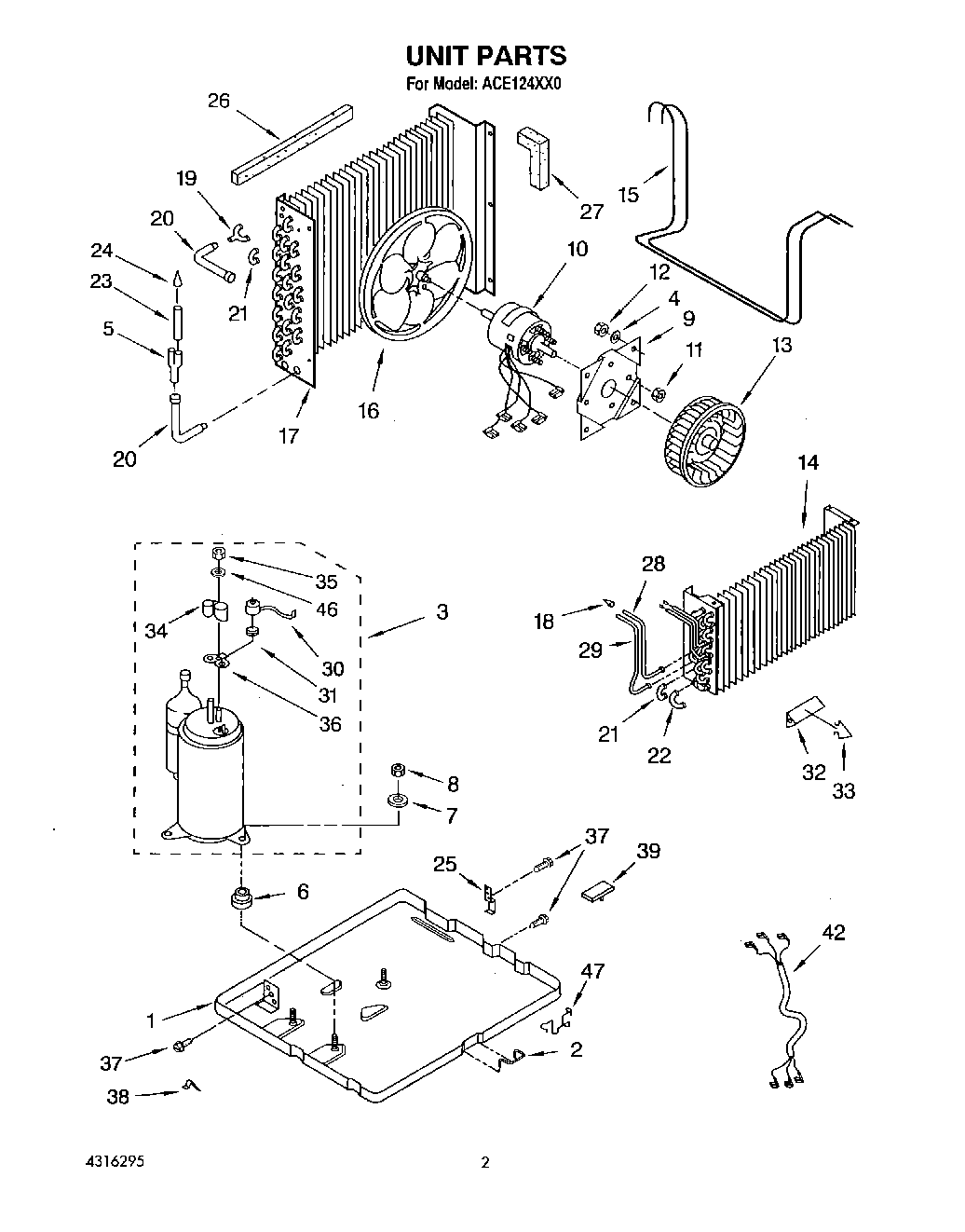

| 1 | Base |
| 2 | WPL 647971 |
| 3 | Compressor |
| 4 | Washer, Repair (4) |
| 5 | Tube, Flow Divider |
| 6 | WP950021 Whirlpool Grommet |
| 7 | WP120393 Whirlpool Washer Assembly |
| 9 | WPL 998024 |
| 10 | Motor, Fan |
| 11 | WP488130 Whirlpool Air Conditioner Nut |
| 12 | Nut, Hex (4) |
| 13 | Wheel, Blower |
| 14 | Evaporator |
| 15 | Tube, Restrictor (2) (Length 36.0``) |
| 16 | Fan, Blade |
| 17 | Condenser |
| 18 | Strainer |
| 19 | Bend, Return (3-Way) |
| 20 | Tube, 90~ Connect (2) |
| 21 | Bend, Return Evaporator (11) |
| 22 | Bend, Return Evaporator (4) |
| 23 | Tube, Outlet (Includes No. 26) |
| 24 | Strainer |
| 25 | WPL 647824 |
| 26 | WPL 649609 |
| 27 | WPL 649610 |
| 28 | Tube, Outlet (Front) |
| 29 | Tube, Outlet (Rear) |
| 30 | Overload |
| 31 | Spring, Overload |
| 32 | Anticipator |
| 33 | Clip, Anticipator |
| 34 | WP950036 Whirlpool Cover Assembly |
| 35 | WP950027 Whirlpool Mounting Nut |
| 36 | WP950035 Whirlpool Cover Gasket |
| 37 | WP489069 Whirlpool Compactor Screw |
| 38 | Clamp, Restrictor Tube |
| 39 | WPL 647850 |
| 42 | Harness, Wiring |
| 45 | WP488826 Whirlpool Nut |
| 46 | Gasket, Nut |
| 47 | Clip, Mtg. (2) (Base to Front) |
