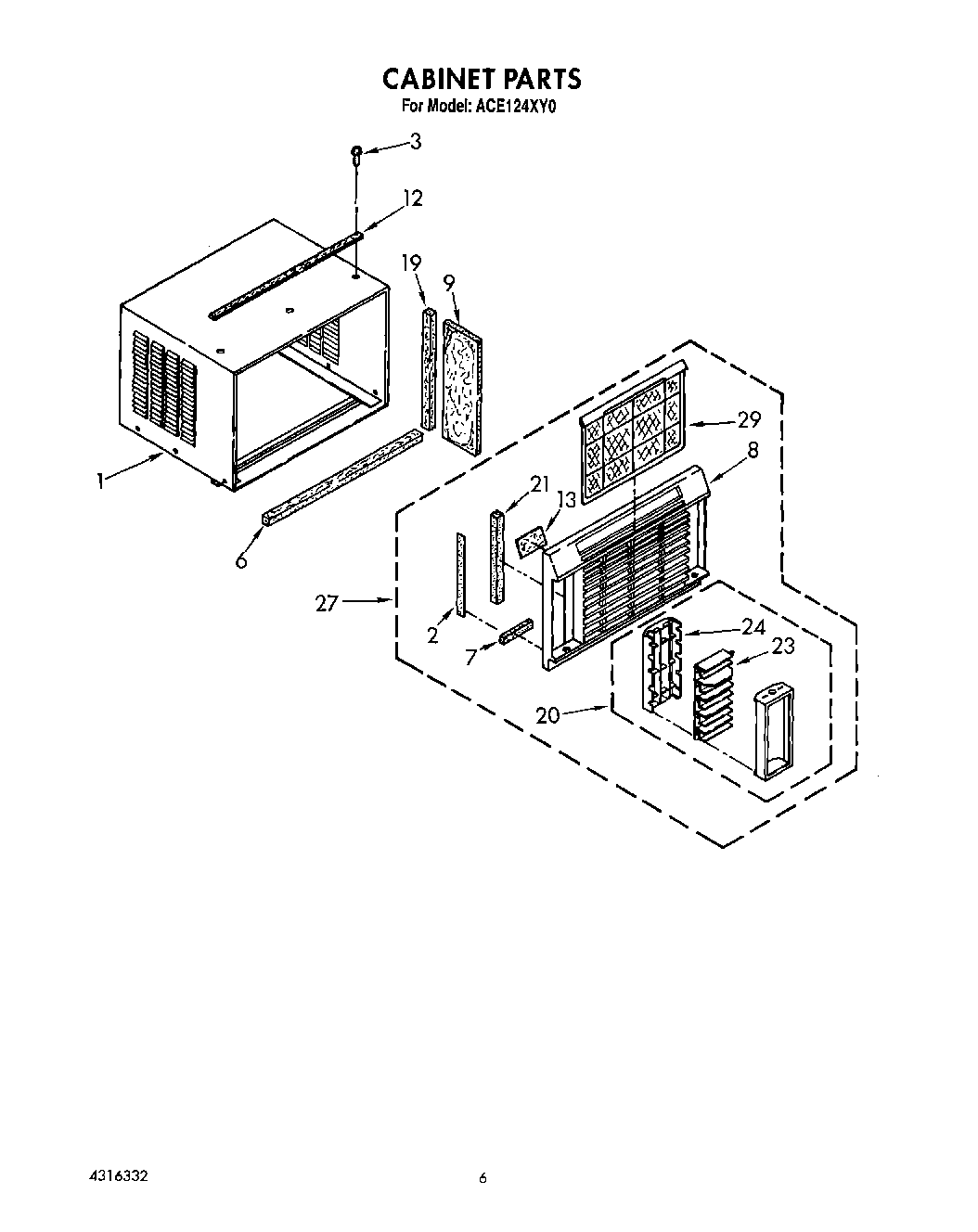

ACE124XY0 03 – CABINET PARTS

Written by

Products

Position	Product
1	Cabinet
2	Seal, Front – Sides (2)
3	WP489069 Whirlpool Compactor Screw
6	Seal
7	Seal, (2)
8	Cabinet Front
9	Insulation (2)
12	Seal, Cabinet Top
13	Seal, Front
19	Seal, Strip (2)
20	Cartridge, Complete
21	Seal, Side (2)
23	Horzontal Louver
24	Ribs, Vertical
27	Front, Assembly
29	Filter
