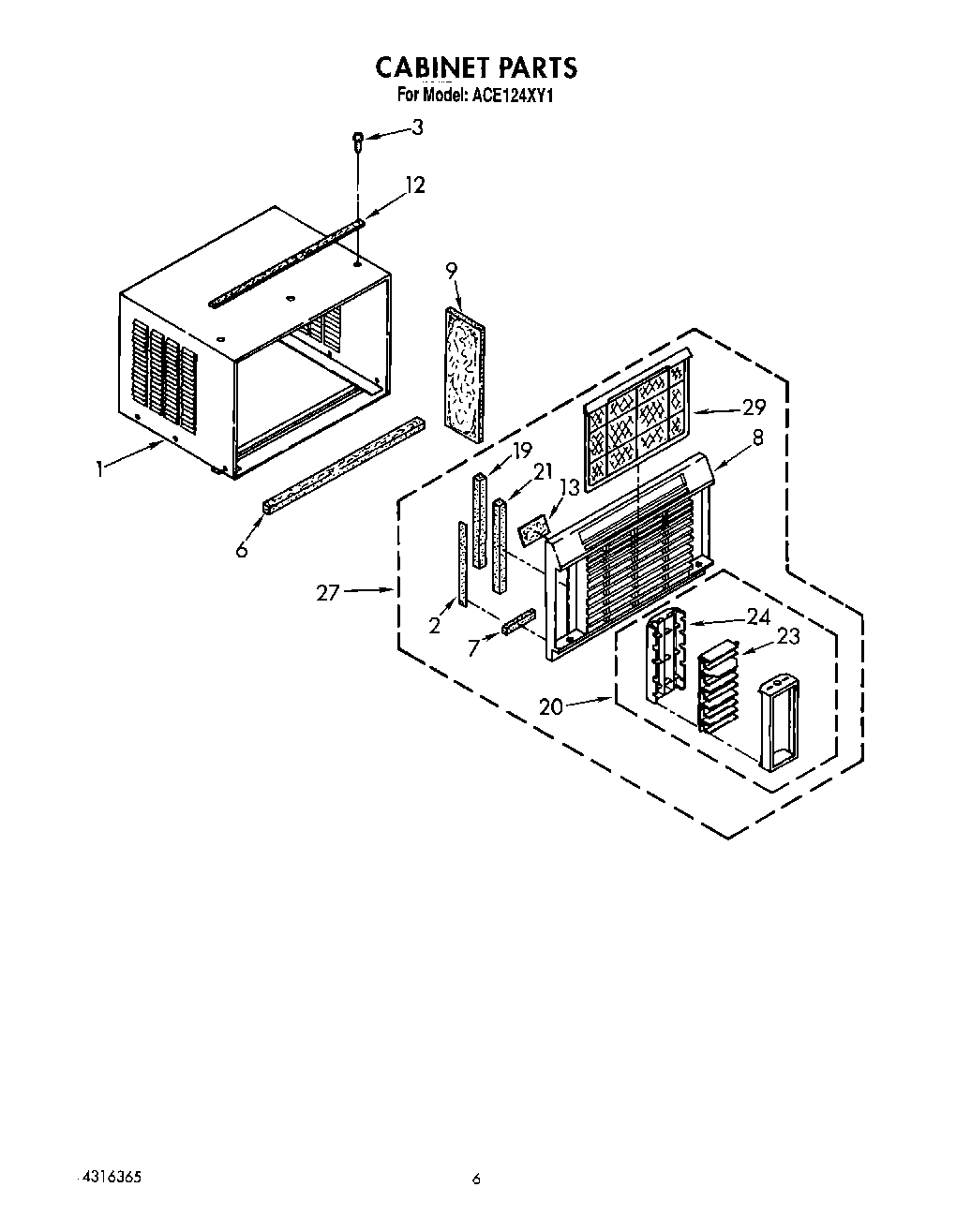

ACE124XY1 03 – CABINET PARTSadmin2025-04-26T10:50:43+00:00ACE124XY1 03 – CABINET PARTS
Products
| Position | Product |
|---|
| 1 | Cabinet |
| 2 | Seal, Front - Sides (2) |
| 3 | WP489069 Whirlpool Compactor Screw |
| 6 | Seal |
| 7 | Seal, (2) |
| 8 | Cabinet Front |
| 9 | Insulation, Cabinet Side |
| 12 | Seal, Cabinet Top |
| 13 | Seal, Front |
| 19 | Seal, Front |
| 20 | Cartridge, Complete |
| 21 | Seal, Side (2) |
| 23 | Horzontal Louver |
| 24 | Ribs, Vertical |
| 27 | Front, Assembly |
| 29 | Filter |
