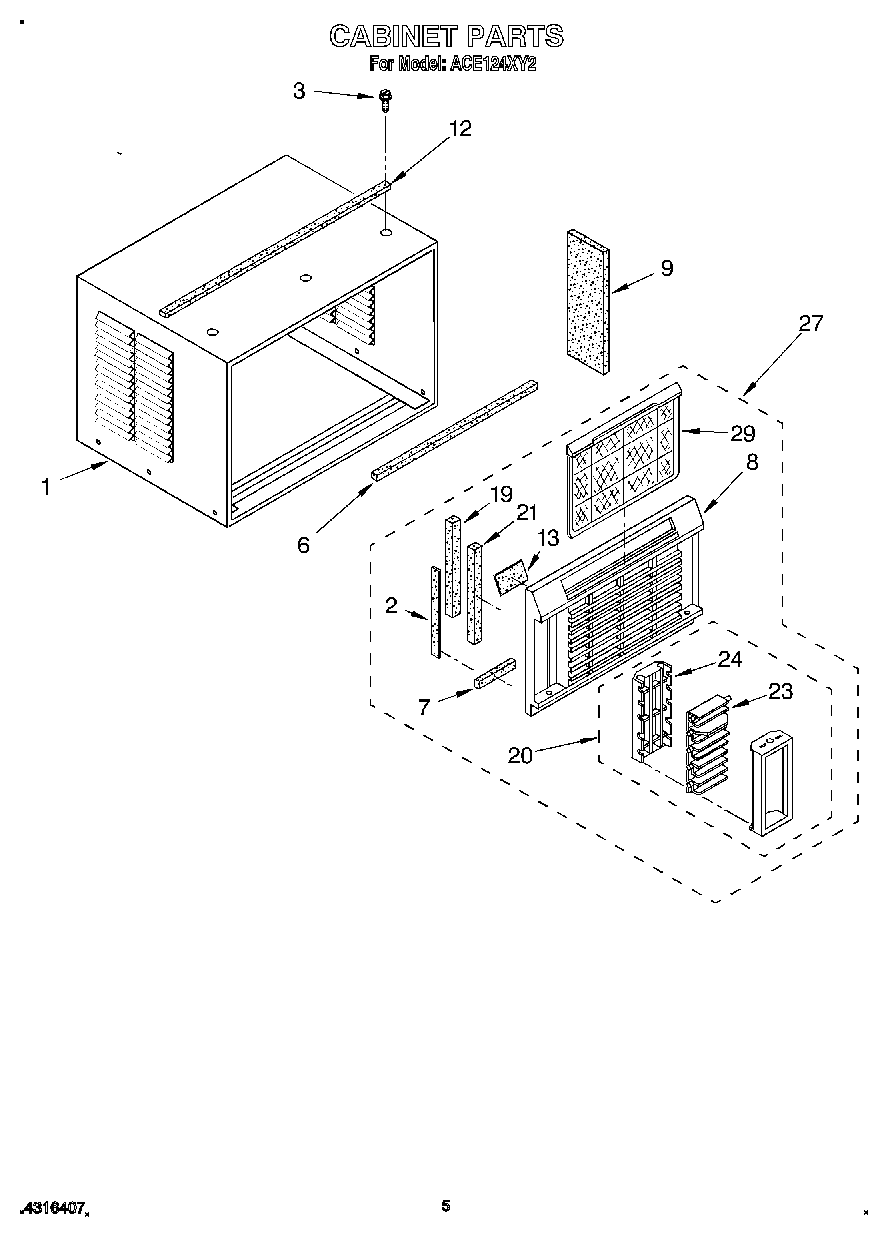

ACE124XY2 03 – CABINET

Written by

Products

Position	Product
1	Cabinet
2	Seal, Front – Sides (2)
3	WP489069 Whirlpool Compactor Screw
6	Seal, Strip (2)
7	Seal, (2)
8	Cabinet Front
9	Insulation (2)
12	Seal, Cabinet Top
13	Seal, Front
19	Seal, Front
20	Cartridge, Complete
21	Seal, Side (2)
23	Horzontal Louver
24	Ribs, Vertical
27	Front, Assembly
29	Filter
