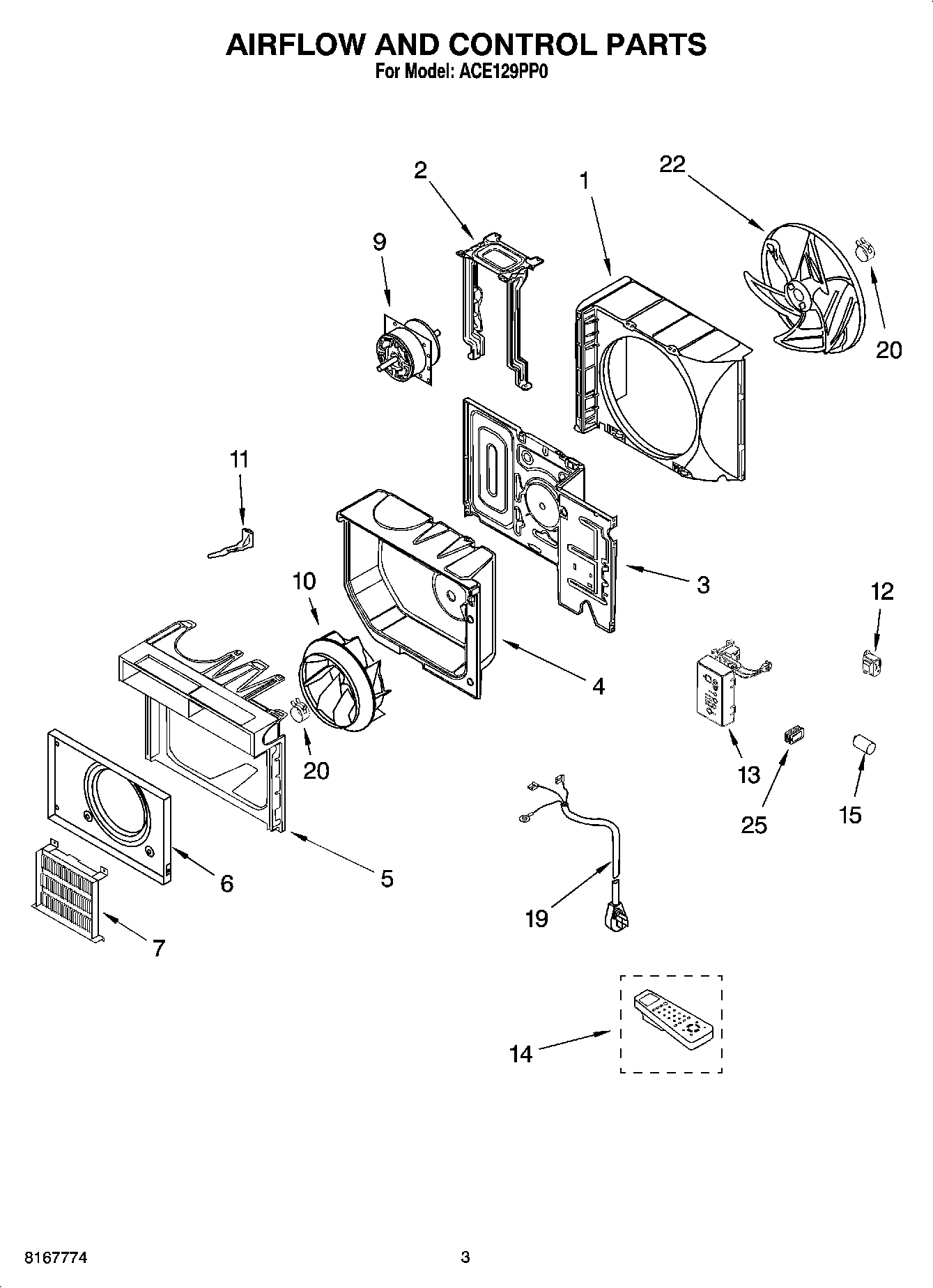

ACE129PP0 02 – AIRFLOW AND CONTROL PARTSadmin2025-04-26T10:50:59+00:00ACE129PP0 02 – AIRFLOW AND CONTROL PARTS
Products
| Position | Product |
|---|
| 1 | Shroud, Condenser |
| 2 | Mount, Motor |
| 3 | Wall, Dividing |
| 4 | Housing, Blower |
| 5 | Shroud, Evaporator |
| 6 | Insert, Shroud |
| 7 | Heater |
| 9 | Motor, Fan |
| 10 | Wheel, Blower |
| 11 | Door, Exhaust |
| 12 | Transformer |
| 13 | Control Assembly |
| 14 | Control, Remote |
| 15 | Capacitor |
| 19 | Cable, Appliance |
| 20 | Clamp |
| 22 | Blade Fan, Condenser |
| 25 | Relief, Strain |
