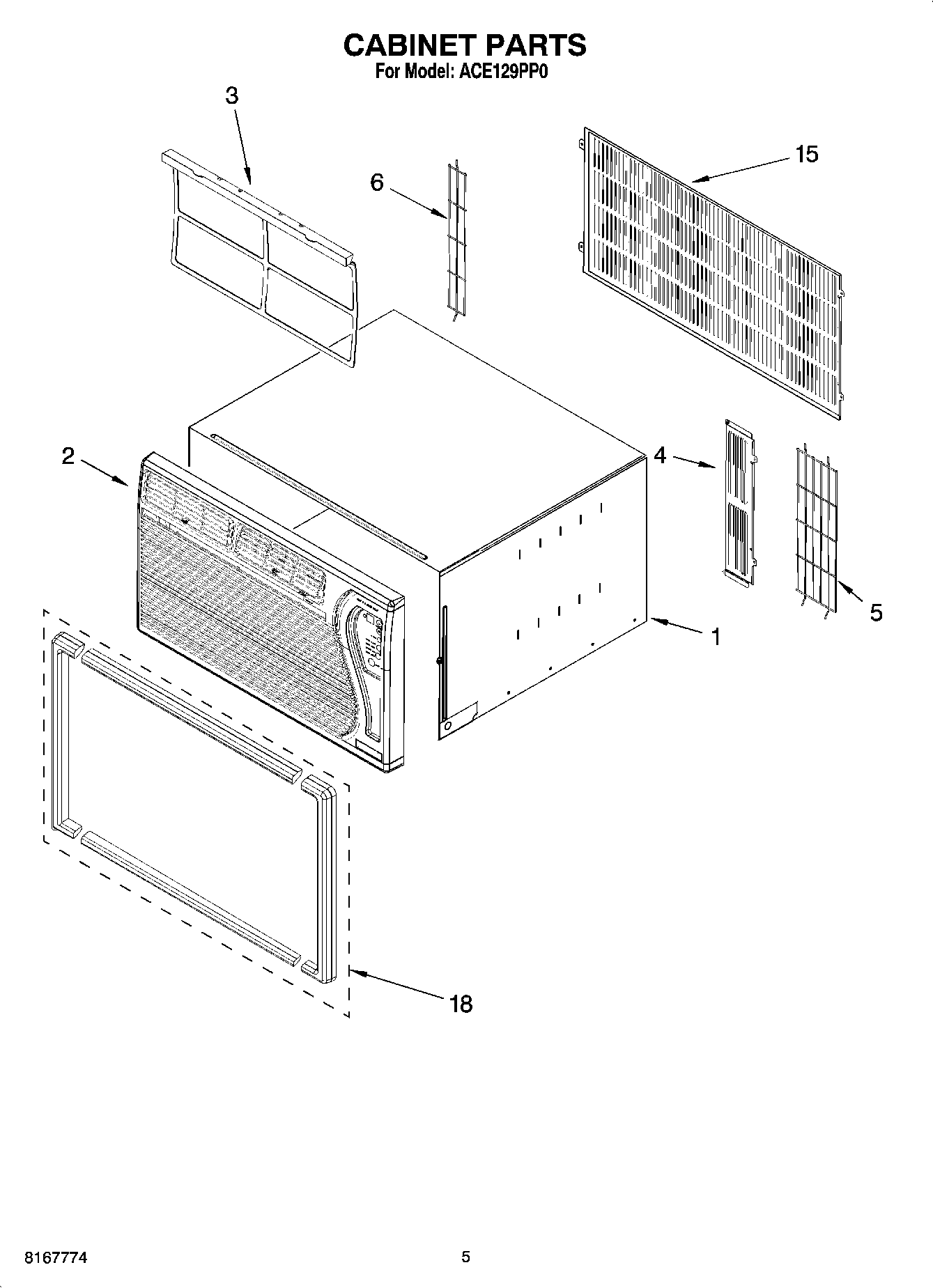

ACE129PP0 03 – CABINET PARTS

Products

Position	Product
1	Cabinet Assembly
2	Front Assembly (Includes Nameplate)
3	Filter, Air
4	Deflector, Air
5	Grille, Rear-Wire Large
6	Grille, Rear-Wire Small
15	Grille, Rear
18	Sleeve, Cabinet
18	Frame, Trim Assembly Kit (Includes Sides, Top and Bottom)
18	Following Parts Not Illustrated (Optional Parts Only)
