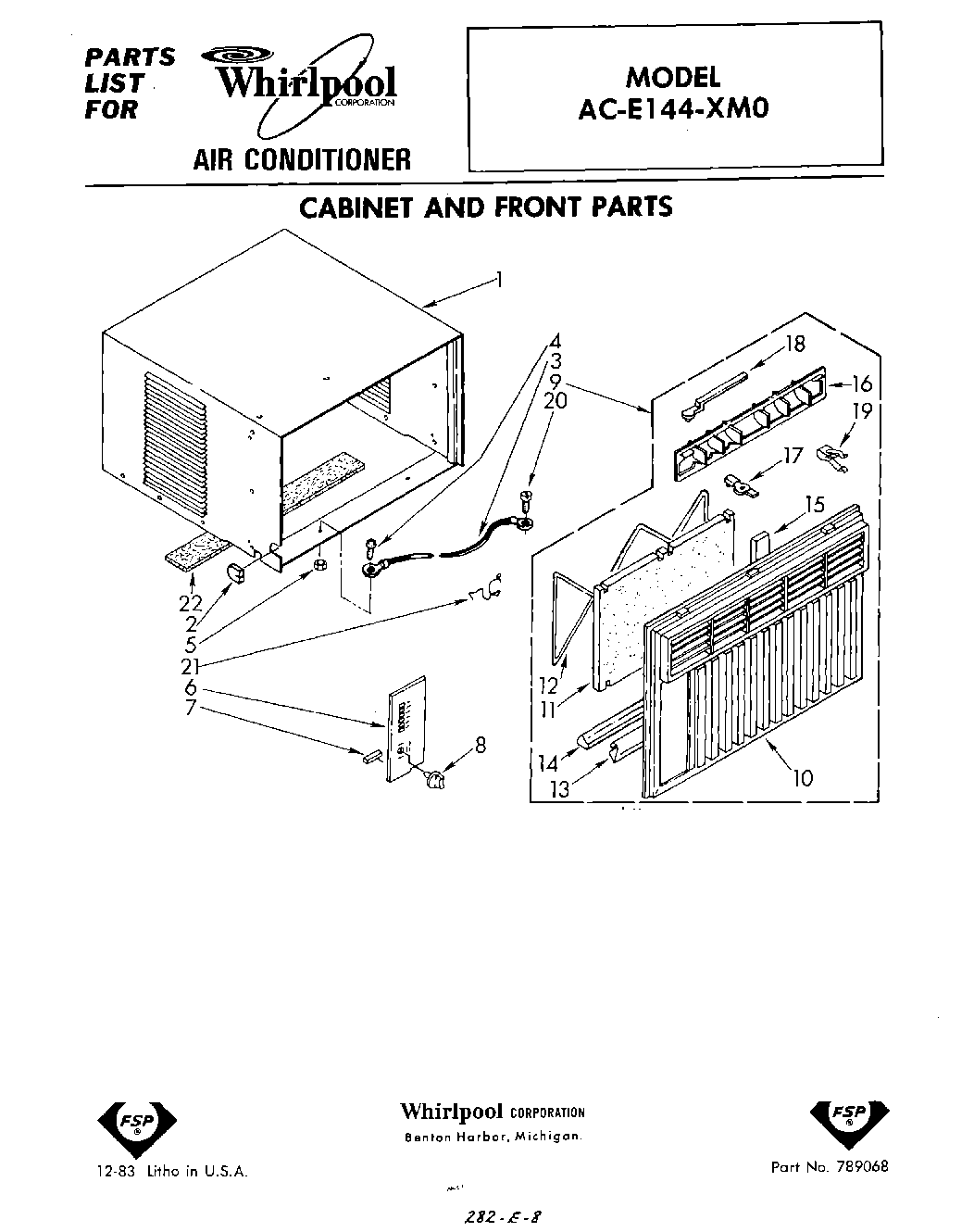

ACE144XM0 01 – SECTION

Products

PositionProduct
1Cabinet
2Grommet, Appliance Cable
3Wire, Ground
4Screw, 8 x 3/8
5WP486255 Whirlpool Air Conditioner Nut
6Plate, Escutcheon
7Spacer, Escutcheon Plate (3)
8Knob, Control
9Front Assembly, Cabinet (Complete)
10Front, Cabinet
11Filter
12Retainer, Filter
13WP854334 Whirlpool Air Conditioner Sealing Strip
14Seal
15Seal
16Louver, Vertical
17Handle, Vertical Louver (2)
18Link, Vertical Louver (2)
19Detent Spring (2)
20Screw, 8 x 3/8
21Clip, Mtg. (2) (Base to Front)
22Seal
