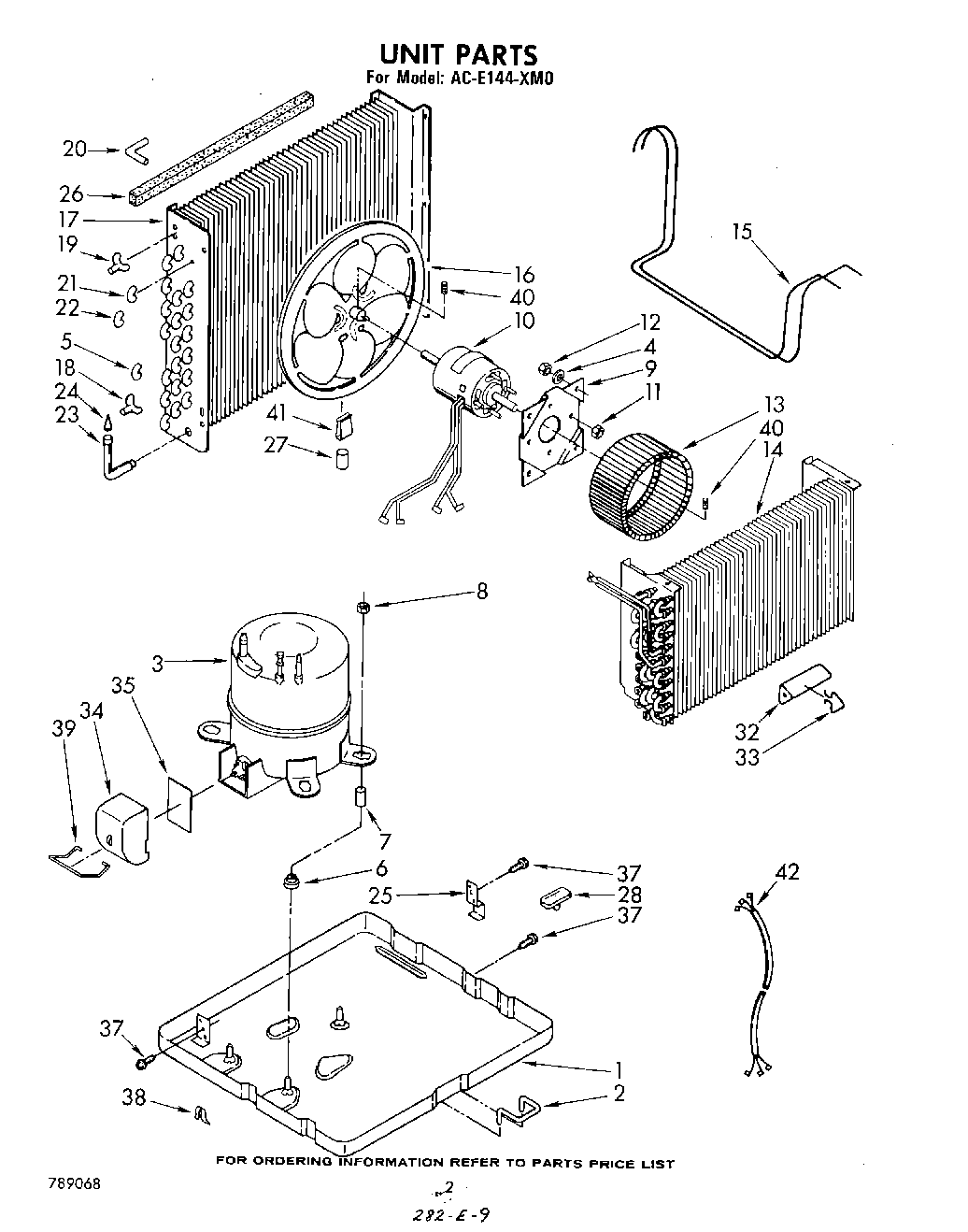

ACE144XM0 02 – SECTION

Products

Position	Product
1	Base
2	WPL 647971
3	Compressor
4	Washer, Repair (4)
5	Bend, Return Evaporator (4)
6	Grommet, Compressor (3)
7	Sleeve, Compressor (3)
8	Locknut (3)
9	WPL 998024
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Nut, Hex (4)
13	Wheel, Blower
14	Evaporator
15	Tube, Restrictor (2) (33“ Length)
16	Blade, Fan
17	Condenser Assembly
18	Bend, Return 3-Way
19	Bend, Return (3-Way)
20	Tube Inlet
21	Bend, Return Evaporator (11)
22	Bend, Return Evaporator (4)
23	Tube & Strainer (Includes Item 23)
24	Strainer
25	WPL 647824
26	WP854334 Whirlpool Air Conditioner Sealing Strip
27	Dampener
28	WPL 647850
32	Anticipator
33	Clip, Anticipator
34	Cover, Terminal
35	Gasket, Terminal Cover
37	WP489069 Whirlpool Compactor Screw
38	Clamp, Restrictor Tube
39	Strap, Terminal Cover
40	Setscrew, 5/16 x 1/4
41	Clip, Balancing
42	No Drip Tape (For Sweating Tubes)
42	VALVE, ACCESS (5/8“)
42	Oil, Turbine 1 Fl. Oz.
42	978026 Whirlpool Refrigerator Primary Valve
42	Kit, Compressor Start
42	978030 Whirlpool Refrigerator Valve
42	978027 Whirlpool Refrigerator Primary Valve
42	WP978025 Whirlpool Refrigerator Valve
42	Kit, Evaporator Repair (Aluminum Epoxy)
42	Harness, Wiring
42	WPL 484220
42	VALVE, ACCESS (1/2“)
