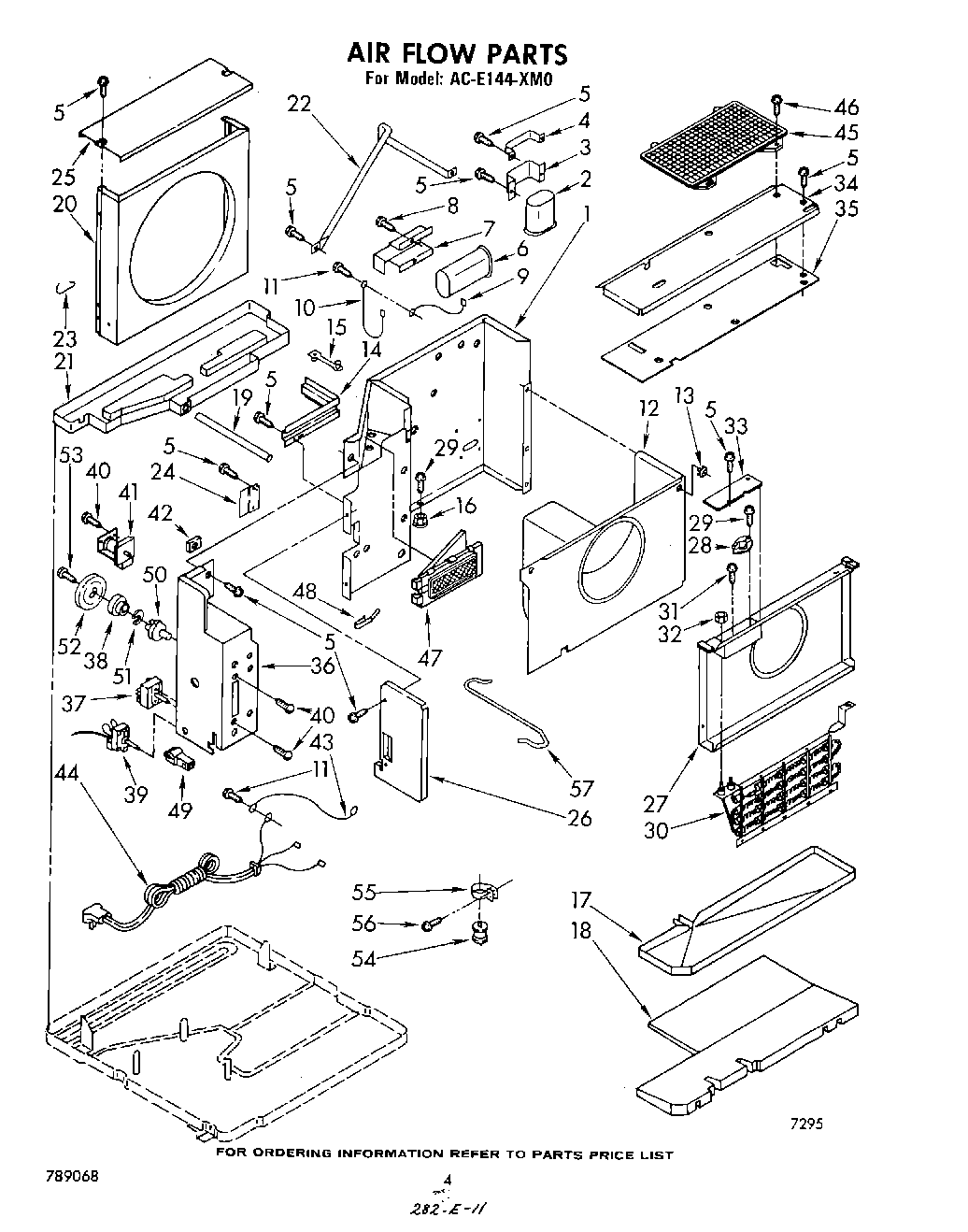

ACE144XM0 03 – SECTION
Written by
in
ACE144XM0 03 – SECTION
Products
Position
Product
1
Wall, Dividing (Requires 649939 Insulation)
2
Capacitor, Running
3
Bracket (Lower)
4
Bracket (Upper)
5
WP489069 Whirlpool Compactor Screw
6
Capacitor, Fan Motor
7
Bracket, Fan Motor Capacitor
9
Ground Wire
10
Wire, Ground
11
WPW10141604 Whirlpool Screw
12
Housing, Blower Wheel
13
Fastener, snap (2)
14
Channel, Wiring
15
Clip, Wiring
16
Clip, Speed
17
Pan, Evaporator Condensate
18
Insulation, Condensate Pan
19
Tube, Condensate
20
Shroud, Condenser
21
Pan, Condenser Condensate
22
Support, Unit
23
Clip, Shroud (3)
24
Cover, Wall
25
Cover, Shroud (Condenser)
26
Dividing Wall Assembly, L.S.
27
Deflector, Heat Assembly
28
Switch, Limit
29
Screw, 8 x 3/8
30
Heater, Air
31
WP488234 Whirlpool Air Conditioner Screw
32
WP488826 Whirlpool Nut
33
Cover, Wire Enclosure
34
Cover, Evaporator
35
Insulation, Evaporator Cover
36
Box, Control Assembly
37
Switch, Rotary
38
Bushing, Shaft
39
Control, Temperature
40
Screw, 6-32 x .175
41
Contactor
42
Grommet
43
Wire, Ground
44
Cable, Appliance
45
Guard, Evaporator Impeller
46
WP488729 Whirlpool Refrigerator Door Screw
47
Door, Exhaust
48
Spring, Door
49
Insulator, Terminal
50
Shaft, Control
51
Washer
52
Cam, Exhaust
53
Screw, 7-18 x 5/8
54
WPL 949177
55
Clamp, Mounting
56
WP965173 Whirlpool Dishwasher Screw
57
WPL 950807
57
WPL 951138
57
WPL 950357
57
WPL 789068
57
212643 Whirlpool Refrigerator Permagum Sealer
57
WPL 951141
57
WPL 647848
57
WPL 647847
57
WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
57
Wire, 25“ Roll (Black 12 GA.)
57
Wire, 25“ Roll (White 12 GA.)
57
WPL 799351
57
Wire, Red, (25 Ft.)
57
Insulation, Cabinet (Top)
57
Wire, C
57
Lacquer, Starlight Gray (1/2 Pt. Uncut)
←
