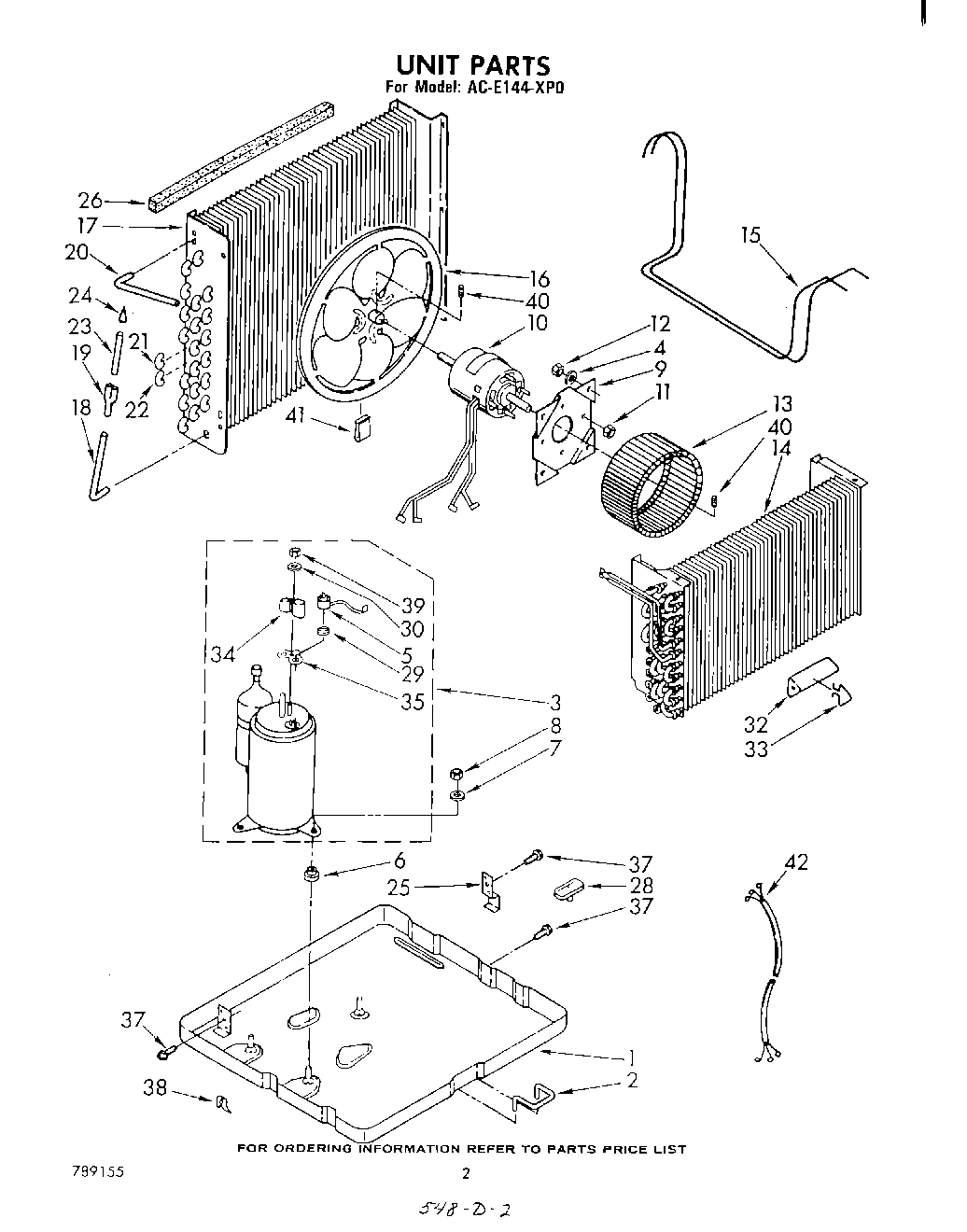

ACE144XP0 02 – SECTION

Products

Position	Product
1	Base
2	WPL 647971
3	Compressor
4	Washer, Repair (4)
6	WP950021 Whirlpool Grommet
7	WP120393 Whirlpool Washer Assembly
9	WPL 998024
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Nut, Hex (4)
13	Wheel, Blower
14	Evaporator
15	Tube, Restrictor (2) (33.0“ Length)
16	Fan, Blade
17	Condenser
18	Tube, Outlet
19	Tube, Flow Divider
20	Tube Inlet
21	Bend, Return Evaporator (11)
22	Bend, Return Evaporator (4)
23	Tube & Strainer (Includes Item 23)
24	Strainer
25	WPL 647824
26	WP854334 Whirlpool Air Conditioner Sealing Strip
28	WPL 647850
29	Spring, Overload
32	Anticipator
33	Clip, Anticipator
34	WP950036 Whirlpool Cover Assembly
35	WP950035 Whirlpool Cover Gasket
37	WP489069 Whirlpool Compactor Screw
38	Clamp, Restrictor Tube
39	WP950027 Whirlpool Mounting Nut
40	Setscrew, 5/16 x 1/4
41	Clip, Balancing
42	Oil, Turbine 1 Fl. Oz.
42	978026 Whirlpool Refrigerator Primary Valve
42	978030 Whirlpool Refrigerator Valve
42	WP978025 Whirlpool Refrigerator Valve
42	VALVE, ACCESS (1/2“)
42	978027 Whirlpool Refrigerator Primary Valve
42	VALVE, ACCESS (5/8“)
42	No Drip Tape (For Sweating Tubes)
42	Kit, Evaporator Repair (Aluminum Epoxy)
42	Harness, Wiring
