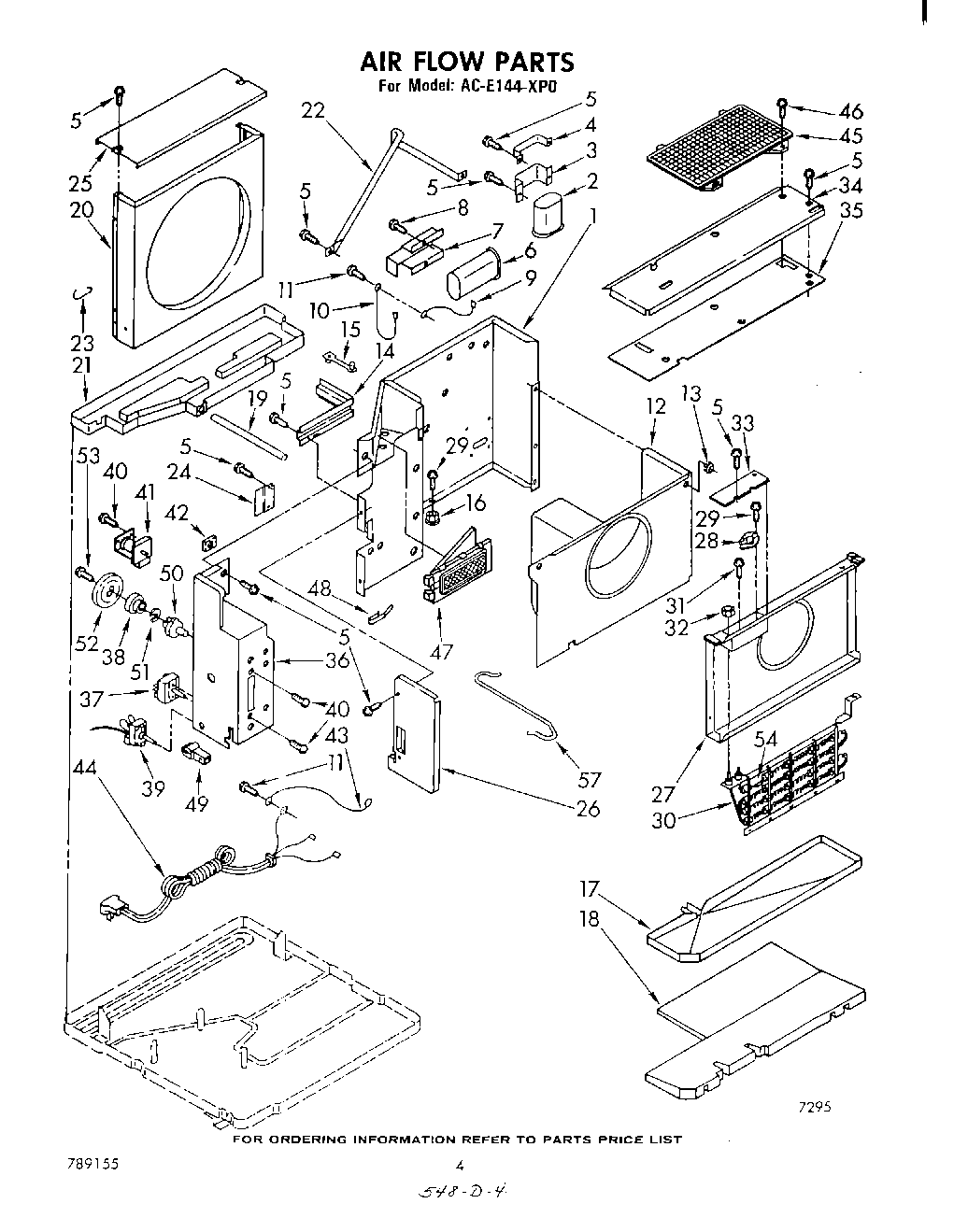

ACE144XP0 03 – SECTION

Products

Position	Product
1	Wall, Dividing (Requires 649939 Insulation)
2	Capacitor, Running
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Capacitor, Fan Motor
7	Bracket, Fan Motor Capacitor
9	Ground Wire
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Housing, Blower Wheel
13	Fastener, snap (2)
14	Channel, Wiring
15	Clip, Wiring
16	Clip, Speed
17	Pan, Evaporator Condensate
18	Insulation, Condensate Pan
19	Tube, Condensate
20	Shroud, Condenser
21	Pan, Condenser Condensate
22	Support, Unit
23	Clip, Shroud (3)
24	Cover, Wall
25	Cover, Shroud (Condenser)
26	Dividing Wall Assembly, L.S.
27	Deflector, Heat Assembly
28	Switch, Limit
29	Screw, 8 x 3/8
30	Heater, Air
31	WP488234 Whirlpool Air Conditioner Screw
32	WP488826 Whirlpool Nut
33	Cover, Wire Enclosure
34	Cover, Evaporator
35	Insulation, Evaporator Cover
36	Box, Control Assembly
37	Switch, Rotary
38	Bushing, Shaft
39	Control, Temperature
40	Screw, 6-32 x .175
41	Contactor
42	Grommet
43	Wire, Ground
44	Cable, Appliance
45	Guard, Evaporator Impeller
46	WP488729 Whirlpool Refrigerator Door Screw
47	Door, Exhaust
48	Spring, Door
49	Insulator, Terminal
50	Shaft, Control
51	Washer
52	Cam, Exhaust
53	Screw, 7-18 x 5/8
54	Fuse, Heater
57	Insulation, Cabinet (Top)
57	212643 Whirlpool Refrigerator Permagum Sealer
57	WPL 950357
57	Cover, Winter (27 x 19 x 6 to 27“)
57	WPL 799351
57	WPL 789155
57	WPL 951405
57	WPL 647847
57	Lacquer, Starlight Gray (1/2 Pt. Uncut)
57	WPL 647848
57	Wire, Red, (25 Ft.)
57	Wire, 25“ Roll (White 12 GA.)
57	Wire, 25“ Roll (Black 12 GA.)
57	Wire, C
57	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
57	WPL 951407
