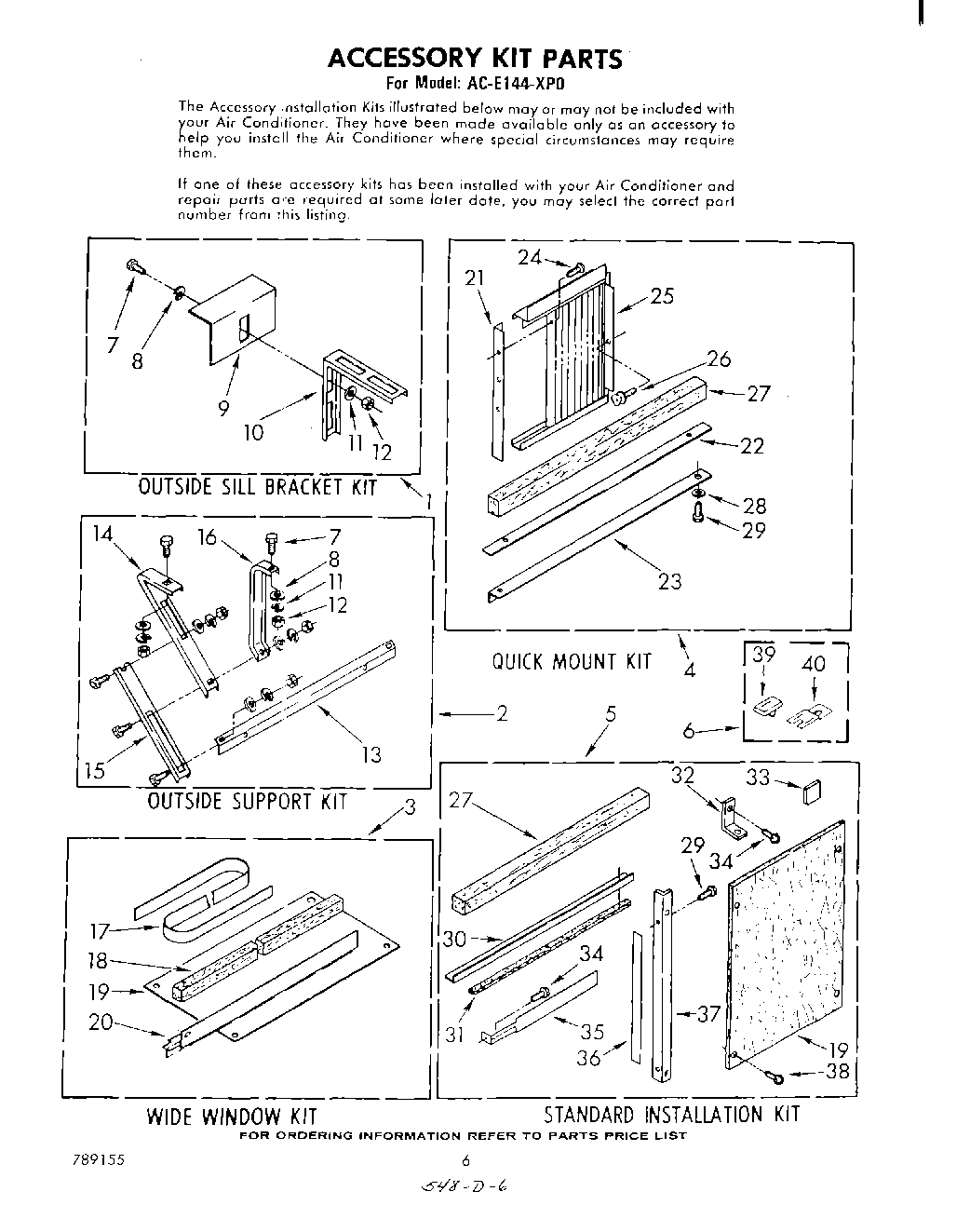

ACE144XP0 04 – SECTION

Products

Position	Product
1	Kit, Outside Sill Bracket
2	Kit, Outside Support
3	Kit, Wide Window
4	Kit, Quick Mount
5	Kit, Standard Installation
6	Kit, Condensate Cup
7	Bolt, 1/4 x 3/4 (6)
8	WP120393 Whirlpool Washer Assembly
9	Bracket, Sill Mounting (2)
10	Bracket, Rail Support (2)
11	Lockwasher (6)
12	Nut, Hex (6)
13	Bracket, Support
14	Support, Cabinet (2)
15	Extension, Support (2)
16	Retainer, Cabinet (2)
18	Gasket, Meeting Rail
19	Bracket, R.S.
20	Bracket, Mounting (R.S.)
20	Bracket, Mounting (L.S.)
21	Retainer, Curtain (2)
22	Strip, Seal
23	Channel, Bottom
24	Screw, 8 x 7/16
25	Curtain Housing Assembly, L.S.
25	Curtain Housing Assembly, R.S.
26	Thumbscrew (2)
27	Gasket, Meeting Rail
28	Washer (2)
29	WP308685 Whirlpool Microwave Screw
30	Angle, Top
31	Strip, Seal
32	Bracket
33	Spacer, Block (4)
34	Screw, Wood 8-15 x .750
35	Bracket, L.S.
35	Bracket, R.S.
36	Strip, Seal
37	Angle (2)
38	WP965173 Whirlpool Dishwasher Screw
39	WPL 647850
40	Instructions, Installation (Kit, Condensate Cup)
40	Instructions, Installation (Kit, Outside Support)
40	Instructions, Installation (Outside Sill Kit)
40	Instructions, Installation (Kit, Wide Window)
40	Instructions, Installation (Kit, Quick Mount)
40	Support, Cup
40	Instructions, Installation (Kit, Standard Installation)
