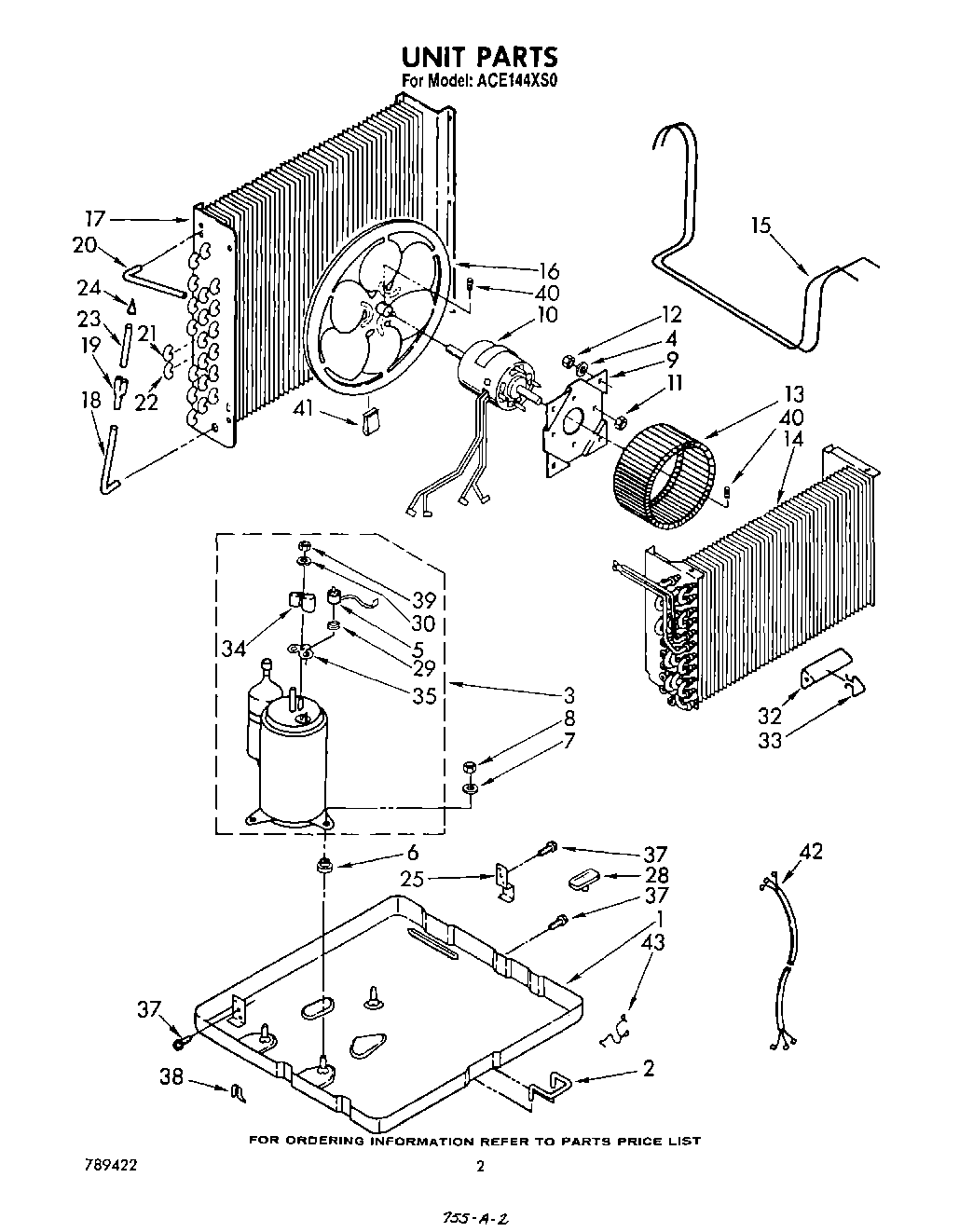

ACE144XS0 02 – UNIT

Products

Position	Product
	Guide, Energy
	List, Repair Parts
	WPL LIT951405
	Guide, Use And Care
1	Base
2	WPL 647971
3	Compressor Assembly
4	Washer, Repair (4)
5	Overload
6	WP950021 Whirlpool Grommet
7	WP120393 Whirlpool Washer Assembly
9	WPL 998024
10	Motor, Fan
11	WP488130 Whirlpool Air Conditioner Nut
12	Nut, Hex (4)
13	Wheel, Blower
14	Evaporator
15	Tube, Restrictor (2) (33.0“ Length)
16	Fan, Blade
17	Condenser
18	Tube, Outlet
19	Tube, Flow Divider
20	Tube Inlet
21	Bend, Return Evaporator (11)
22	Bend, Return Evaporator (4)
23	Tube & Strainer (Includes Item 23)
24	Strainer
25	WPL 647824
28	WPL 647850
29	Spring, Overload
32	Anticipator
33	Clip, Anticipator
34	WP950036 Whirlpool Cover Assembly
35	WP950035 Whirlpool Cover Gasket
37	WP489069 Whirlpool Compactor Screw
38	Clamp, Restrictor Tube
39	WP950027 Whirlpool Mounting Nut
40	Setscrew, 5/16 x 1/4
41	Clip, Fan Balancing
42	Harness, Wiring
43	Clip, Mtg. (2) (Base to Front)
