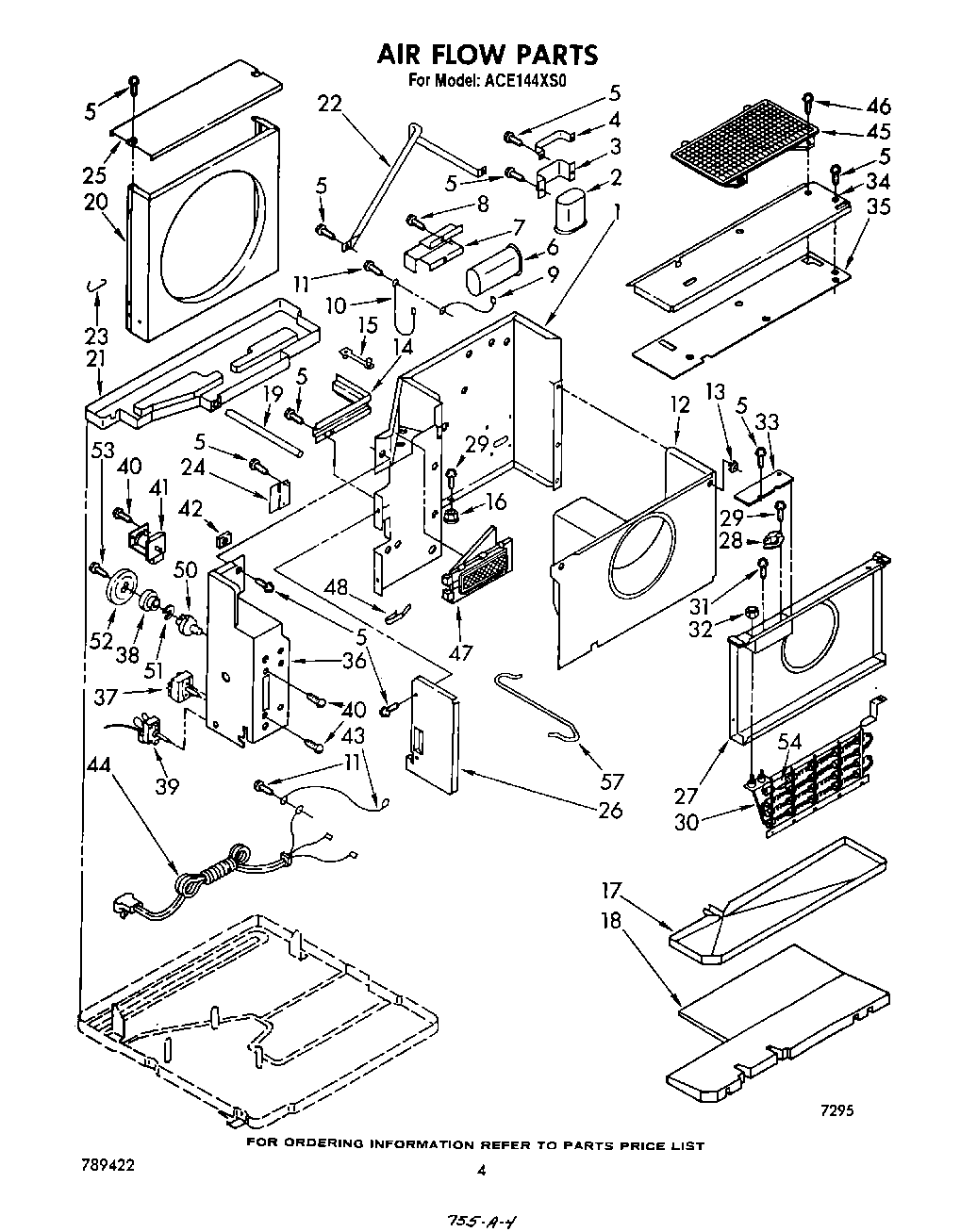

ACE144XS0 03 – AIRFLOW

Products

Position	Product
1	Wall, Dividing (Requires 649939 Insulation)
2	Capacitor, Running
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
6	Capacitor, Fan
7	Bracket, Fan Motor Capacitor
9	Ground Wire
10	Wire, Ground
11	WPW10141604 Whirlpool Screw
12	Housing, Blower Wheel
13	Fastener, snap (2)
14	Channel, Wiring
15	Clamp, Cable
16	Clip, Speed
17	Pan, Evaporator Condensate
18	Insulation, Condensate Pan
19	Tube, Condensate
21	Pan, Condenser Condensate
22	Support, Unit
23	Clip, Shroud (3)
24	Cover, Wall
25	Shroud, Condenser
26	Dividing Wall Assembly, L.S.
27	Deflector, Heat Assembly
28	Switch, Limit
29	Screw, 8 x 3/8
30	Heater, Air
31	WP488234 Whirlpool Air Conditioner Screw
32	WP488826 Whirlpool Nut
33	Cover, Wire Enclosure
34	Cover, Evaporator
35	Insulation, Evaporator Cover
36	Box, Control Assembly
37	Switch, Rotary
38	Bushing, Shaft
39	Control, Temperature
40	Screw, 6-32 x .175
41	Contactor
42	Grommet
43	Wire, Ground
44	Cable, Appliance
45	Guard, Evaporator Impeller
46	WP488729 Whirlpool Refrigerator Door Screw
47	Door, Exhaust
48	Spring, Door
50	Shaft, Control
51	Washer
52	Cam, Exhaust
53	WP98165 Whirlpool Screw
54	Fuse, Heater
57	Wire, C
