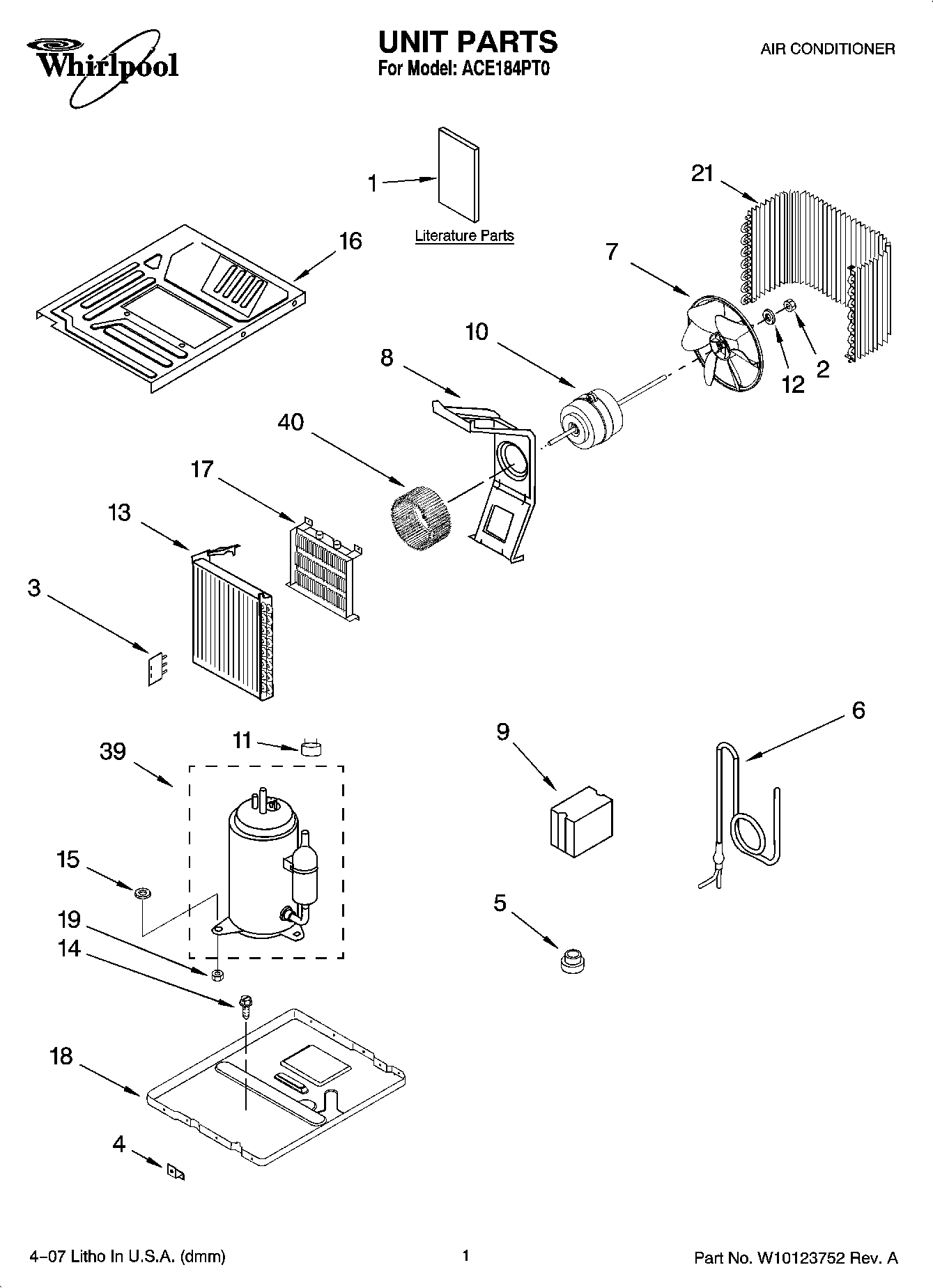

ACE184PT0 01 – UNIT PARTS

Products

Position	Product
1	Wiring Diagram
1	Use & Care Guide
1	Energy Guide
2	Nut W/Washer
3	Support, Tube Sensor
4	CLIP
5	Drain Plug
6	Tube, Restrictor
7	Blade, Fan
8	Bracket, Fan Motor
9	Relay
10	Motor, Fan
11	OVERLOAD
12	WASHER
13	EVAPORATOR
14	W11245710 Whirlpool Refrigerator Screw
15	WP950035 Whirlpool Cover Gasket
16	Cover, Evaporator
17	HEATER
18	BASE
19	Nut W/Washer
21	CONDENSER
39	Compressor Assy.
40	Wheel, Blower
40	REFRIGERANT CHARGE 27.76 oz.
