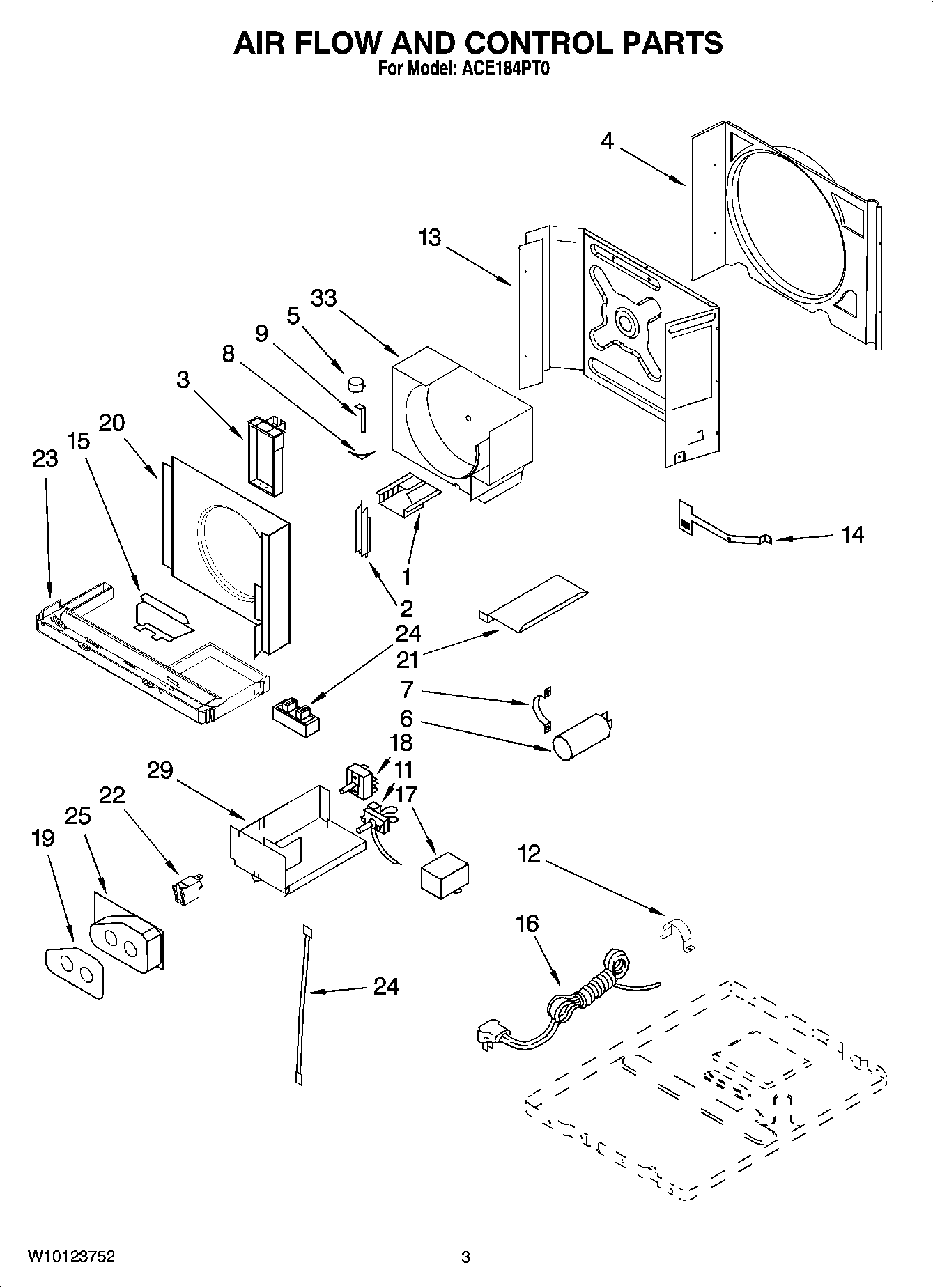

ACE184PT0 02 – AIR FLOW AND CONTROL PARTS

ACE184PT0 02 – AIR FLOW AND CONTROL PARTS

Written by

in

ACE184PT0 02 – AIR FLOW AND CONTROL PARTS

Products

Position	Product
1	Housing, Air
2	Louver
3	Cartridge, Louver
4	Shroud, Evaporator
5	Motor, Louver
6	Capacitor, Running
7	Bracket, Capacitor
8	Linkage, Louver
9	Linkage, Louver
11	THERMOSTAT
12	Wire Clamp
13	Wall, Dividing
14	Door, Exhaust
15	Shield
16	Cord, Appliance
17	CAPACITOR
18	Switch
19	ESCUTCHEON
20	Shroud, Evaporator
21	Cover, Air Duct
22	Switch
23	Pan, Evaporator
24	Terminal Board
25	Cover, Control
29	Box, Control
33	Housing, Air
