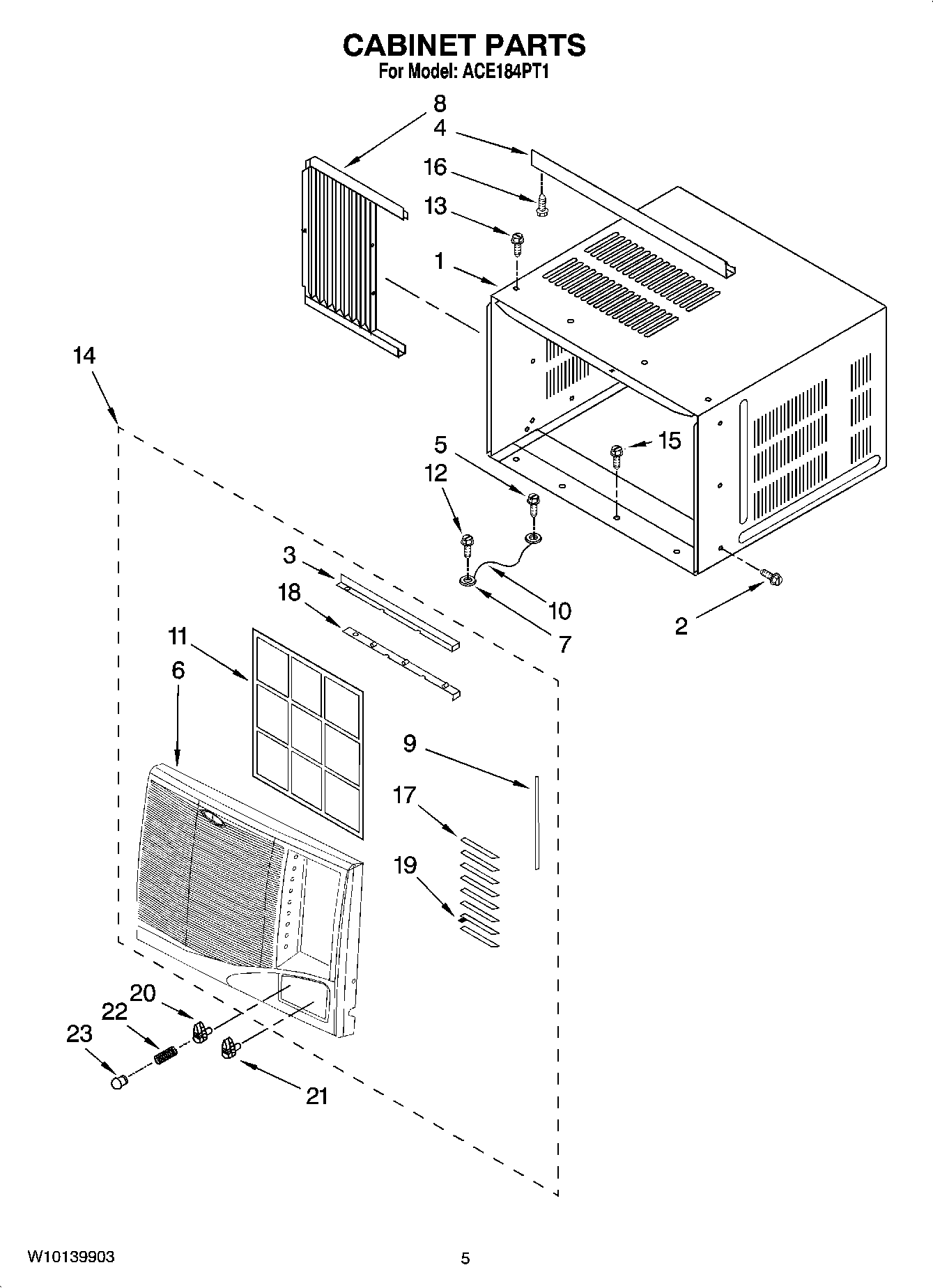

ACE184PT1 03 – CABINET PARTS

Products

Position	Product
1	CABINET
2	SCREW
3	Membrane
4	Channel, Top
5	SCREW
6	Front, Cabinet
7	WASHER
8	Curtain Assembly Right & Left Side
9	Guide, Linkage
10	Ground Wire
11	Filter
12	SCREW
13	Screw (8)
14	Front, Cabinet Assembly
15	SCREW
16	Screw
17	Guide, Louver
18	Guide, Filter (Up)
18	Guide, Filter (Down)
19	Guide, Louver
20	Knob (Left)
21	Knob (Right)
22	SPRING
23	Button
