ACE184XD0 03 – CABINET

ACE184XD0 03 – CABINET

Written by

in

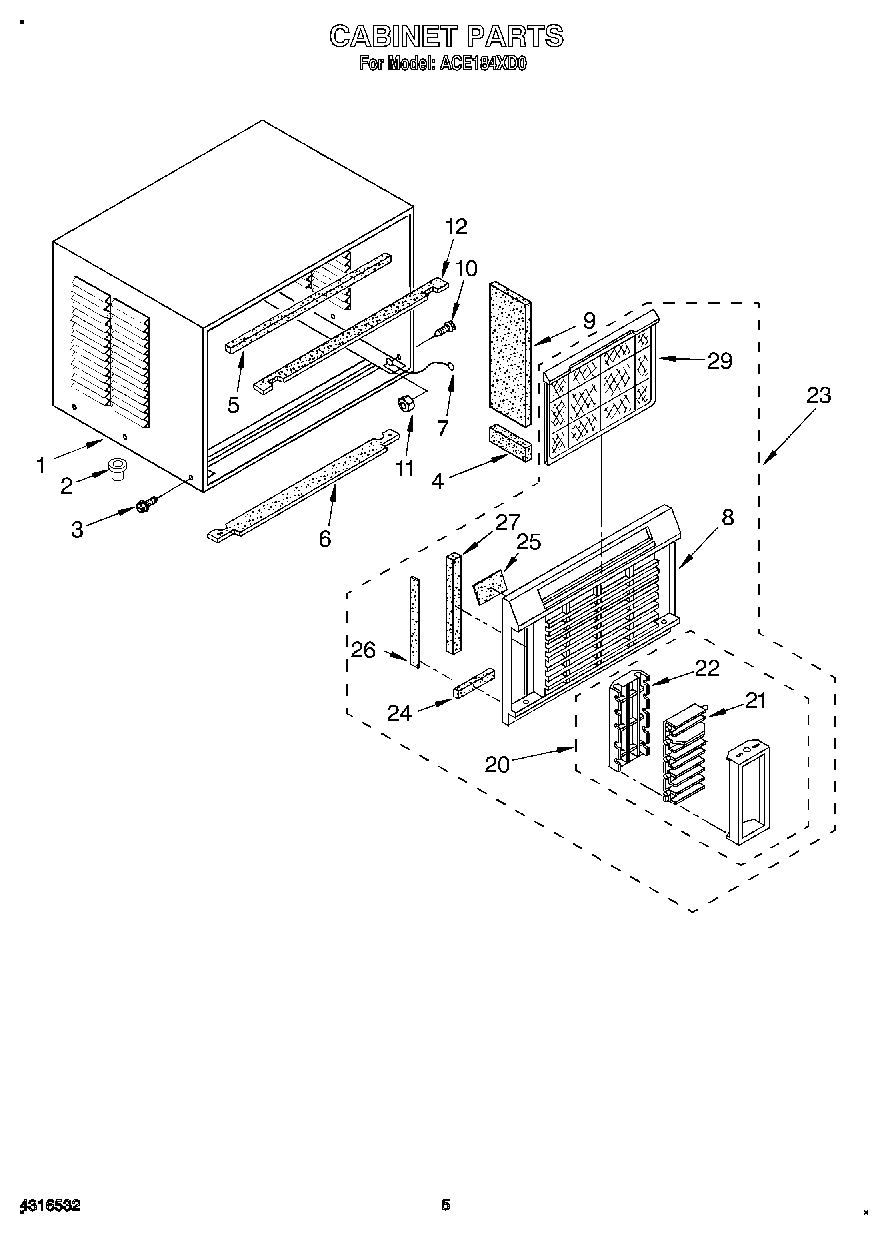

ACE184XD0 03 – CABINET

Products

PositionProduct
1Cabinet
2Cup, Condensate Drain
3WP489069 Whirlpool Compactor Screw
4Insulation, Cabinet Side (2)
5Seal, Top
6Seal
7Wire, Ground
8Cabinet Front
9Insulation, Cabinet Side (2)
10WP488234 Whirlpool Air Conditioner Screw
11WP486255 Whirlpool Air Conditioner Nut
12Seal
20Cartridge, Complete
21Horzontal Louver
22Ribs, Vertical
23Front, Complete
24Seal (Right Side)
24Seal (Left Side)
25Seal (Right Side)
25Seal (Left Side)
26WP854334 Whirlpool Air Conditioner Sealing Strip
27Seal (2)
29Filter
