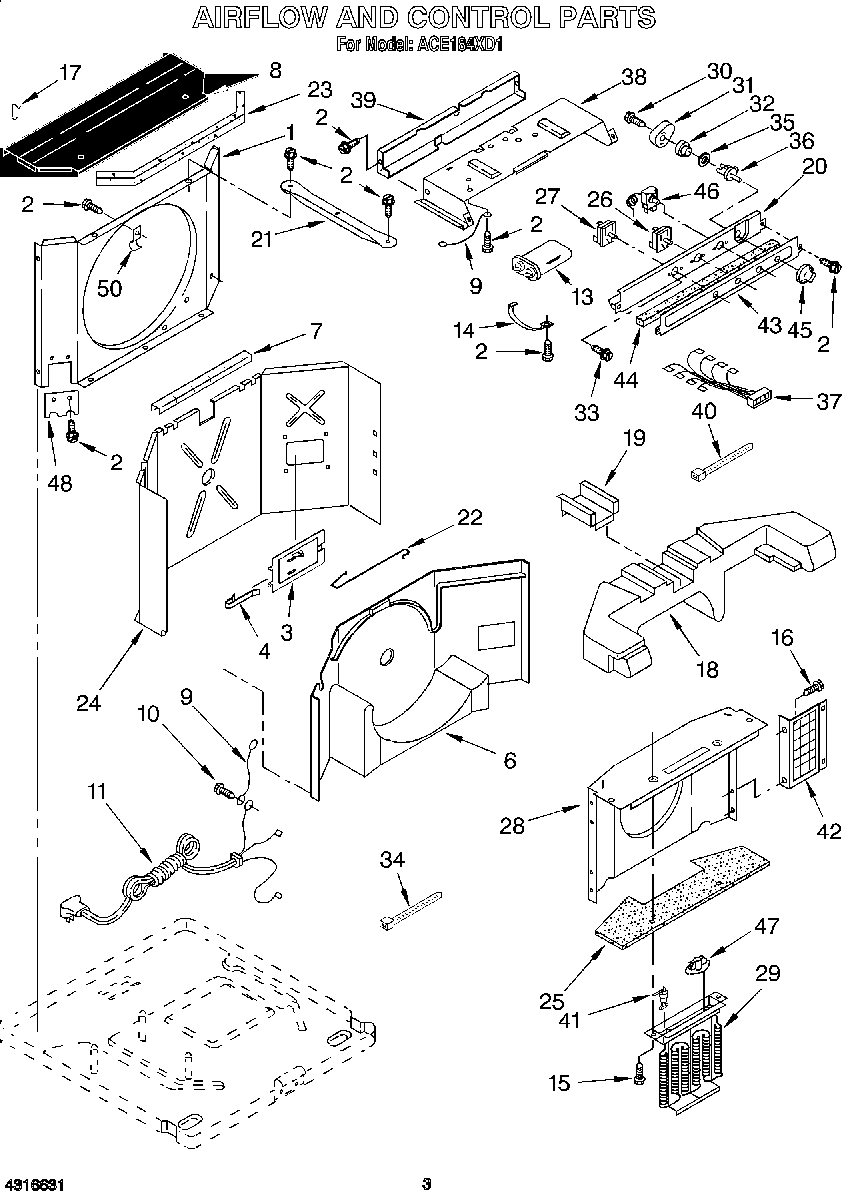

ACE184XD1 02 – AIRFLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	WP489069 Whirlpool Compactor Screw
3	Door, Exhaust
4	Spring, Door
6	Scroll (Lower)
7	Grommet, Divider Wall
8	Top, Condenser
9	Wire, Ground
10	WP488234 Whirlpool Air Conditioner Screw
11	Cord, Appliance
13	Capacitor, Running
14	Bracket, Capacitor
16	Screw, 8-18 x 3/8
17	Clip, Shroud (2)
18	Scroll, Upper
19	Raceway, Wiring
20	Panel, Control
21	Support, Unit (2)
22	Wire, Control
23	Seal, Shroud
24	Dividing Wall
25	Evap Shroud Seal
26	Switch, Fan
27	Switch, Rotary
28	Shroud Assembly, Evaporator
29	Element, Heating
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	WPW10339879 Whirlpool Wire Tie
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring (Control Box)
38	Box, Control
39	Back Panel, Control Box
41	Fuse, Link
42	Impeller Guard (2)
43	Escutcheon
44	WP854334 Whirlpool Air Conditioner Sealing Strip
45	Knob, Controls (4)
46	Control, Temperature
47	Limit Switch
48	Clip, Nylon
50	Clip, Wet Loop
