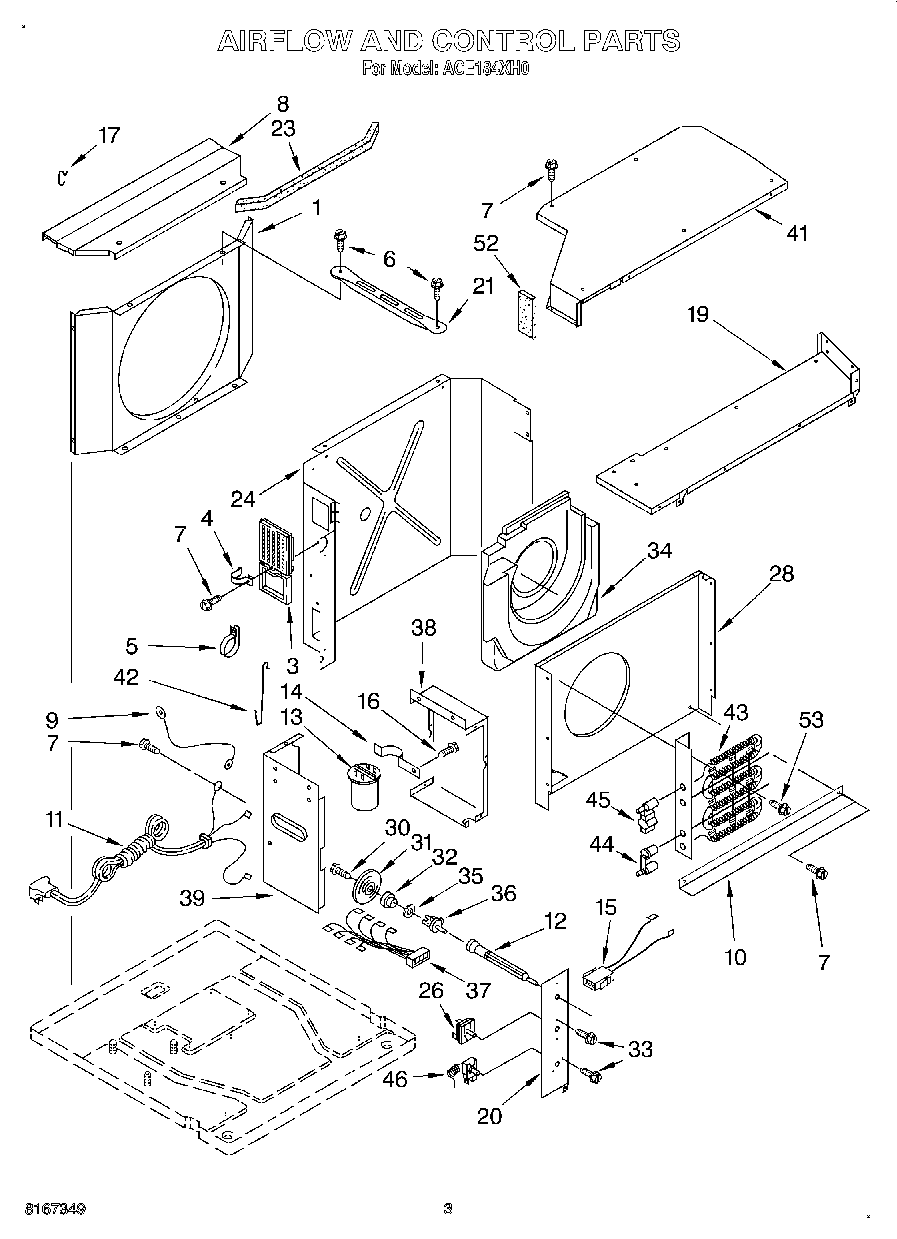

ACE184XH0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
3	Door, Air (2)
4	Spring, Door (2)
5	Clamp, Wiring
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
9	Wire, Ground
10	Sheild, Heat
11	Cord, Appliance
12	Control, Shaft
13	Capacitor, Running
14	Bracket, Capacitor
15	Harness, Heater
16	WP488787 Whirlpool Refrigerator Screw
17	Clip, Shroud (2)
19	Evap. Shroud Top
20	Panel, Control
21	Support, Unit (2)
23	Seal, Shroud
24	Dividing Wall
26	Switch Rotary
28	Shroud Assembly, Evaporator
30	Screw, 7-18 x 5/8
31	Cam, Exhaust
32	Bushing, Shaft
33	Screw, 6-32 x .175
34	Housing, Air
35	Washer
36	Shaft, Control Exhaust
37	Harness, Wiring (Control Box)
38	Control Box (R.S.)
39	Control Box (L.S.)
41	Cover, Top
42	Wire, Control Exhaust
43	Element, Heating
44	Fuse, Link
45	Switch, Limit
46	Control, Temperature
52	Seal, Anti-Rub
53	WP489069 Whirlpool Compactor Screw
