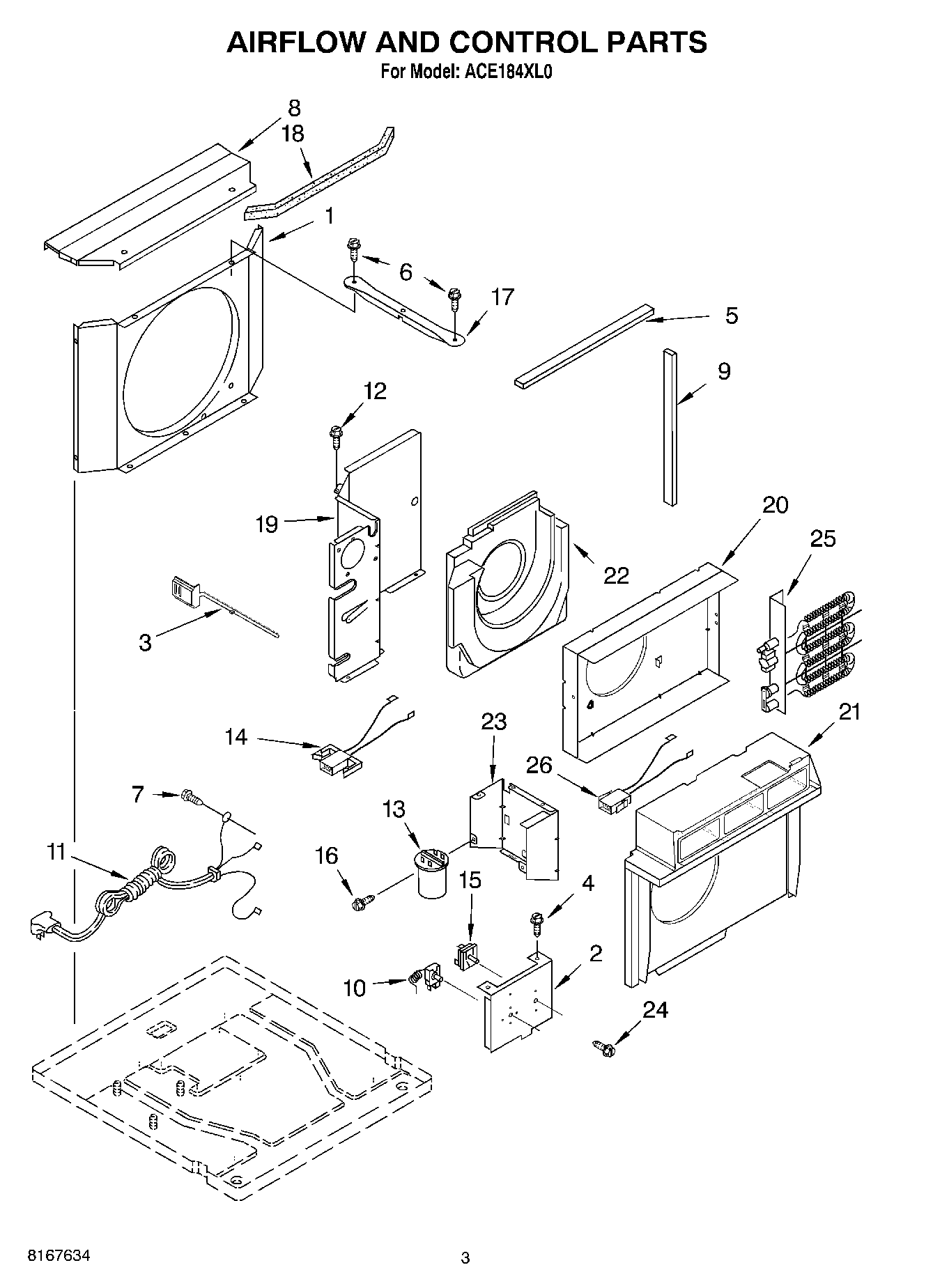

ACE184XL0 02 – AIR FLOW AND CONTROL

Products

Position	Product
1	Shroud, Condenser
2	Panel, Control
3	Door, Exhaust
4	Screw 8-18 x .295
5	Seal (Top)
6	WP308685 Whirlpool Microwave Screw
8	Top, Condenser
9	Seal (Side)
10	Thermostat
11	Cord, Appliance
12	Screw, 8 x 3/8
13	Capacitor, Running
14	Harness, Heater
15	Switch, Rotary
16	WP489069 Whirlpool Compactor Screw
17	Support, Unit (2)
18	Seal, Shroud
19	Dividing Wall
20	Evaporator Shroud
21	Shroud Assembly, Evaporator
22	Housing, Air
23	Control Box
24	Screw, 6-32 x .175
25	Element, Heating
26	Harness, Heater
