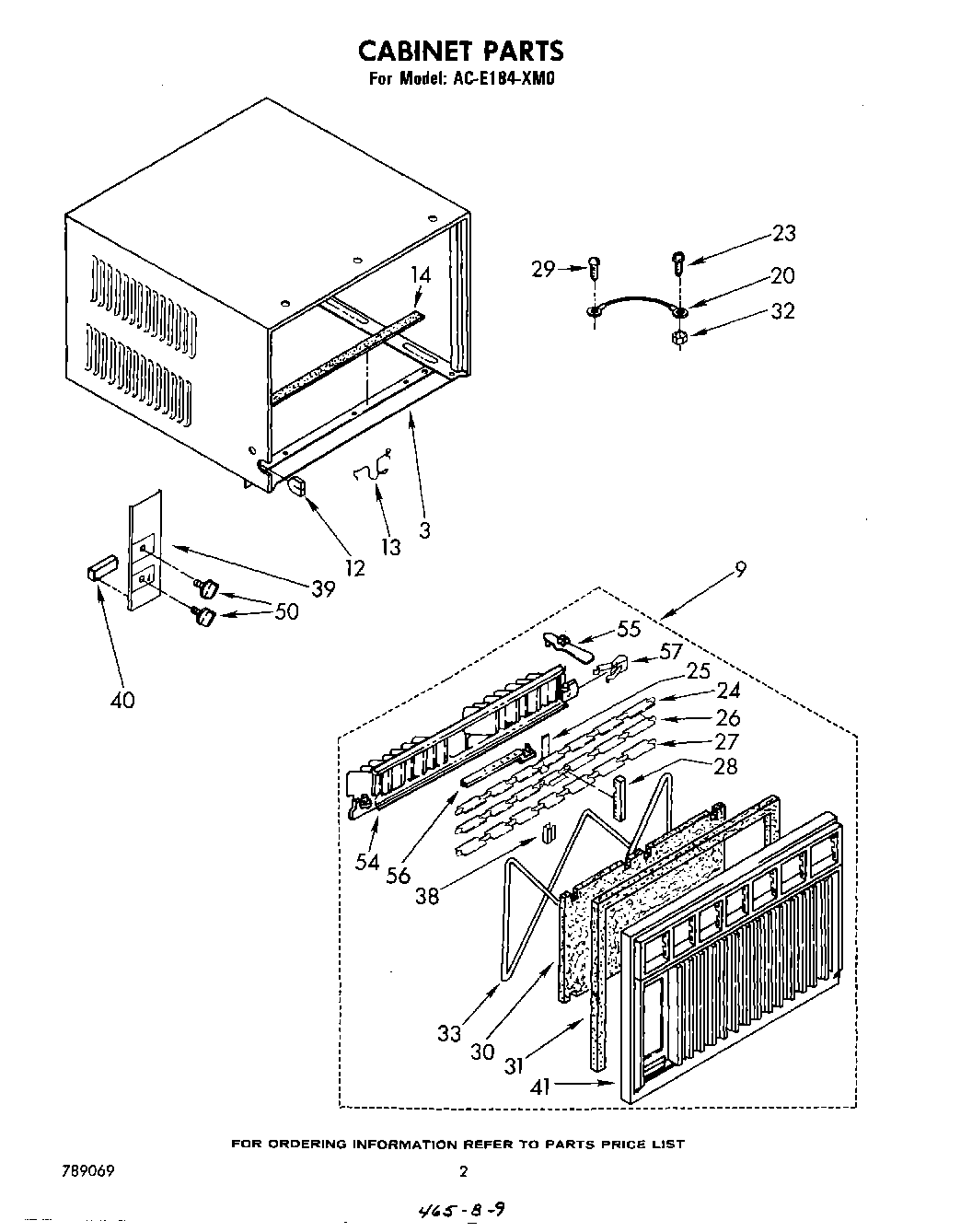

ACE184XM0 02 – CABINET PARTS

ACE184XM0 02 – CABINET PARTS

Written by

in

ACE184XM0 02 – CABINET PARTS

Products

PositionProduct
3Cabinet Also order Insulation NO.1157053 (3)
9Front, Cabinet (Complete)
12Grommet, Appliance Cable
13Clip, Mtg. (3)
14Seal, Bottom
20Ground Wire (Base To Cabinet)
23Screw, 8 x 3/8
24Louver, Horizontal (4)
25Retainer (4)
26Louver, Horizontal (Handle)
27Louver, Horizontal (Relieved)
28Rack, Louver (2)
29Screw, 8 x 3/8
30Filter, Air
31Seal, Front (Bottom)
31Seal, Front (Top & Sides)
32WP486255 Whirlpool Air Conditioner Nut
33Retainer, Filter
38Clip, Retainer (4)
39Plate, Escutcheon
40Spacer, Escutcheon Plate (2)
41Frame, Front
50Knob, Control
54Louver, Vertical
55Handle, Vertical Louver (2)
56Link, Vertical Louver (2)
57Detent Spring (2)
