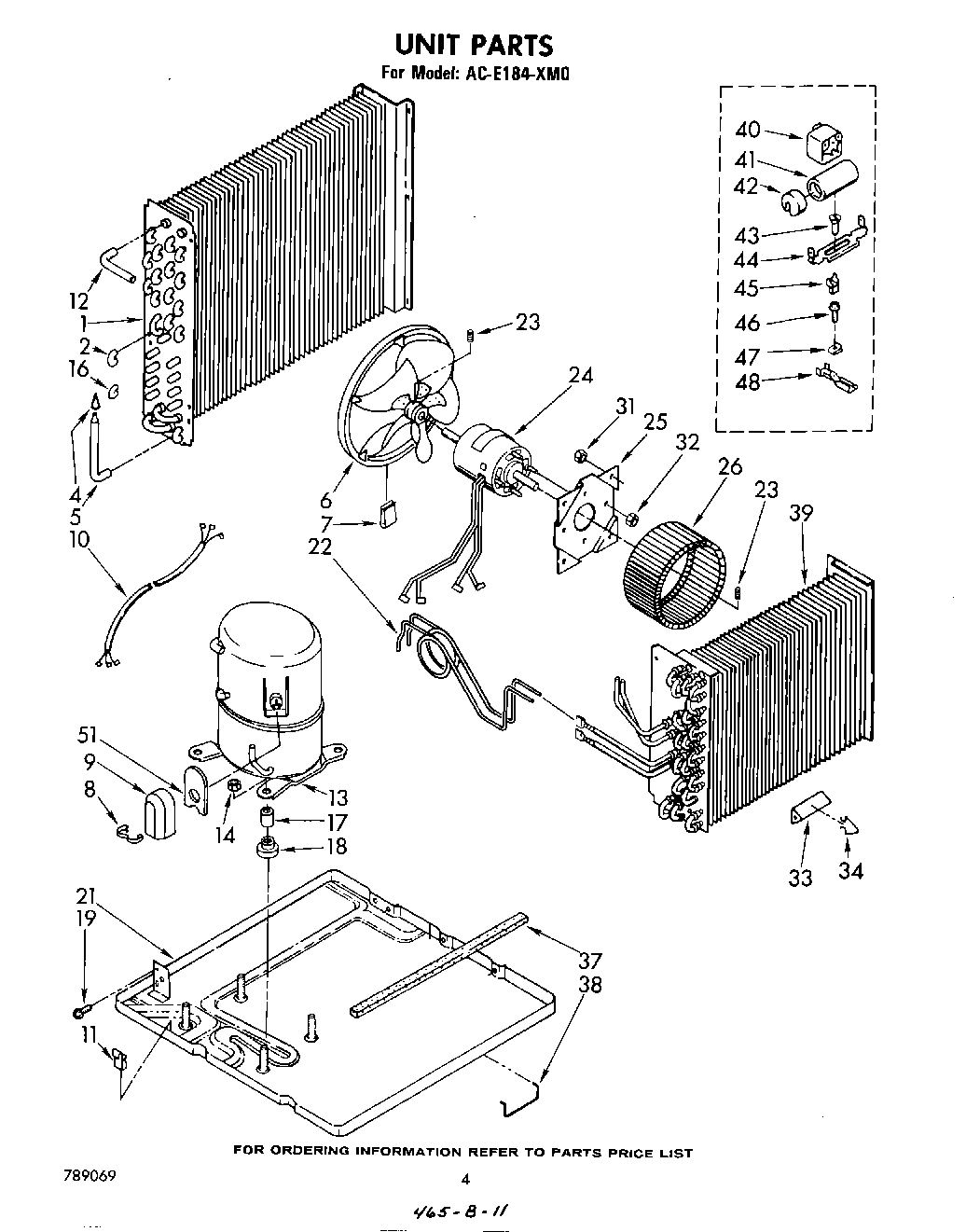

ACE184XM0 03 – UNIT PARTS

Products

Position	Product
1	Condenser
2	Bend, Return Evaporator (11)
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Blade, Fan
7	Clip, Balancing
8	Strap, Terminal Cover
9	Cover, Terminal
10	Harness, Wiring
11	Clamp (2)
12	Tube, 90~ Connect
13	Compressor
14	Locknut (3)
16	WP855199 Whirlpool Bend Return
17	Sleeve (4)
18	Grommet (4)
19	WP488729 Whirlpool Refrigerator Door Screw
21	Base
22	Tube, Restrictor (41.0 Length) (2)
23	Setscrew, 5/16 x 1/4
24	WPL 947215
25	WPL 998024
26	Wheel, Blower
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
37	Seal
38	WPL 647971
39	Evaporator
40	Relay (Component Of Start Kit)
41	Capacitor (Component Of Start Kit)
42	Cap, Capacitor (Component Of Start Kit)
43	Screw, 10 x 5/8 (Component Of Start Kit)
44	xMultiplier, Terminal
45	Multiplier, Terminal (Component Of Start Kit)
46	WP965173 Whirlpool Dishwasher Screw
47	488660 Whirlpool Refrigerator Nut
48	Clip, Terminal (Component Of Start Kit)
51	WPL 484220
51	VALVE, ACCESS (5/8``)
51	Kit, Evaporator Repair (Aluminum Epoxy)
51	978026 Whirlpool Refrigerator Primary Valve
51	Gasket, Terminal
51	978027 Whirlpool Refrigerator Primary Valve
51	978030 Whirlpool Refrigerator Valve
51	Oil, Turbine 1 Fl. Oz.
51	VALVE, ACCESS (1/2``)
51	WPL 485883
51	WP978025 Whirlpool Refrigerator Valve
51	No Drip Tape (For Sweating Tubes)
