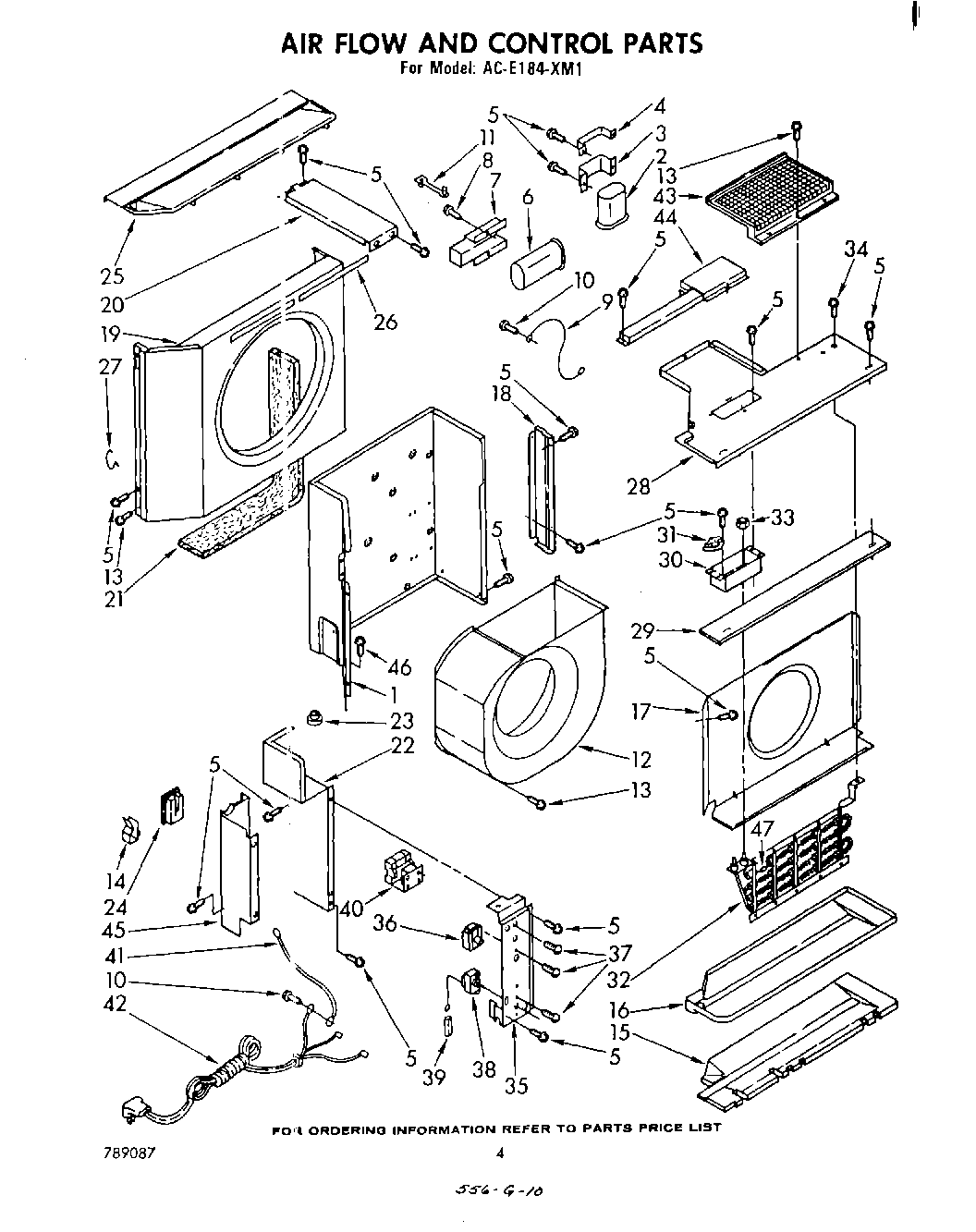

ACE184XM1 03 – AIR FLOW AND CONTROL , LIT/OPTIONAL

Products

Position	Product
	WPL LIT951160
	WPL 677821
	WPL 677818
	WPL 677813
	WPL 677967
	Guide, Use And Care
	WPL LIT789087
	WPL LIT951011
1	Wall, Dividing (Requires 649939 Insulation)
2	WPL 951516
3	Bracket (Lower)
4	Bracket (Upper)
5	WP489069 Whirlpool Compactor Screw
5	WP308685 Whirlpool Microwave Screw
6	Capacitor, Fan Motor
7	Bracket, Fan Motor Capacitor
9	Wire, Ground (2)
10	WPW10141604 Whirlpool Screw
11	Clamp, Cable
12	Housing, Blower Wheel
13	WP488729 Whirlpool Refrigerator Door Screw
14	Clamp, Cable
15	Insulation, Pan
16	Pan, Condensate
17	Deflector, Heater
18	Plate, Adapter
19	Shroud (Requires Insulation No. 469938)
20	Support, Unit
21	Seal, Condenser Fin
22	Extension, Dividing Wall
23	Bushing
24	Seal, Tube
25	Cover, Condenser Shroud
26	seal, strip (shroud) (side)
26	WP854334 Whirlpool Air Conditioner Sealing Strip
27	Clip, Shroud (2)
28	Cover, Evaporator
29	Insulation, Cover
30	Bracket, Heater
31	Switch, Limit
32	Heater, Air
33	WP488826 Whirlpool Nut
34	WP488234 Whirlpool Air Conditioner Screw
35	Panel, Control
36	WPL 950526
37	Screw, 6-32 x .175
38	Control, Temperature
39	Sleeve, Insulator
40	Contactor
41	Wire, Ground
42	Cable, Appliance
43	Guard, Evaporator Impeller
44	Cover, Heater
45	Cover, Control Access
46	Screw, 8 x 3/8
47	Insulation, Base
47	Fuse, Heater
47	212643 Whirlpool Refrigerator Permagum Sealer
47	Cover, Winter (27 x 19 x 6 to 27“)
47	WPL 854937
47	WP279368 Whirlpool High-Temperature Silicone Rubber Adhesive
47	WPL 854938
47	Wire, 25“ Roll (White 12 GA.)
47	Wire, 25“ Roll (Black 12 GA.)
47	WPL 855438
47	Wire, Red, (25 Ft.)
47	Lacquer, Starlight Gray (1/2 Pt. Uncut)
