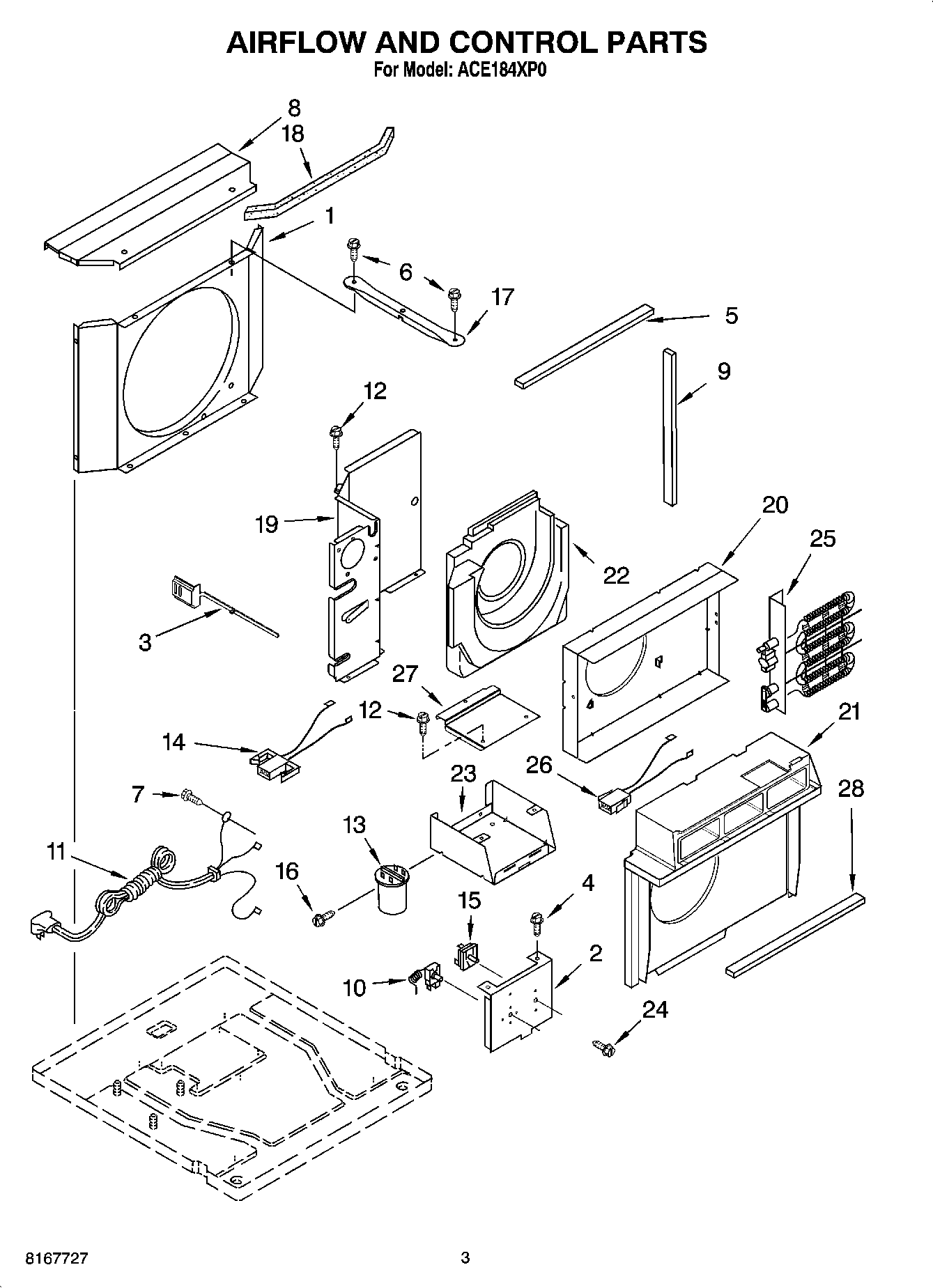

ACE184XP0 02 – AIRFLOW AND CONTROL PARTS

Products

Position	Product
1	Shroud, Condenser
2	Panel, Control
3	Door, Exhaust
4	Screw 8-18 x .295
5	Seal (Top)
6	WP308685 Whirlpool Microwave Screw
7	WP489069 Whirlpool Compactor Screw
8	Top, Condenser
9	Seal (Side)
10	Thermostat
11	Cord, Appliance
12	Screw, 8 x 3/8
13	Capacitor
14	Harness, Heater
15	Switch, Rotary
16	WP489478 Whirlpool Refrigerator Screw
17	Support, Unit (2)
18	Seal, Shroud
19	Dividing Wall
20	Evaporator Shroud
21	Shroud Assembly, Evaporator
22	Housing, Air
23	Control Box
24	Screw, 6-32 x .175
25	Element, Heating
26	Plug, Heater Harness
27	Cover, Control Box
28	Seal, Front Large
