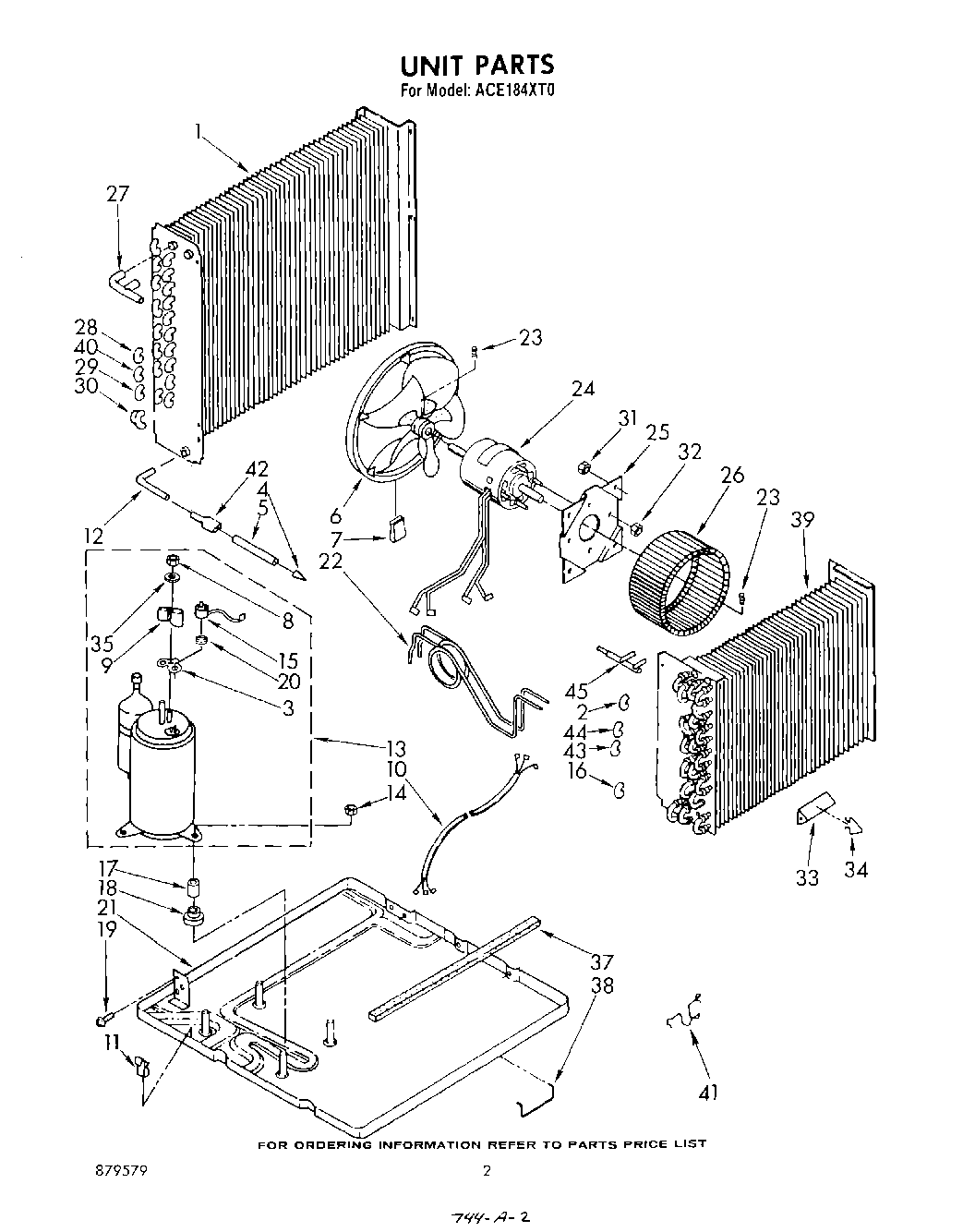

ACE184XT0 02 – UNIT

Products

Position	Product
	Guide, Energy
	Sheet, Tech And Wiring Diagram
	Guide, Use And Care
	List, Repair Parts
1	Condenser
2	Bend, Return Evaporator (11)
3	WP950035 Whirlpool Cover Gasket
4	Strainer
5	Tube & Strainer (Includes Item 23)
6	Blade, Fan
7	Clip, Balancing
9	WP950036 Whirlpool Cover Assembly
10	Harness, Wiring
11	Clamp, Restrictor Tube
12	Tube, Connecting
13	Compressor
14	Locknut (3)
15	WP1161170 Whirlpool Air Conditioner Overload
16	WP855199 Whirlpool Bend Return
17	Sleeve (3)
18	WP950021 Whirlpool Grommet
19	WP488729 Whirlpool Refrigerator Door Screw
20	Spring, Overload
21	Base
22	Tube Restrictor (3) (Length 46.0“)
23	Setscrew, 5/16 x 1/4
24	Motor, Fan
25	WPL 998024
26	Wheel, Blower
27	Tube, Manifold
28	Bend, Return Condenser (10)
29	Bend, Return Condenser (4)
30	Bend, 3-Way
31	Nut, Hex (4)
32	WP488130 Whirlpool Air Conditioner Nut
33	Anticipator
34	Clip (2)
35	Gasket, Nut
37	Seal
38	WPL 647971
39	Evaporator
40	Tube, Riser (2)
41	Clip, Mtg. (3)
42	Tube, Flow Divider
43	Bend, Return
44	Bend, Return
45	Tube, Manifold
